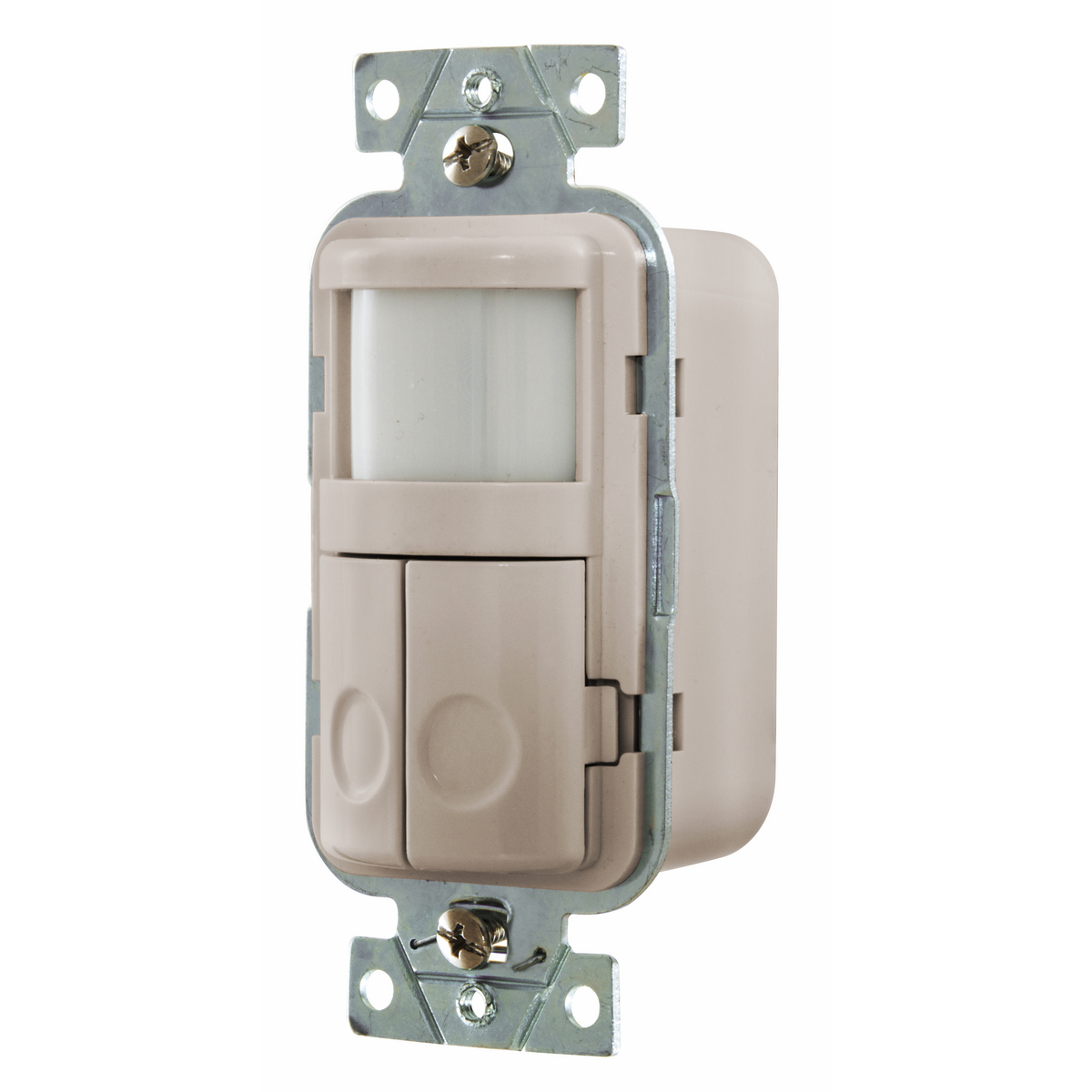

WS1021LA 2-Circuit Adjustable Wall Switch Sensor, 120 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage

MFR:
Hubbell Wiring Device-Kellems
MFR #:
WS1021LA
UPC:
783585428239
Item #:
553330

Availability

Location Available Qty
Available Available to Order

Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.

Manuals and Documentation
Catalog Number WS1021LA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Taiwan, Province Of China
Made in USA No
Application Dual Circuit
Color Light Almond
Connector Terminal Screws
Mounting Screw
Sensing Range 1000 Square Feet
Sensitivity Adjustable
Sensor Passive Infrared
Special Features 2-Circuit
Standard UL/CSA
Supply Voltage 120 AC
UPC 783585428239
GTIN 00783585428239
Item Type Manual
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Operating Temperature 0 Degrees C to 40 Degrees C
