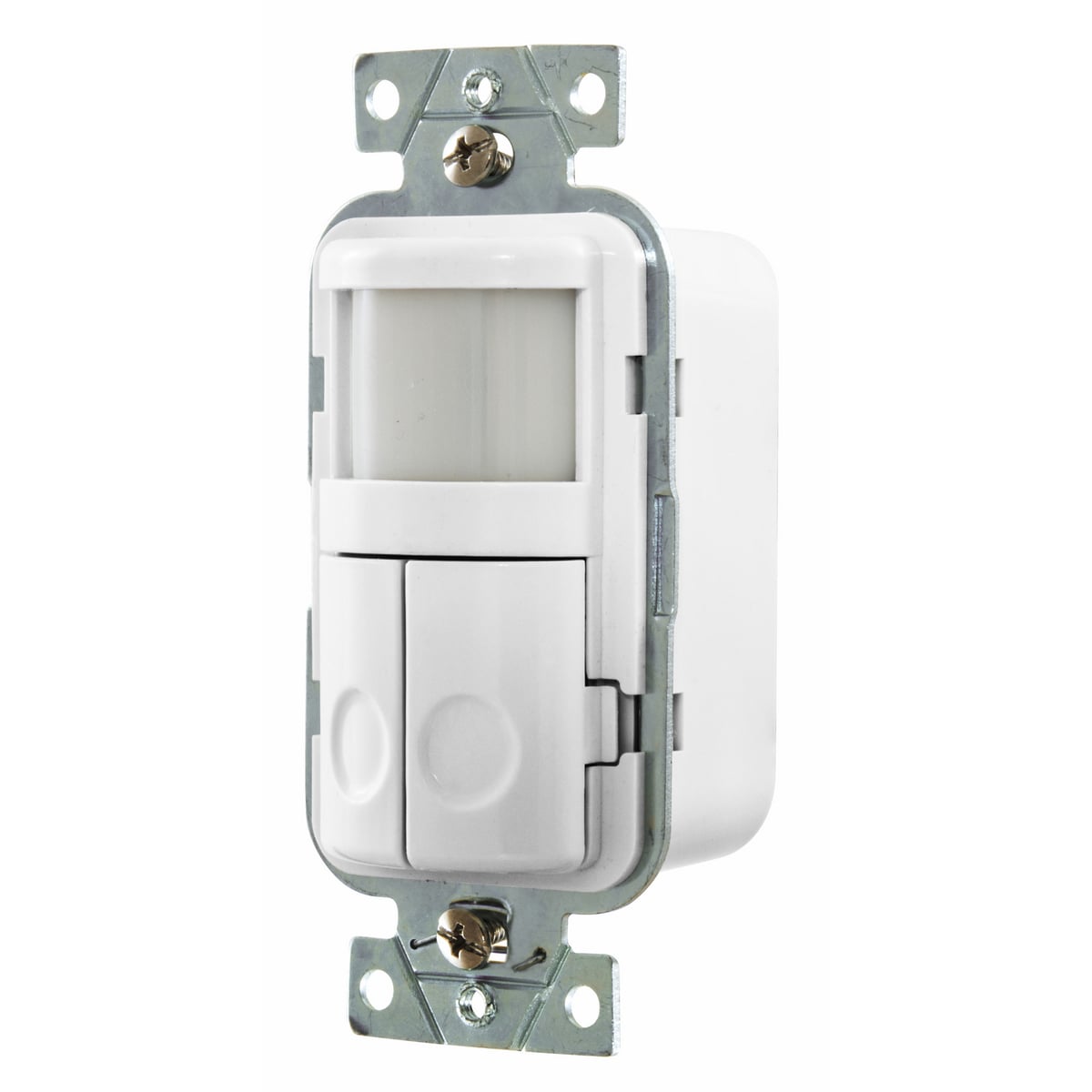

WS1020W WS Series 2-Circuit Occupancy Sensor Switch, 120 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- WS1020W
- UPC:
- 783585428086
- Item #:
- 553318
WS1020W WS Series 2-Circuit Occupancy Sensor Switch, 120 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage
- MFR #:
- WS1020W
- UPC:
- 783585428086
- Item #:
- 553318
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Manuals and Documentation
| Catalog Number | WS1020W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Application | Dual Circuit |
| Color | White |
| Connector | Terminal Screws |
| Mounting | Screw |
| Sensing Range | 1000 Square Feet |
| Sensitivity | Adjustable |
| Sensor | Passive Infrared |
| Special Features | 2-Circuit |
| Standard | UL/CSA |
| Supply Voltage | 120 AC |
| UPC | 783585428086 |
| GTIN | 00783585428086 |
| Item Type | Manual/Auto |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Operating Temperature | 0 Degrees C to 40 Degrees C |
