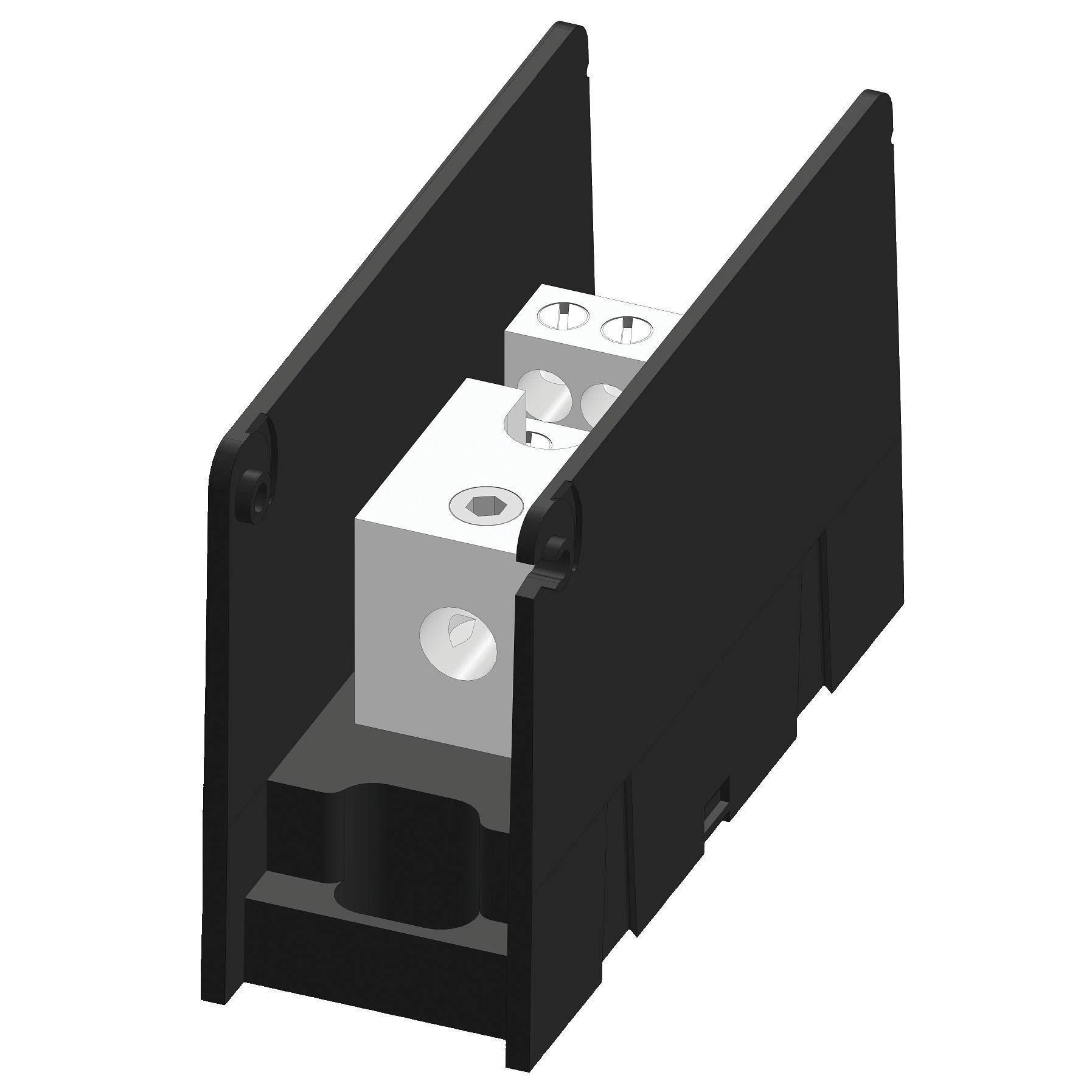

MPDB67461 Intermediate Open Style Power Distribution Block, 600 V AC, 380 A, 1 Pole, 4 AWG to 500 kcmil Wire, Polycarbonate
- MFR:
- MERSEN
- MFR #:
- MPDB67461
- UPC:
- 782001451820
- Item #:
- 552503
MPDB67461 Intermediate Open Style Power Distribution Block, 600 V AC, 380 A, 1 Pole, 4 AWG to 500 kcmil Wire, Polycarbonate
- MFR #:
- MPDB67461
- UPC:
- 782001451820
- Item #:
- 552503
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Manuals and Documentation
Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 4 AWG to 500 kcmil Al line, 14 to 2 AWG Al load
| Manufacturer Part Number | MPDB67461 |
| Stripped Manufacturer Part Number | MPDB67461 |
| Brand | Mersen |
| Manufacturer | MERSEN |
| UPC | 782001451820 |
| Country Of Origin | MX |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 3.25 in H x 1.85 in W x 5 in D |
| Material | Polycarbonate |
| Series | MPDB |
| Type | Intermediate Open Style |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 12172030 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | RoHS Compliant | UL File No. E352417 | CSA Class 6228-01, File No. 069363_0_000 | CE Certified | UL94-V0 Flammability |
| Application | Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off Points |
| Number Of Poles | 1 |
| Primary Connections Pole | 1 |
| Secondary Connection Pole | 6 |
| Short Circuit Current Rating | 100 kA |
| Wire Size | 4 AWG to 500 kcmil |
