Hubbell Wiring Device-Kellems

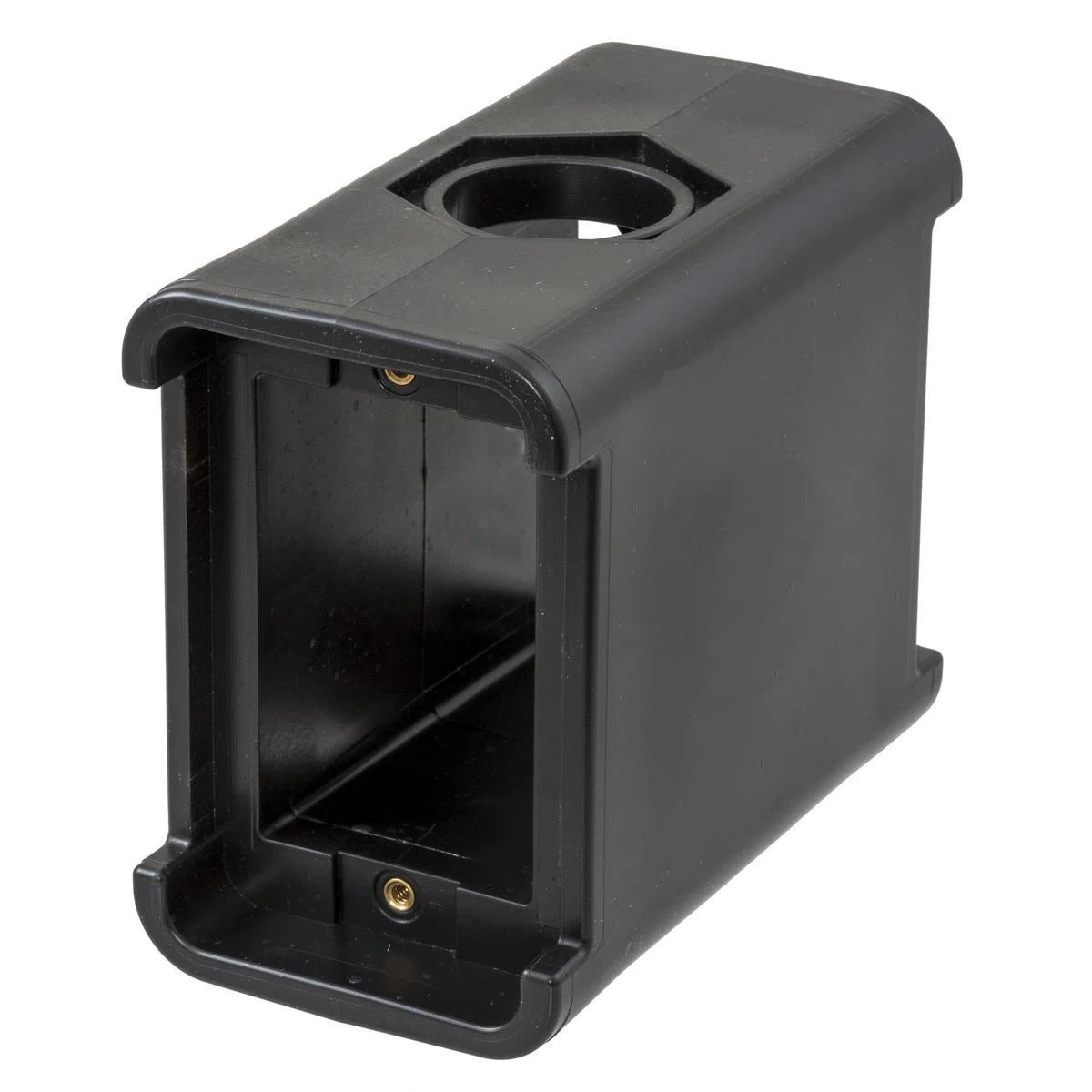

HBL3080BK Blank Configurable Non-Metallic Molded Portable Standard Outlet Box, Thermoplastic/Elastomer, 19 cu-in Capacity, 1 Outlets, 5 in H

MFR:
Hubbell
MFR #:
HBL3080BK
UPC:
783585433837
Item #:
549870

Availability

Location Available Qty
Available 21 ea
$75.86 each

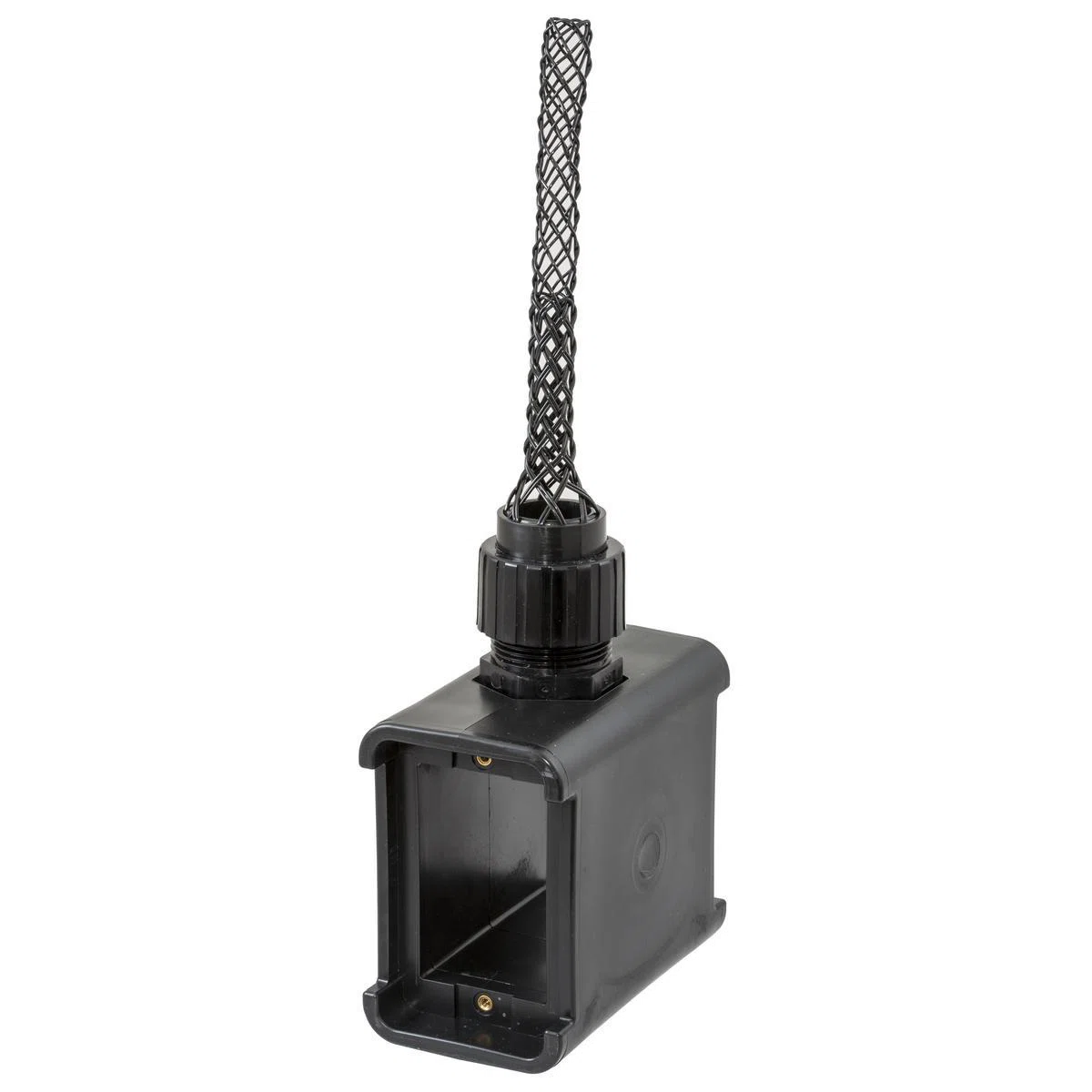

The thermoplastic elastomer material of the portable outlet box provides a strong housing with enough capacity for multiple devices to fit, with cord feed through options available. The impact resistant PBT covers add to the durability of the box and the devices inside. There are several cord connectors available ranging from standard to deluxe, providing unmatched strain relief. The covers provide a UL Type 3R weather resistant seal suitable for wet and damp locations. Portable outlet boxes are available as pre-assembled or can be configured as needed.

Manuals and Documentation

Features

  • Wiring room large enough to accommodate the broadest range of device requirements
  • Brass inserts for maximum strength
Manufacturer Part Number HBL3080BK
Brand Hubbell Wiring Device-Kellems
Manufacturer Hubbell
UPC 783585433837
Country Of Origin US
Capacity 19 cu-in
Color Yellow
Dimensions 5 in H
Enclosure Type NEMA 3R/IP44
Material Thermoplastic/Elastomer
Mounting Type Threaded
Temperature Rating -40 to 60 deg C
Type Blank Configurable Non-Metallic Molded Portable Standard
Number Of Outlets 1
Alternative Part Number 13206589
Manufacturer Item Status Active
Country USA
Warranty Limited
Standards Approvals UL 514C | CSA Certified | ANSI Specified | NEMA WD1/WD6 | UL94 V-0 Flammability Rating
Application Watertight Devices, Industrial, Commercial, Wet and Damp Locations
Includes Locknut
Knockout Size 3/4 in
Mounting Orientation Threaded
