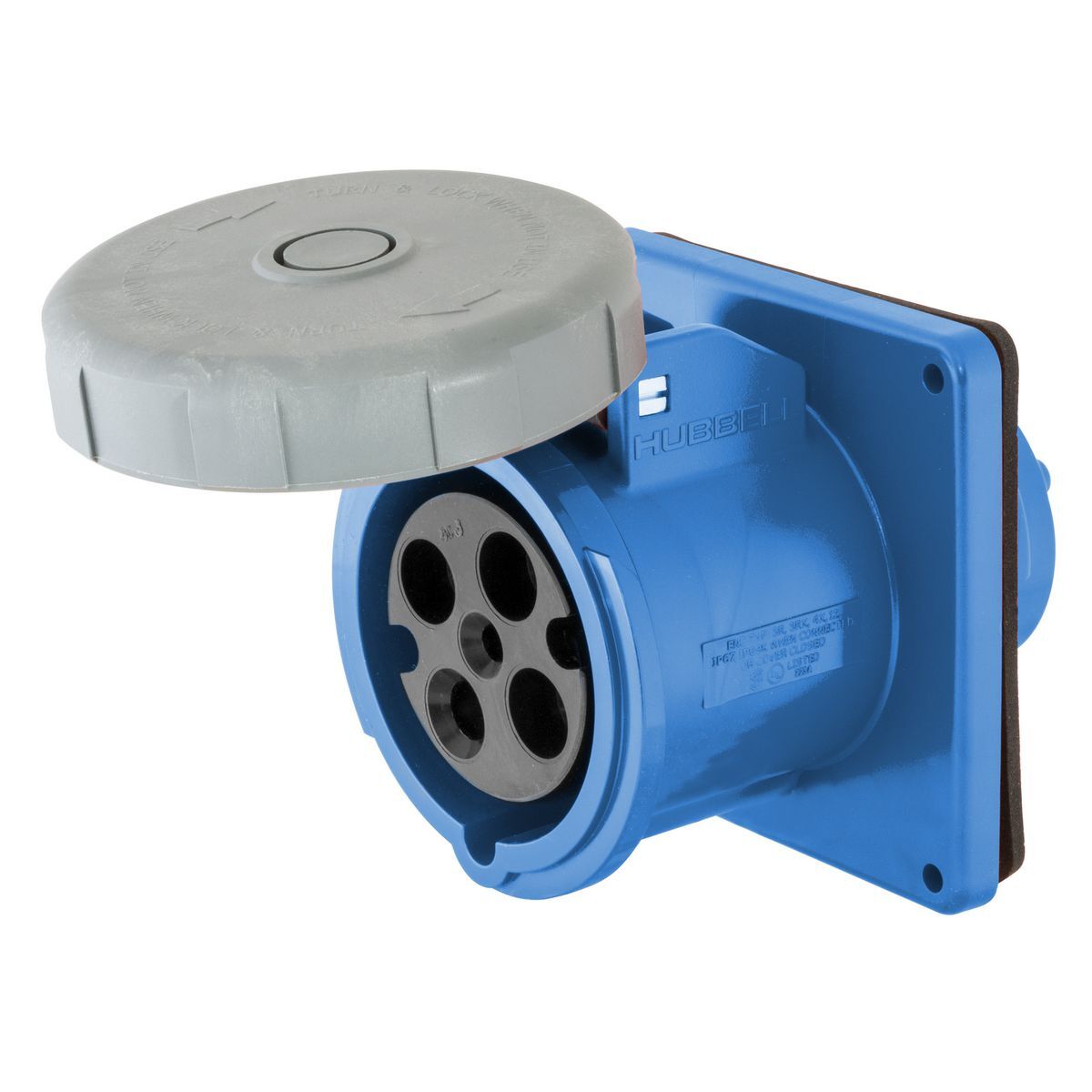

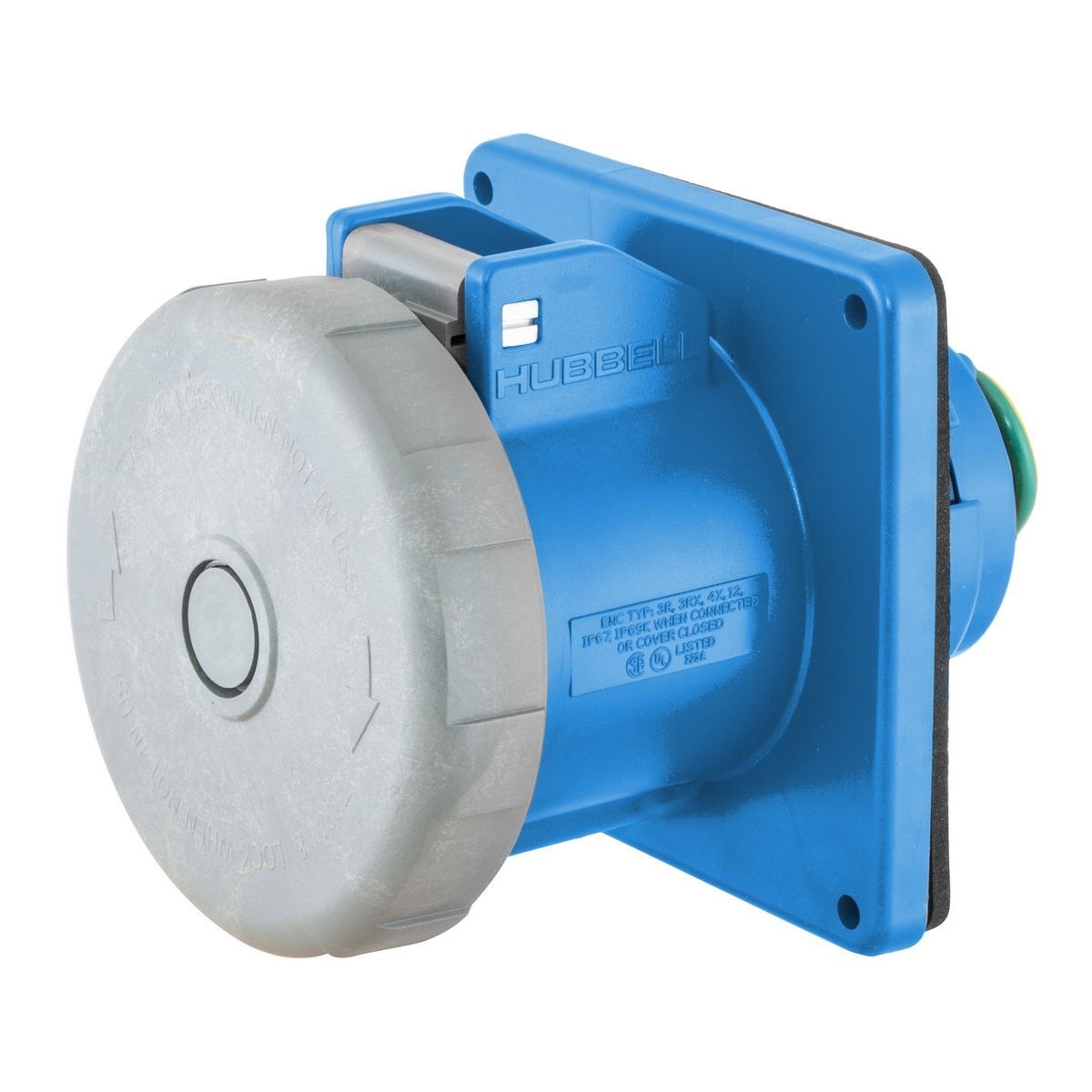

HBL420R9W 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 250 V AC, 20 A, 3 Poles, 4 Wires, Blue
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL420R9W
- UPC:
- 783585404448
- Item #:
- 54800
HBL420R9W 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Receptacle, 250 V AC, 20 A, 3 Poles, 4 Wires, Blue
- MFR #:
- HBL420R9W
- UPC:
- 783585404448
- Item #:
- 54800
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.
Manuals and Documentation
| Catalog Number | HBL420R9W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | High Ampacity Watertight Connections |
| Color | Blue |
| Connection | Pressure Screw Terminals |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Watertight |
| Standard | CSA StandardC22.2 No. 182.1;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032 |
| UPC | 783585404448 |
| GTIN | 00783585404448 |
| Item Type | Watertight Receptacle |
| Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Voltage Rating | 3 Phase 250 |
| Wattage | 5,000 |
| Wire Size | #14 AWG to #10 AWG |
