Telemecanique

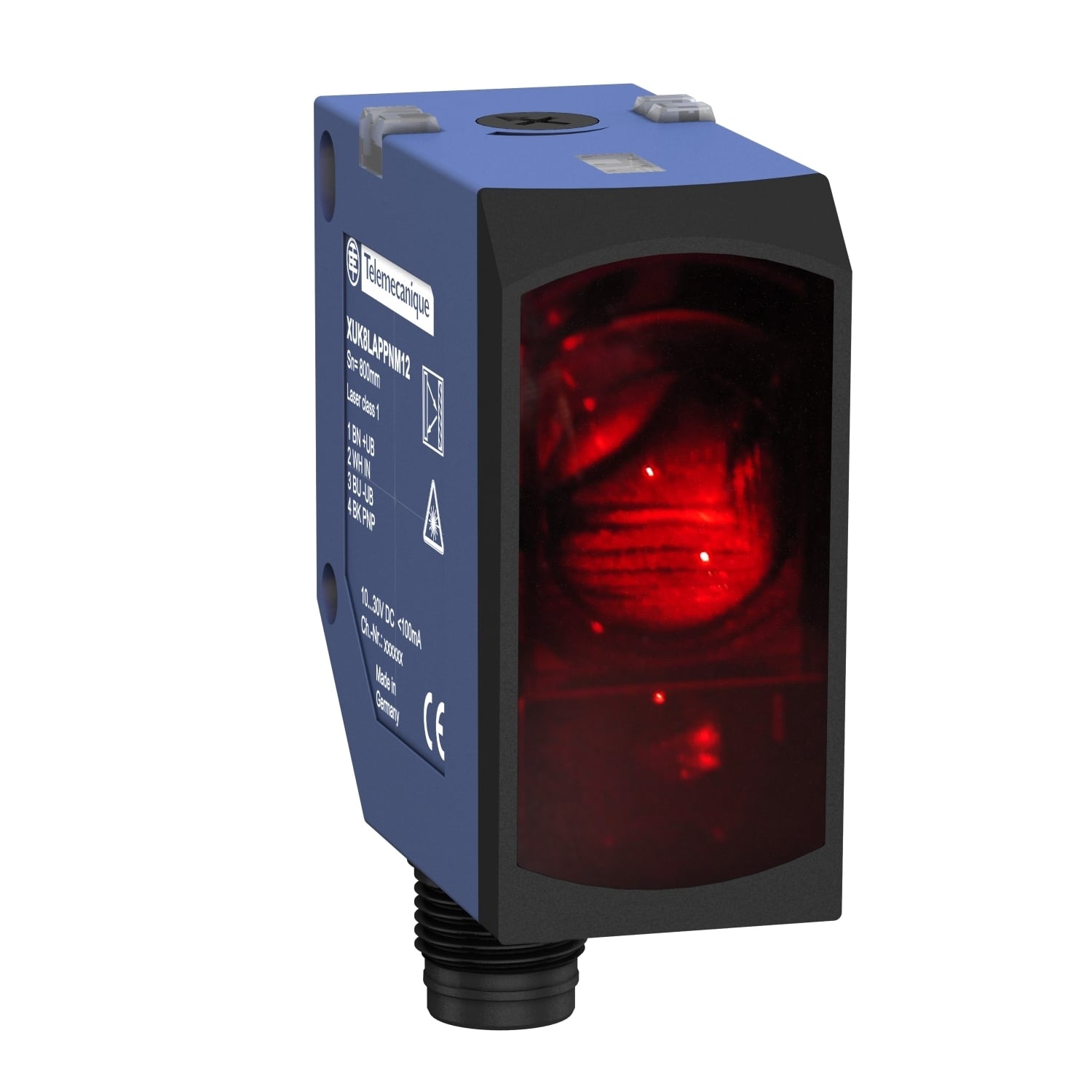

XUK8LAPPNM12 OsiSense XU Simply Easy 4-Wire Compact Photoelectric Sensor With Reverse Polarity Protection and Background Suppression, 0.8 m, Infrared Sensing Beam, &lt0.5 ms Response, PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUK8LAPPNM12
Item #:
547243

Availability

Location Available Qty
Available Available to Order
$845.89 each

This photo-electric sensor is part of the XU Application, single mode range. It is designed for assembly applications. It is a compact design 50mm x 50mm, plastic sensor with an M12, 4-pin connector. ECOLAB certified, this sensor is suitable for food and beverage applications. Diffuse system with backgroung suppression, class 1 red laser transmission. Sensing distance from 5mm to 800mm, according to the colour of the object to be detected.

Manuals and Documentation
Catalog Number XUK8LAPPNM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection 1 male connector M12, 4 pins
Enclosure ABS/PC,IP67 CONFORMING TO IEC 60529-IP69K CONFORMING TO DIN 40050
Operating Cycles <= 250 Hz
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 0.8-0.8 M DIFFUSE WITH BACKGROUND SUPPRESSION,> 0.98...3.28 FT (> 0.3...1 M)
Special Features 1 LED yellow)output state;1 LED green/yellow)supply on/output state
Standard IP67 IEC 60529-IP69K DIN 40050,CULUS-ECOLAB-CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150036499&lang=en-us
GTIN 03389119077583
Item Type Application assembly;Application material handling;Diffuse with background suppression;Compact 50 x 50;Photo-electric sensor
Size 1.97
Operating Temperature -20-50 A Degrees C, UL--20-60 A Degrees C DISCRETE OUTPUT
Voltage Rating 24 V DC reverse polarity protection
