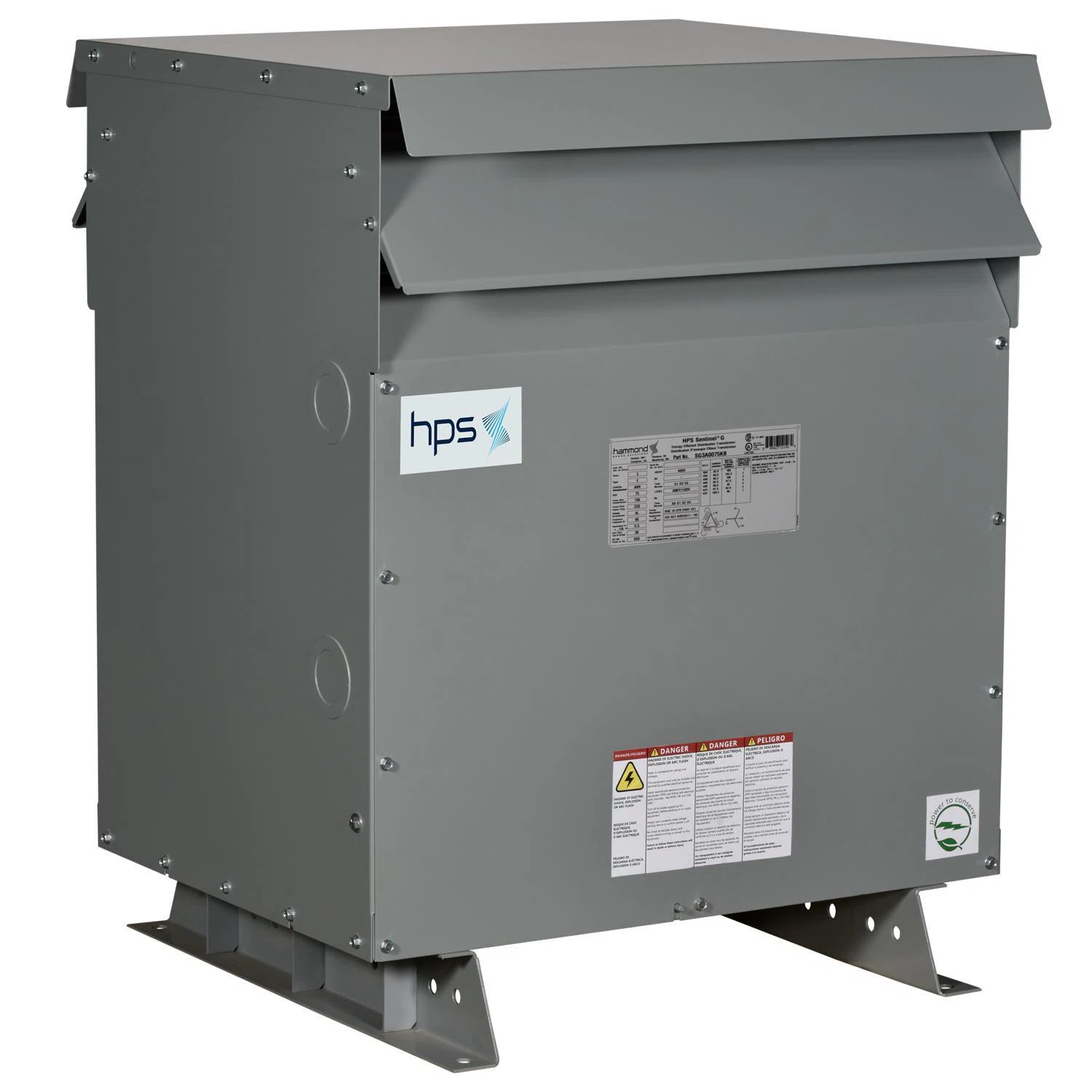

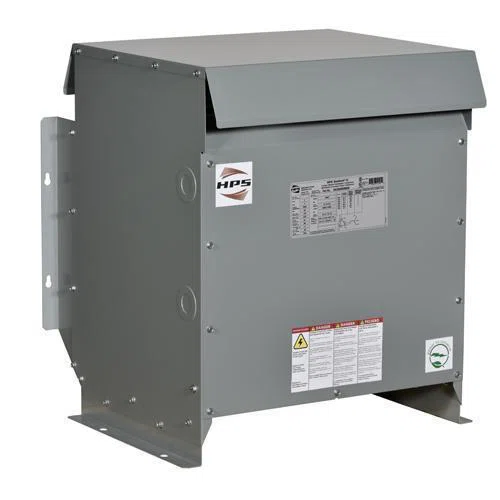

SG3A0045KK Sentinel G Energy Efficient General Purpose Distribution Transformer, 480 Delta V AC Primary, 480Y/277 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- SG3A0045KK
- UPC:
- 803423124755
- Item #:
- 546586
SG3A0045KK Sentinel G Energy Efficient General Purpose Distribution Transformer, 480 Delta V AC Primary, 480Y/277 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- SG3A0045KK
- UPC:
- 803423124755
- Item #:
- 546586
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$9,422.35
each
HPS Sentinel® G general purpose distribution transformers are rated for 600 VAC and below. They are generally used for supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems.
Manuals and Documentation
Features
- HPSgeneral purpose distribution transformers are rated for 600 V and below
- HPS also offers a line of low voltageSmart Transformerswith integrated power monitoring for enhanced energy management and real-time performance insights
| Manufacturer Part Number | SG3A0045KK |
| Brand | HPS |
| Manufacturer | Hammond Power Solutions |
| UPC | 803423124755 |
| Country Of Origin | CA | IN | MX | US |
| Dimensions | 23.8 in L x 25.8 in W x 28.8 in H |
| Enclosure Type | DH2-N3R - Indoor/Outdoor |
| Mounting Type | Ceiling/Floor |
| Series | Sentinel® G |
| Temperature Rating | 30 deg C |
| Type | Energy Efficient General Purpose |
| Alternative Part Number | 13756296 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 10 year warranty |
| Standards Approvals | RoHS Compliant | UL File No.E112313 | CSA File No. LR3902 |
| Application | Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System Applications |
| Connection Type | Lug/Pad |
| Efficiency | 98.4 % |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 45 |
| Primary Voltage | 480 Delta V AC |
| Secondary Voltage | 480Y/277 V AC |
