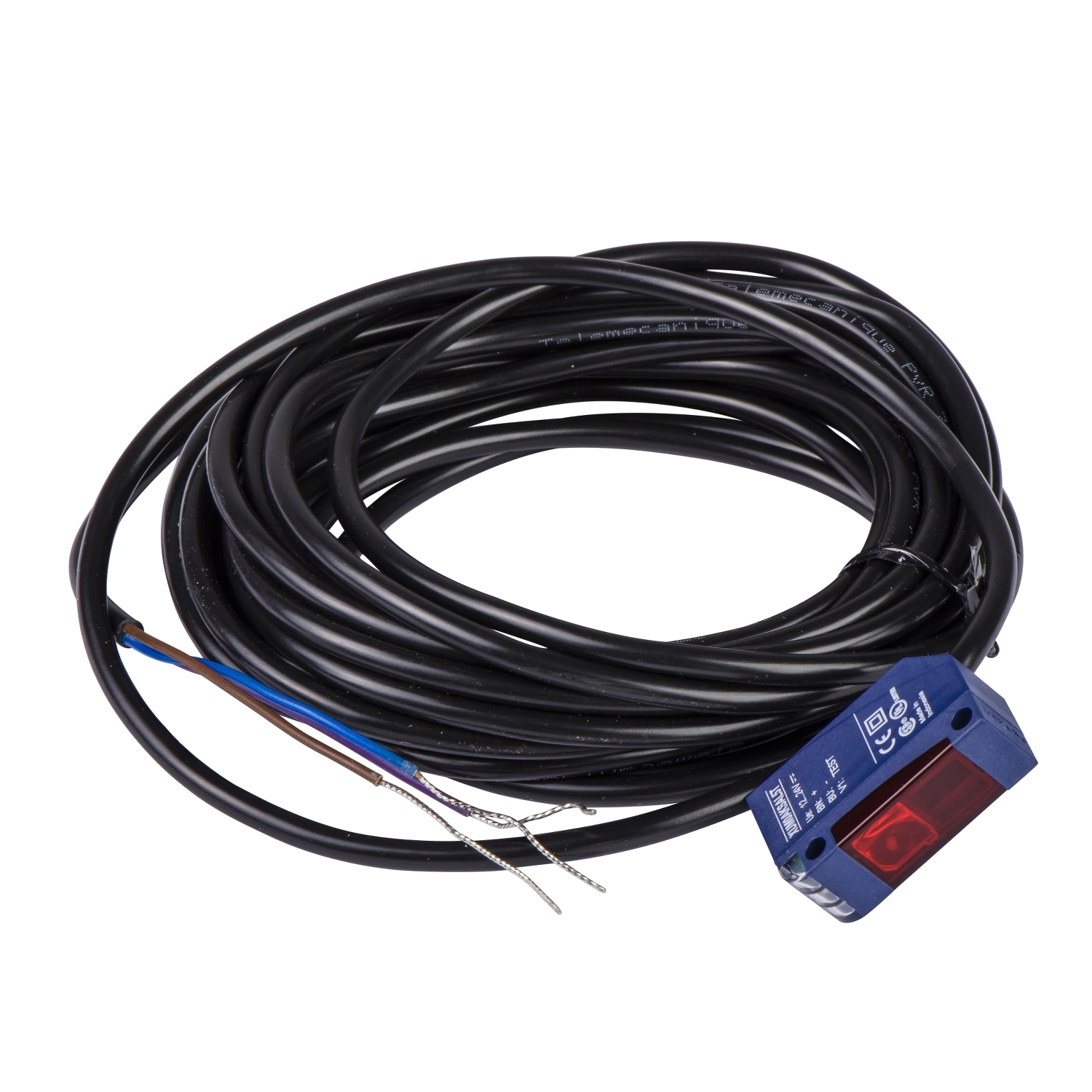

XUM0APSAL2 XUM Multi-Mode Photo Electric Sensor, 45.93/13.12/0.33/1.8 ft, Through Beam Sensing Beam, <2 ms Response, PNP Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUM0APSAL2
- UPC:
- 785901820383
- Item #:
- 54560
XUM0APSAL2 XUM Multi-Mode Photo Electric Sensor, 45.93/13.12/0.33/1.8 ft, Through Beam Sensing Beam, <2 ms Response, PNP Output
- MFR #:
- XUM0APSAL2
- UPC:
- 785901820383
- Item #:
- 54560
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This miniature design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and alignment, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUM0APSAL2 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connection | Cable |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT |
| Operating Cycles | <= 250 Hz |
| Output | PNP;1 NO or 1 NC programmable;Discrete;Solid state |
| Sensing Range | 3-3 M POLARISED REFLEX NEED REFLECTOR XUZC50-10-10 M THRU BEAM NEED A TRANSMITTER XUM0AKSAL2T-0.1-0.1 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.4-0.4 M DIFFUSE,> 0...32.81 FT (> 0...10 M) |
| Special Features | 1 LED green)supply;1 LED red)instability;1 LED yellow)output state |
| Standard | IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529,UL-CE-CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=874310&lang=en-us |
| UPC | 785901820383 |
| GTIN | 03389110164916 |
| Item Type | General purpose multimode;Multimode;Miniature;Photo-electric sensor |
| Size | 0.79 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND SUBMERSIBLE (INDOOR/OUTDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
