Discontinued
Panduit®

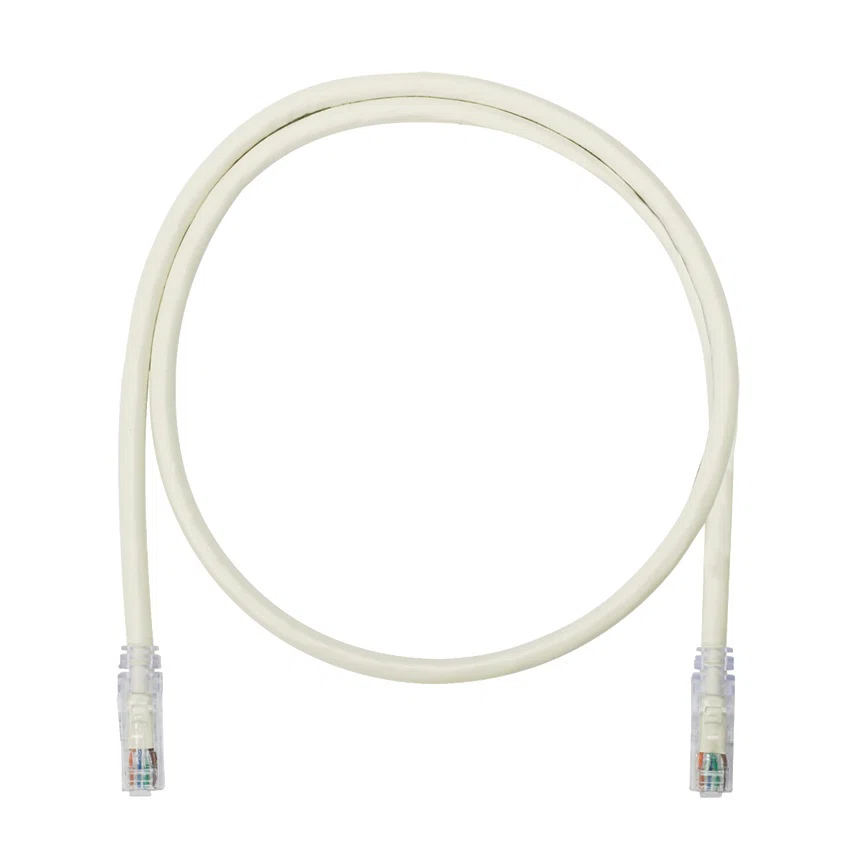

UTP6A5 PanNet TX6A 10Gig U/UTP Patch Cord, Cat 6A, 24 AWG Copper Conductor, Modular Plug Connector, 5 ft L Cord, Off-White

MFR:
Panduit
MFR #:
UTP6A5
UPC:
074983122721
Item #:
54377

Availability

Location Available Qty
Available Available to Order

Category 6A/Class EA, UTP patch cords shall be constructed of 24 AWG stranded copper cable with an enhanced performance modular plug on each end. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All four pairs shall be surrounded by MaTriX tape and a flame retardant jacket. The patent pending MaTriX tape shall suppress alien crosstalk and allow 10 Gbps transmission. Patch cord cable shall be offered in multiple colors and lengths for design flexibility with a strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Manuals and Documentation

Features

  • Interoperable
  • Matrix technology
  • Smaller cable diameter than most Category 6 patch cords and flexible cable design
  • 100% performance tested for wire map, next and return loss
  • Superior headroom warranty
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle-free latch on modular plugs
  • Slender strain relief boot
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
  • MaTriX technology
  • Superior headroom warranty
  • Flexible cable design
  • Center de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
Manufacturer Part Number UTP6A5
Brand Panduit®
Manufacturer Panduit
UPC 074983122721
EAN 0074983122721
Country Of Origin CR
Color Off-White
Cord Length 5 ft
Jacket Color Off-White
Alternative Part Number 10879675
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ANSI/TIA-1096-A | ANSI/TIA-568.2-D Category 6A | ARRA Compliant | BAA Compliant | CE Marked | CM Flammability Rated | IEC 60603-7 | IEEE 802.3af/802.3at/802.3bt Type 3 and Type 4 for PoE Compliant | RoHS Compliant | UL 1863 | Buy American Act Compliant | ISO 11801 Class EA | IEEE 802.3af, 802.3at, 802.3bt Type 3, Type 4 for PoE Compliant | CE Certified | CSA Approved
Application 10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Consolidation of Network Interconnects, Backbone Aggregation, Parallel Processing and High Speed Computing
Conductor Size 24 AWG
Temperature Rating 14 to 140 deg F
Type U/UTP
Category Type Cat 6A
Conductor Type Copper
Connector Type Modular Plug
