Hubbell Wiring Device - Kellems

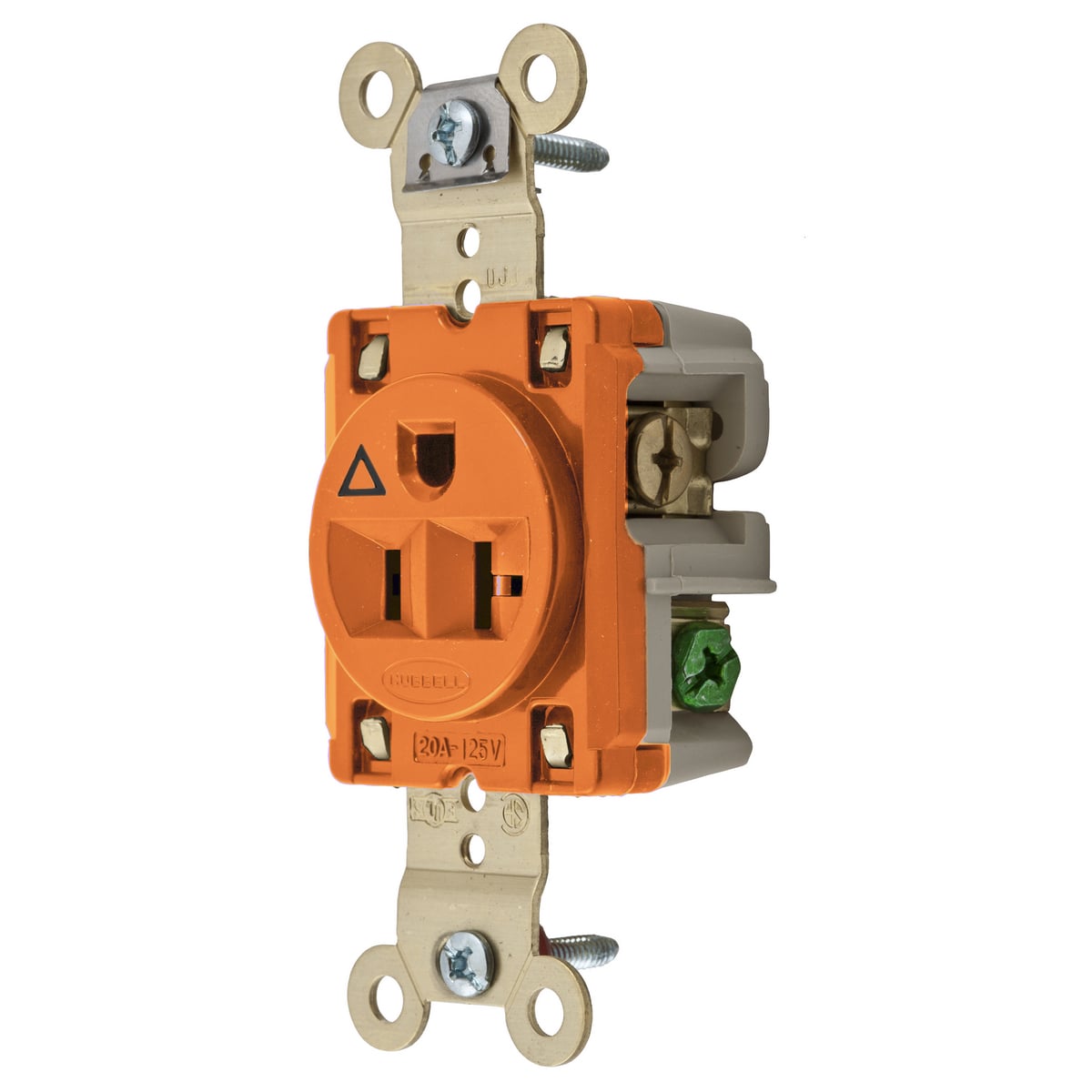

IG5361 1-Phase Extra Heavy Duty Isolated Ground Single Standard Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Orange

MFR:
Hubbell Wiring Device-Kellems
MFR #:
IG5361
UPC:
783585876856
Item #:
54329

Availability

Location Available Qty
Available Available to Order
$57.41 each

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Manuals and Documentation
Catalog Number IG5361
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 20
Application Extra Heavy Duty Specification Grade
Color Orange
Connection Back and Side Wired Screw Terminals
Material Thermoplastic/Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Isolated Ground
Standard Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585876856
GTIN 00783585876856
Item Type Single Receptacle
Size 3.28 in x 1.63 in x 1.19 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #14 AWG to #10 AWG
