Square D™

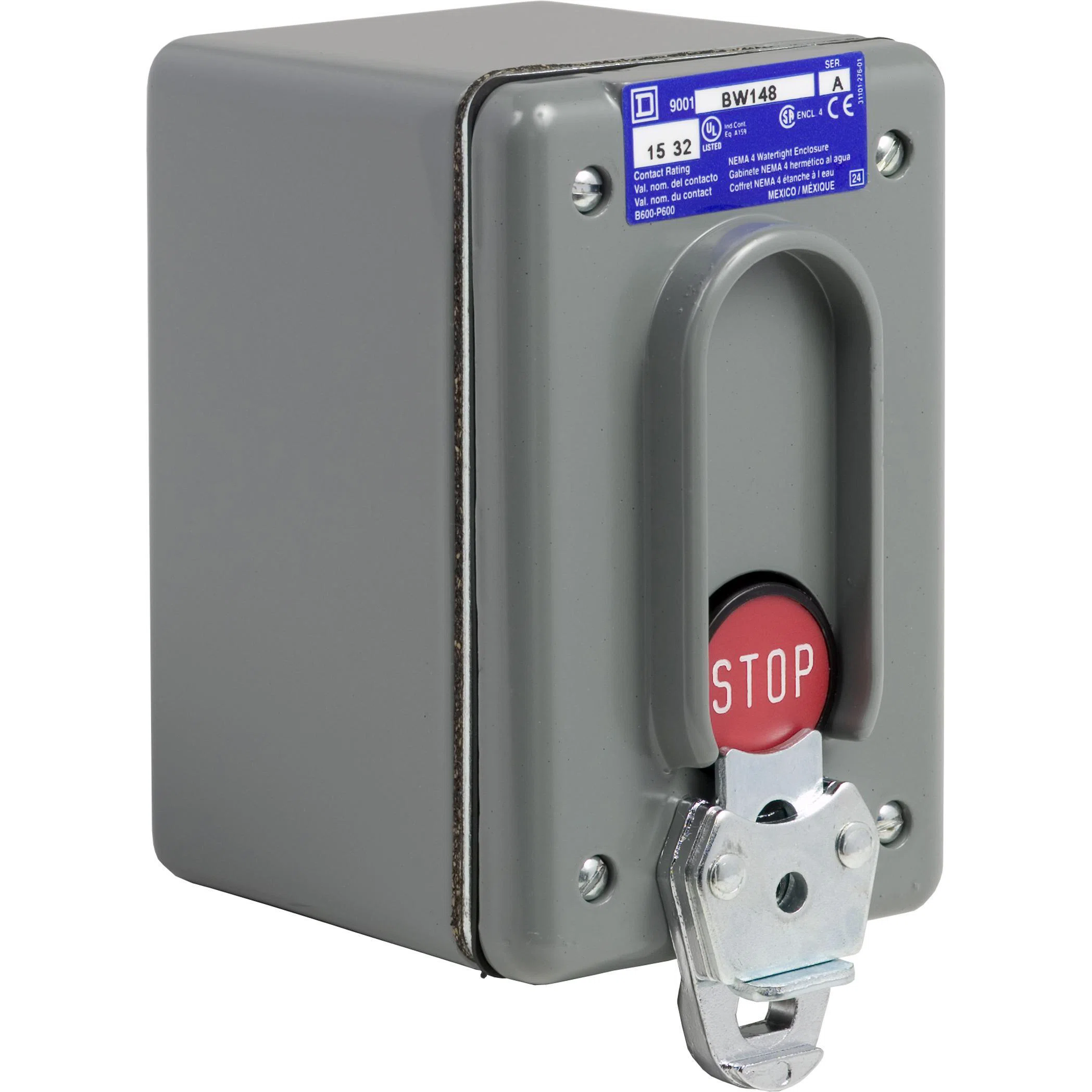

9001BW148 Harmony Type BW Complete Push Button Control Station, 600 V AC, 5 A, 1NC Contact, 1 Operators, NEMA 4 NEMA Rating

MFR:
Schneider Electric
MFR #:
9001BW148
UPC:
785901458784
Item #:
5425

Availability

Location Available Qty
Available Available to Order
$291.51 each

Square D™ Harmony™ Push Button Control Station, Type BW Complete, Series: 9001B, 600 V AC, 5 A, 1 Operators, 1NC Contact Configuration, Momentary Contact Mode, 5 A at 600 V AC Contact, Push Button Operator, Legend: Stop, Screw Clamp Connection, NEMA 4 NEMA Rating, Surface Mounting, Die Cast Zinc, 4.25 in H x 2.76 in W x 3.6 in D Dimensions

Manuals and Documentation

Features

  • Dust and damp proof
  • 1/2 to 14 NPT cable entry
  • (1) projecting pushbutton
  • Watertight and dusttight
Manufacturer Part Number 9001BW148
Brand Square D™
Manufacturer Schneider Electric
UPC 785901458784
EAN 0785901458784
Country Of Origin MX
Amperage Rating 5 A
Dimensions 4.25 in H x 2.76 in W x 3.6 in D
Material Die Cast Zinc
Mounting Type Surface
Series 9001B
Type Type BW Complete
Voltage Rating 600 V AC
Alternative Part Number 8054836
Manufacturer Item Status Active
Country USA
Warranty 18 Months
Standards Approvals RoHS Compliant | CE Certified | UL File No. E42259 | CSA File No. LR25490 Class 3211 03 | PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Application Indoor/Outdoor Applications
Connection Type Screw Clamp
Contact Configuration 1NC
Contact Mode Momentary
Contact Rating 5 A at 600 V AC
Legend Stop
Nema Rating NEMA 4
Number Of Operators 1
Operator Type Push Button
