Telemecanique

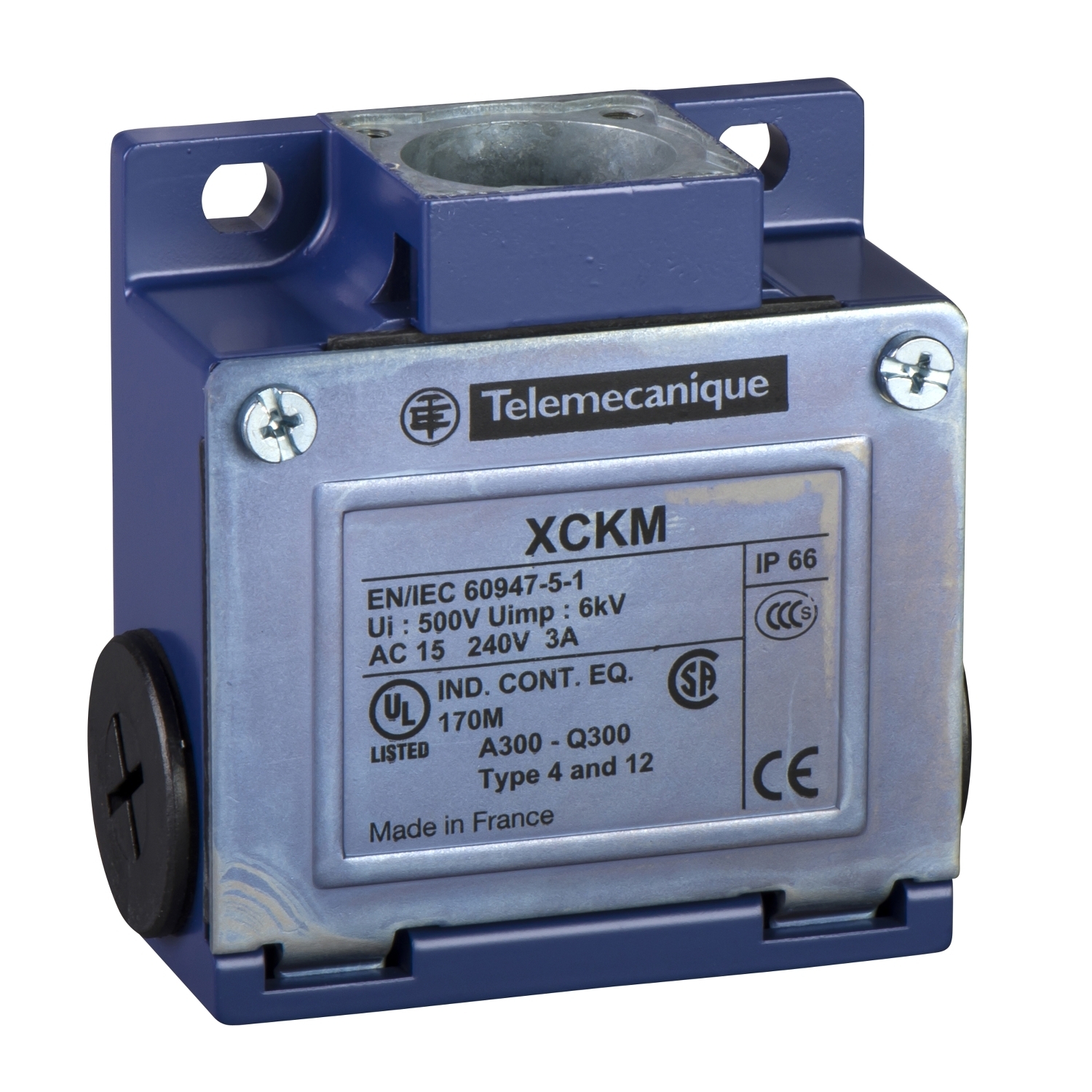

ZCKM1 OsiSense 2-Pole Fixed Standard Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCKM Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP66/IK05 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKM1
UPC:
785901646624
Item #:
54091

Availability

Location Available Qty
Available Available to Order
$82.93 each

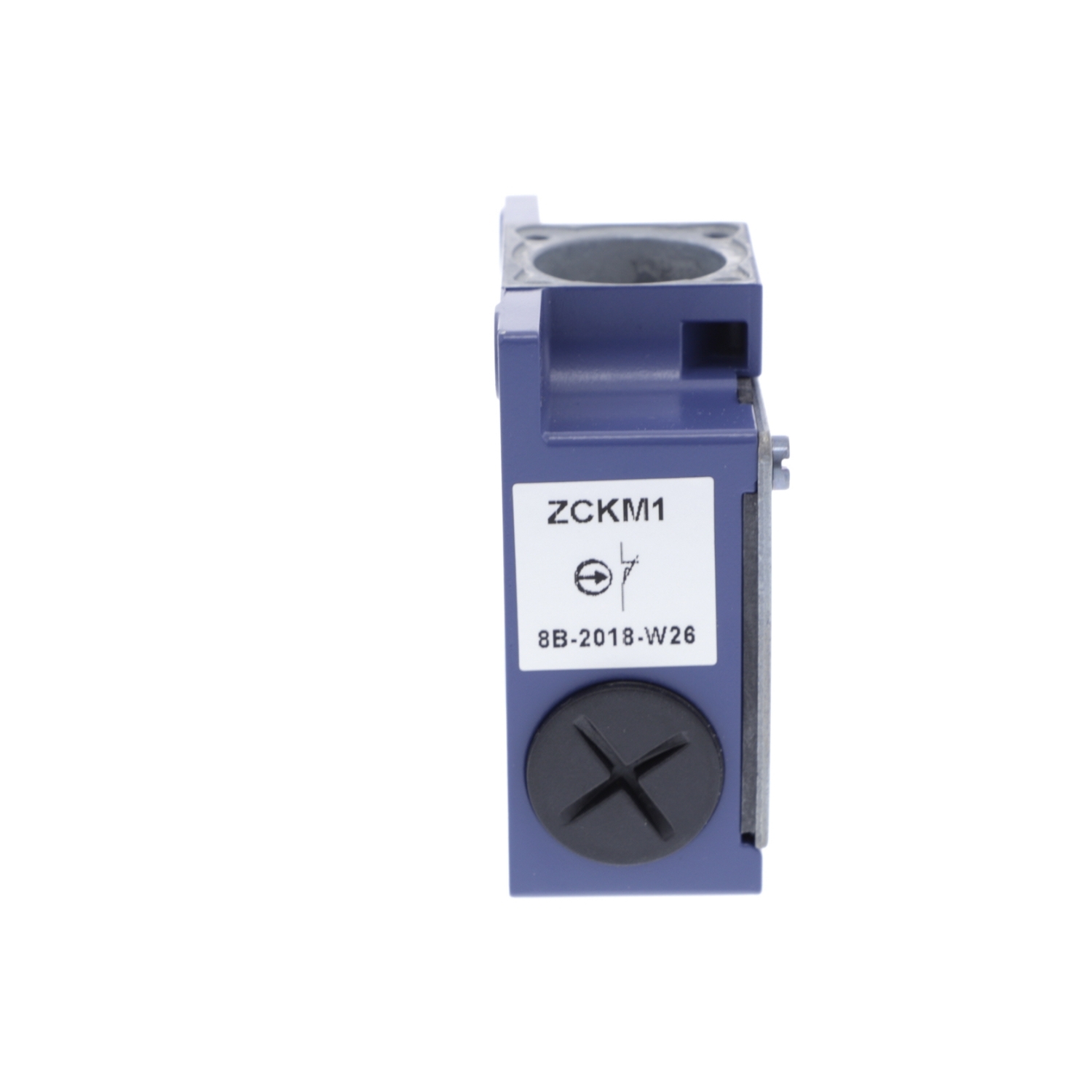

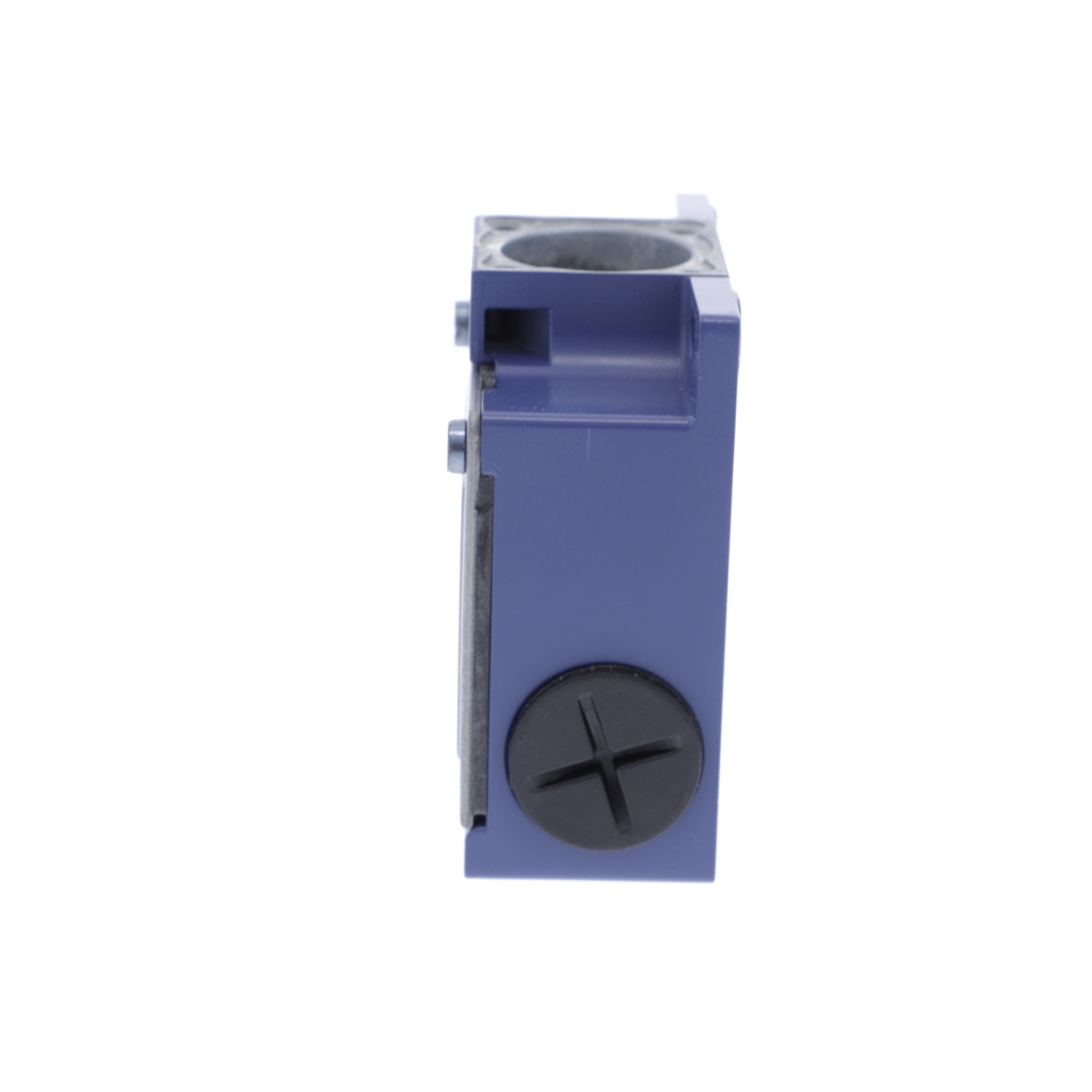

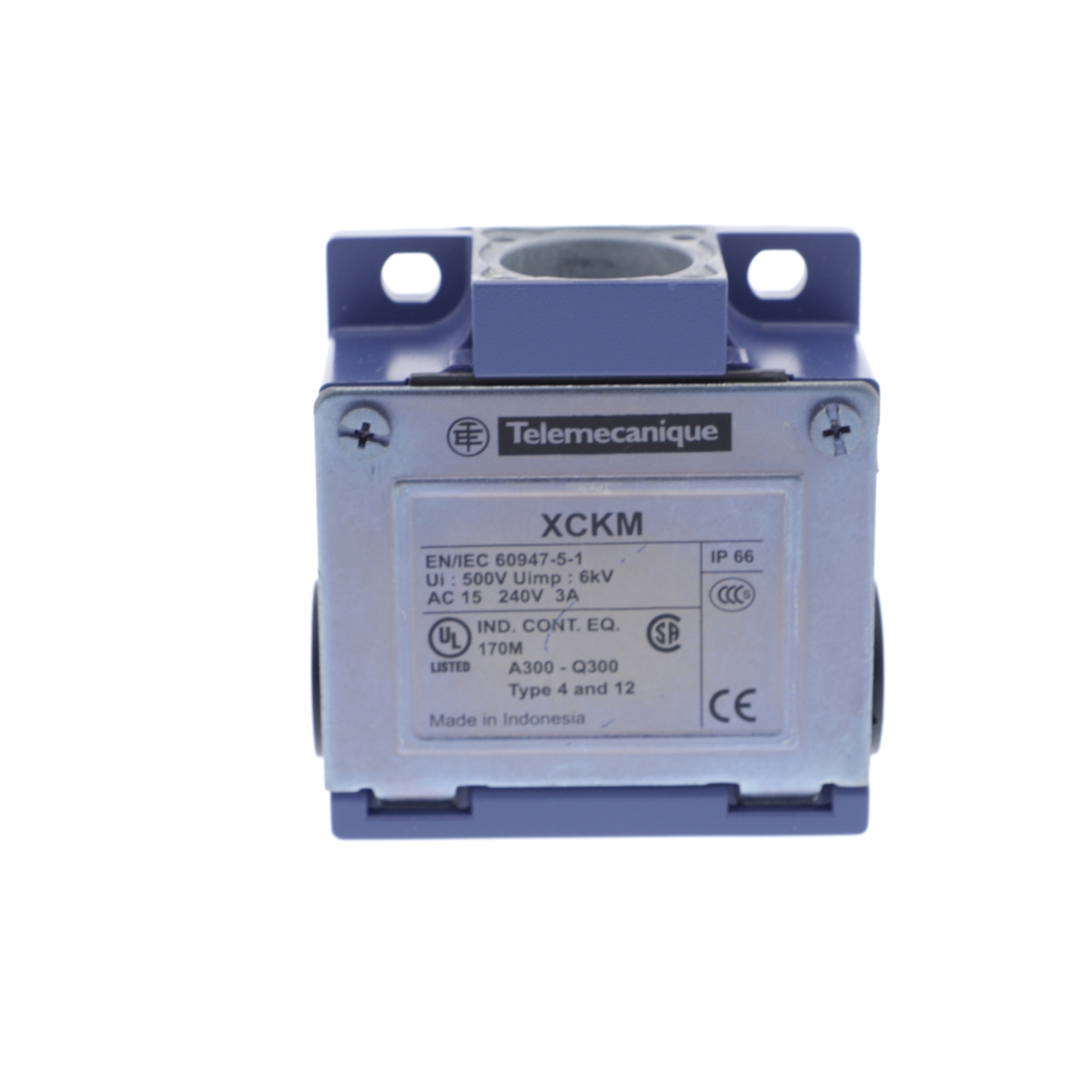

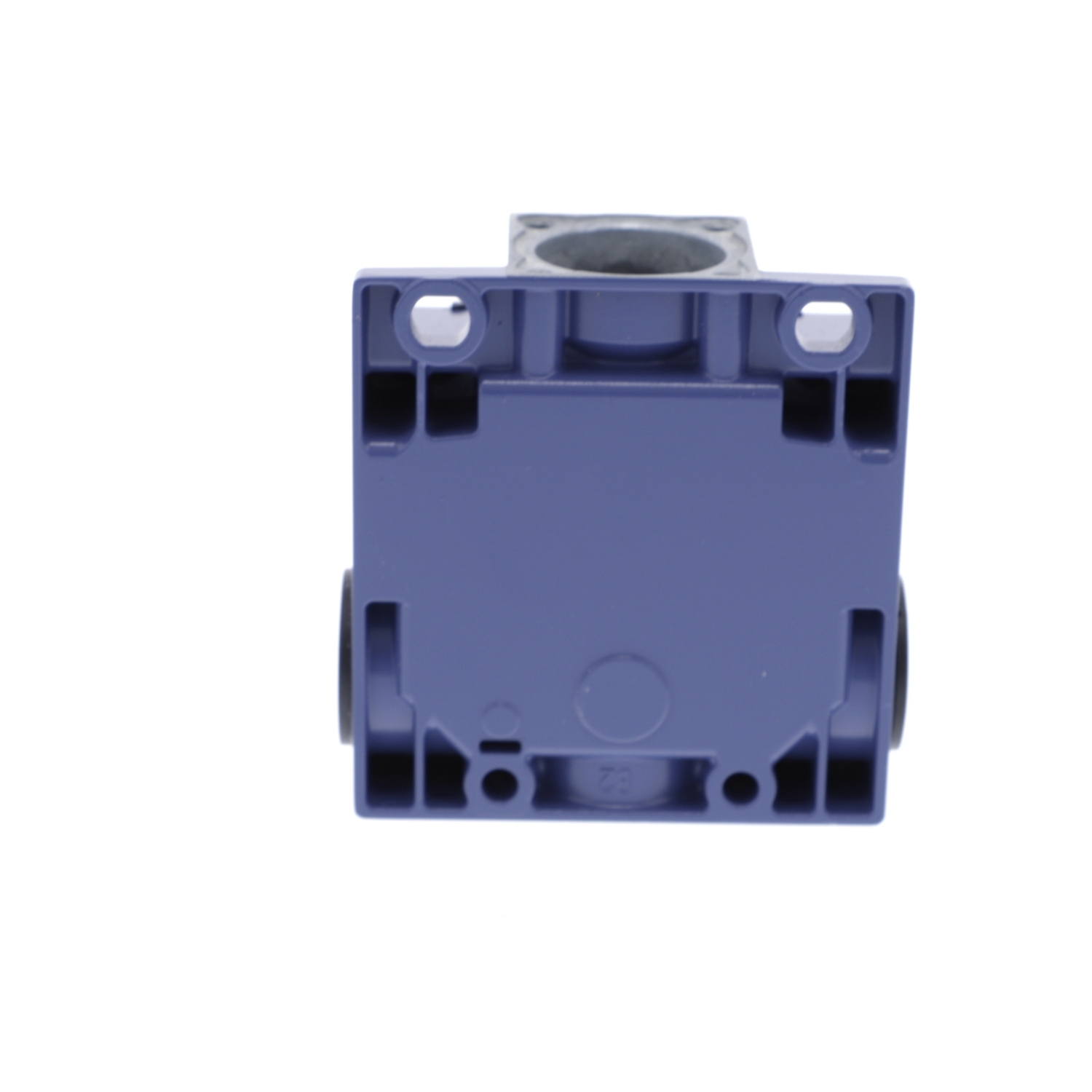

This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC snap action contacts and multiple Pg 11 cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKM1
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKM
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK05,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879860&lang=en-us
UPC 785901646624
GTIN 03389110646627
Item Type Limit switch body
Size 1.18
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
