Telemecanique

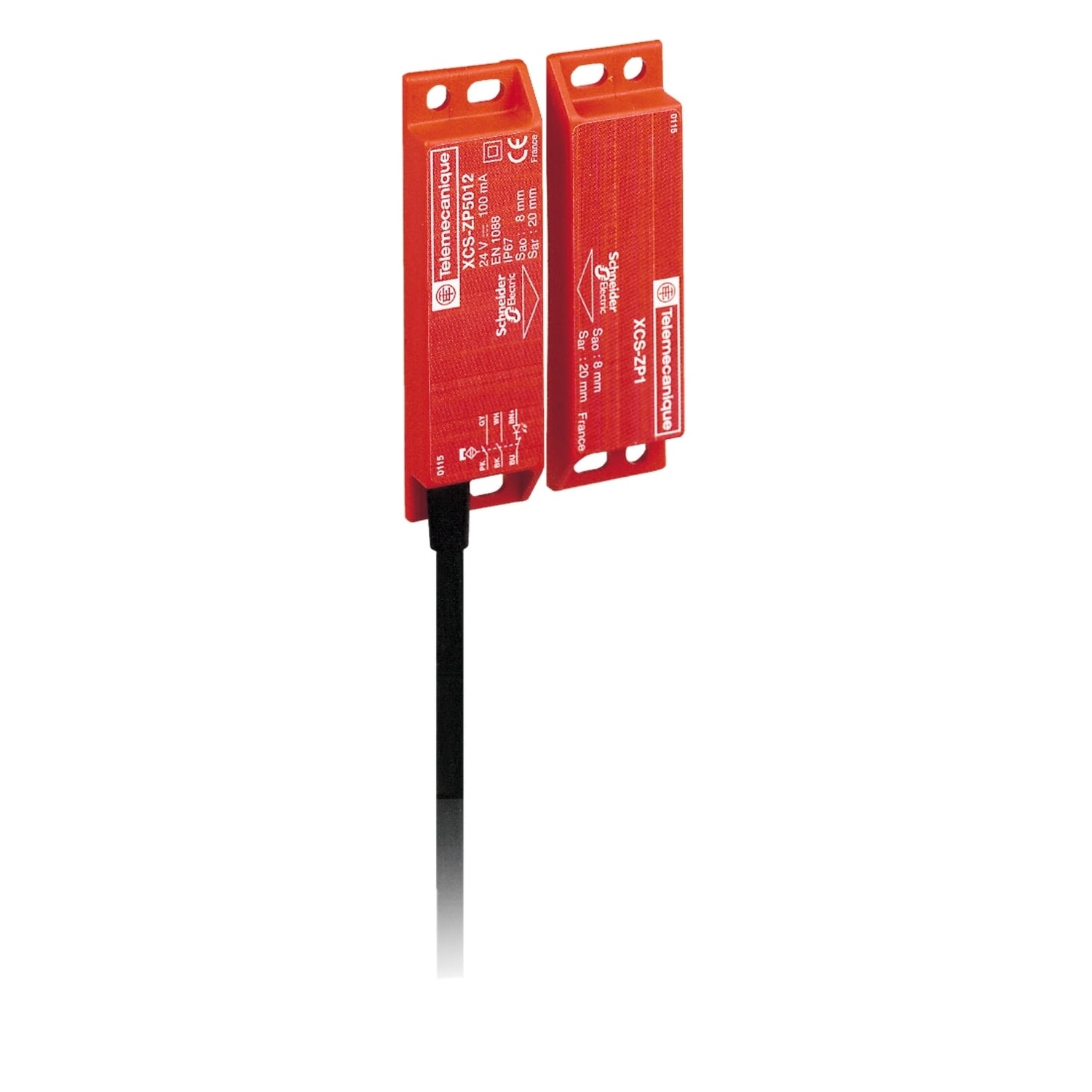

XCSDMP7902 Preventa XCS 2-Pole Coded Magnetic Switch, 24 V DC, 100 mA Contact, 2NC Contact, Rhodium Contact

MFR:
Telemecanique Sensors
MFR #:
XCSDMP7902
Item #:
538121

Availability

Location Available Qty
Available 13 ea
$140.67 each

This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally closed staggered contacts in presence of magnet. It has a rectangular design with a 2 meter with PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSDMP7902
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Staggered
Connection Pre-cabled
Contact Configuration 2 NC
Enclosure Thermoplastic PBT
Special Features PLASTIC
Standard 10 GN 10-150 HZ)IEC 60068-2-6,30 GN 11 MS IEC 60068-2-27,EN/IEC 60204-1-CSA C22.2 NO 14-EN/IEC 60947-5-1-UL 508-EN/ISO 12100-ISO 14119,IP66 IEC 60529-IP67 IEC 60529,UL-BG-CSA,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859076&lang=en-us
GTIN 03389119113014
Item Type Coded magnetic switch
Size 88 x 25 x 13 mm
Operating Temperature -25...85 A Degrees C
Voltage Rating 24 V DC
