Leviton®

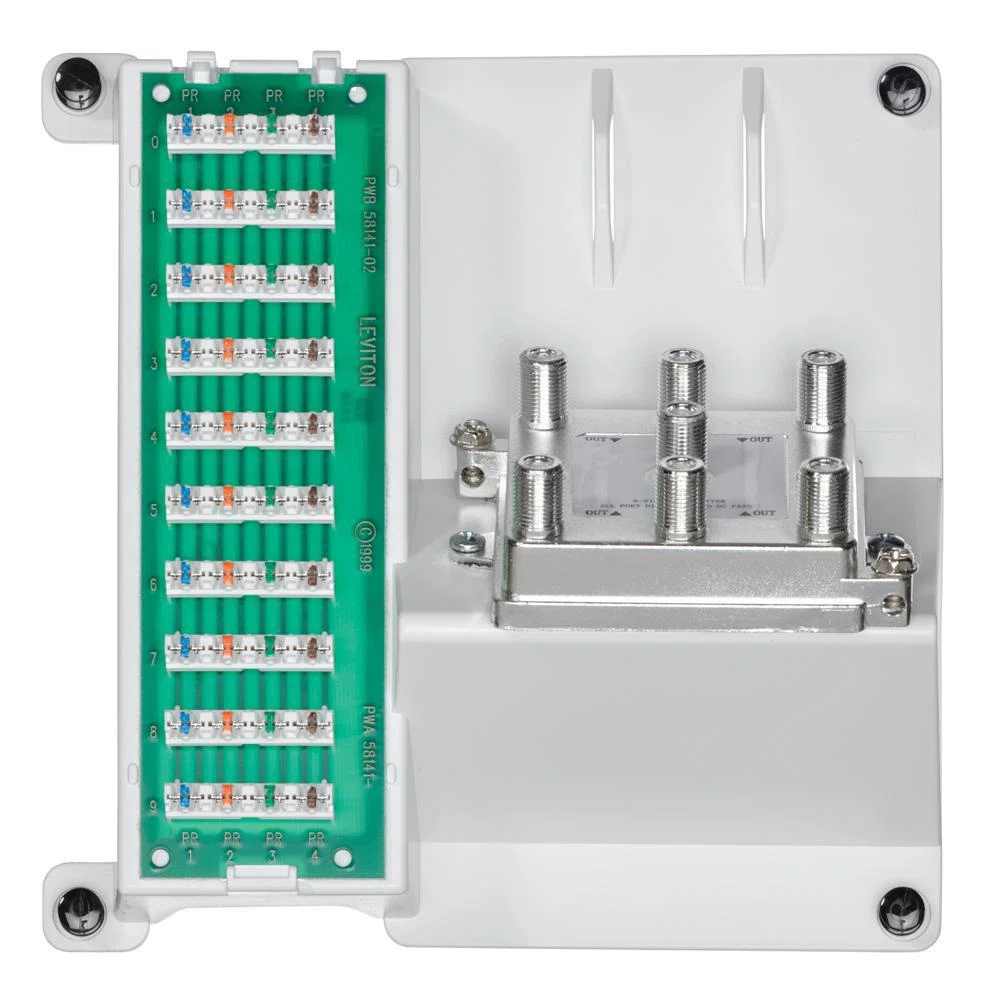

47603-2G6 Compact 6-Way Telephone and Video Panel, 6.55 in H x 6.04 in W

MFR:
Leviton
MFR #:
47603-2G6
UPC:
078477769089
Item #:
537608

Availability

Location Available Qty
Available Available to Order
$135.96 each

Compact pre-configured structured cabling panels are the simple solution for basic telephone and TV distribution. These panels feature a space saving profile and provide simple bridged telephone connections to nine locations and 2 GHz video to eight locations. Compact-series panels are ideal for multi-dwelling units and apartments or any place where space and budgets are of great concern.

Manuals and Documentation

Features

  • Compact series (6 in W) pre-configured panels are an ideal solution for basic telephone, data, security interface and TV distribution in MDUs where space and budget are of primary concern
  • Four to nine bridged telephone, up to four Cat 5e data and up to eight video connections
  • Fits easily into any Leviton® Structured Media® enclosure or can be used as a standalone unit
  • Determine outlet locations and carefully plan cable routing to ensure the selected board satisfies requirements
  • Install 75 Ohm termination caps on unused outputs of 6-way 2 GHz video splitter to reduce signal distortion or ghosting
Manufacturer Part Number 47603-2G6
Brand Leviton®
Manufacturer Leviton
UPC 078477769089
Country Of Origin MX
Color White
Depth 2.98 in
Height 6.55 in
Material ABS Bracket/Die Cast
Series Compact
Type 6-Way
Width 6.04 in
Alternative Part Number 14254572
Manufacturer Item Status Active
Country USA
Warranty 1 year Limited
Standards Approvals cULus Listed | ANSI/TIA-568-C.2 | ANSI/TIA-1096-A
Application For basic telephone, data, security interface and TV distribution
Includes Plastic Mounting Bracket, 1x9 Bridged Telephone Board and 6-Way 2 GHz Video Splitter
Terminal Type IDC
