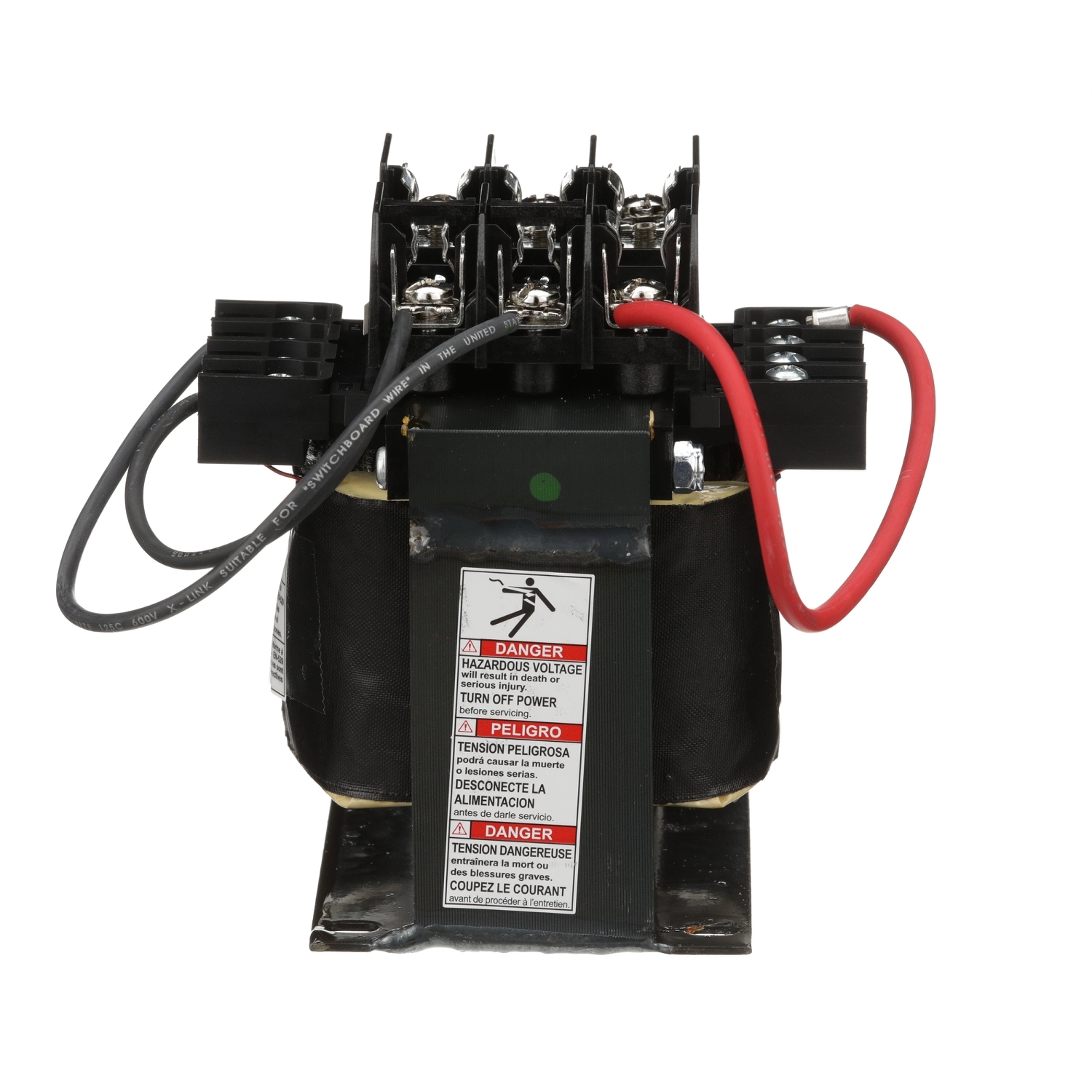

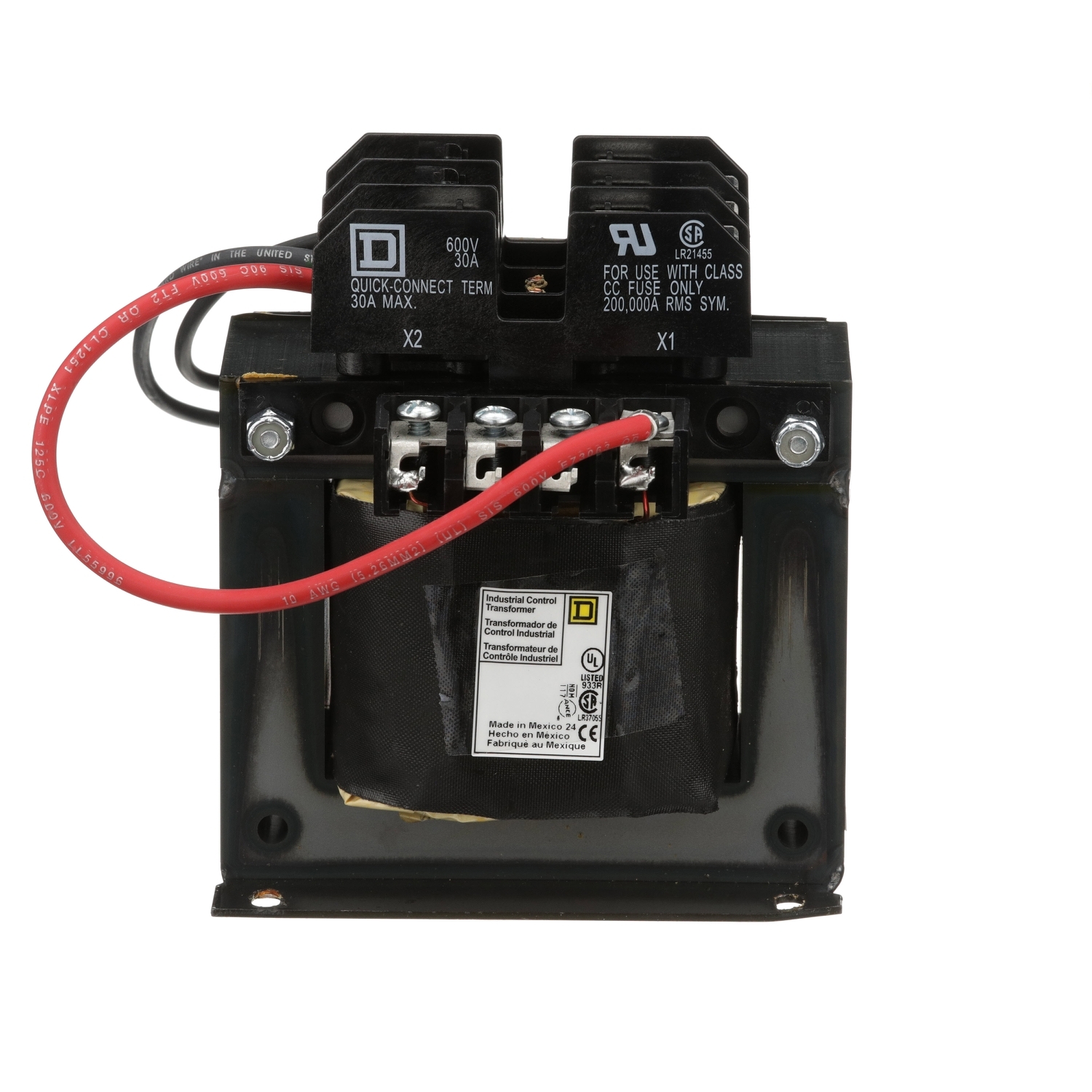

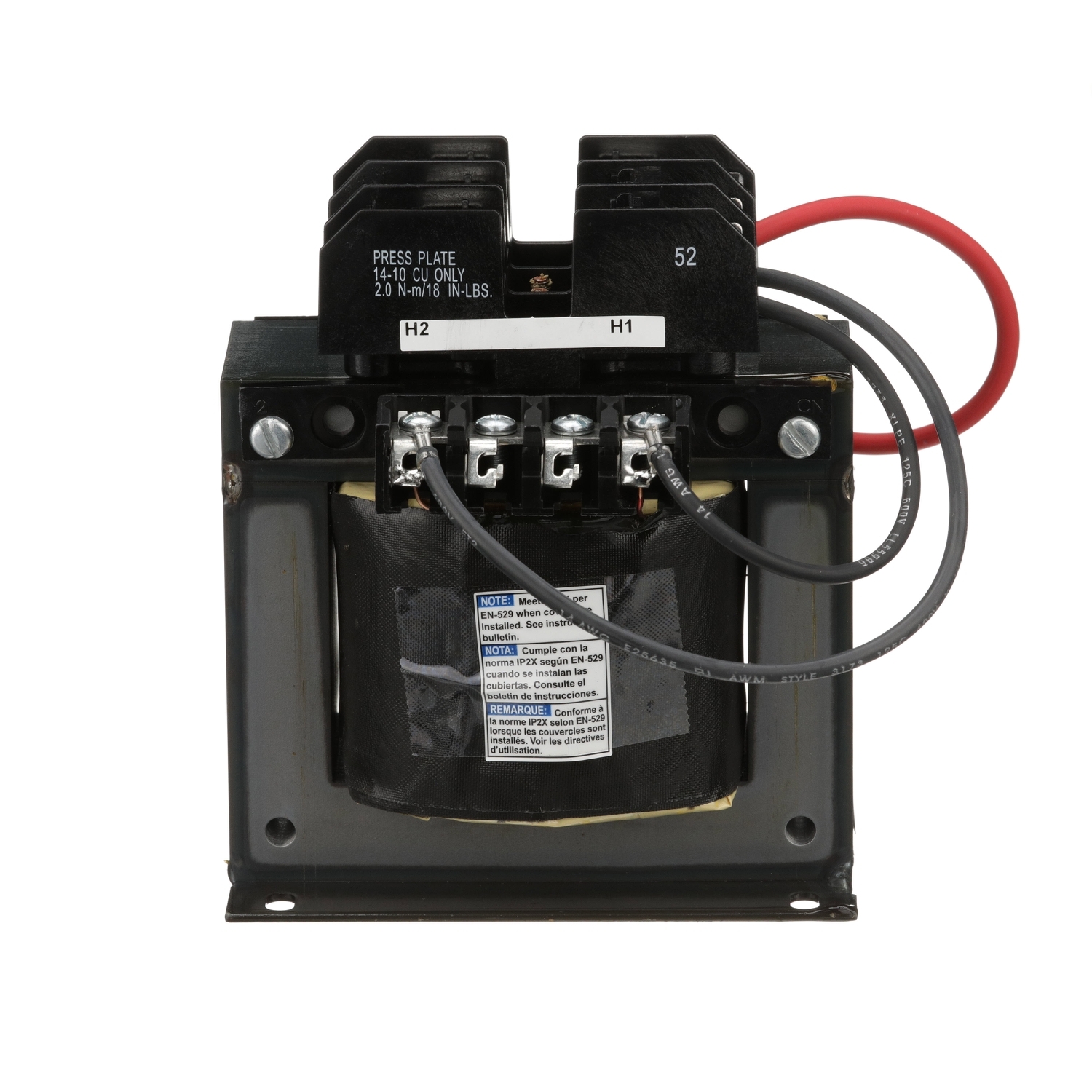

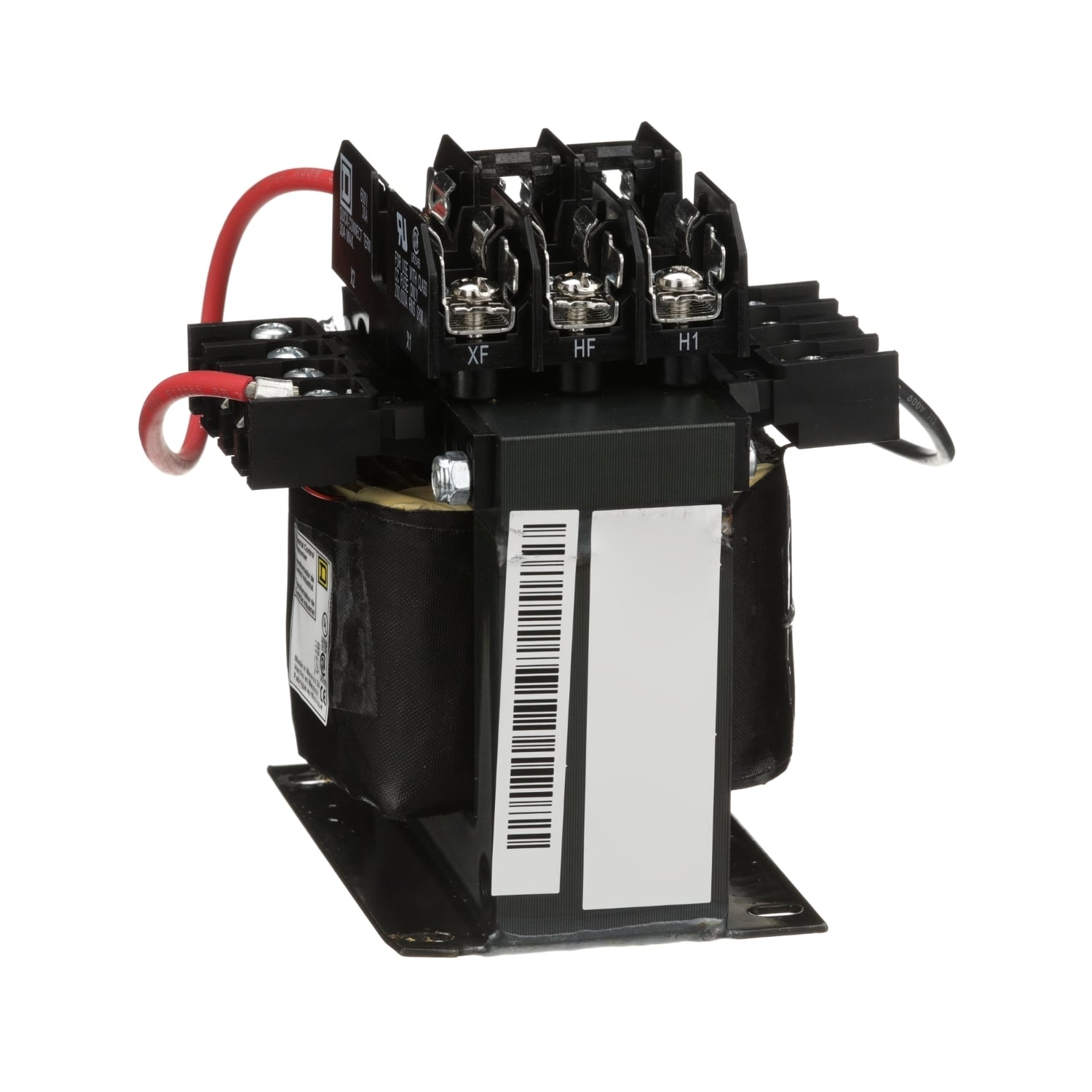

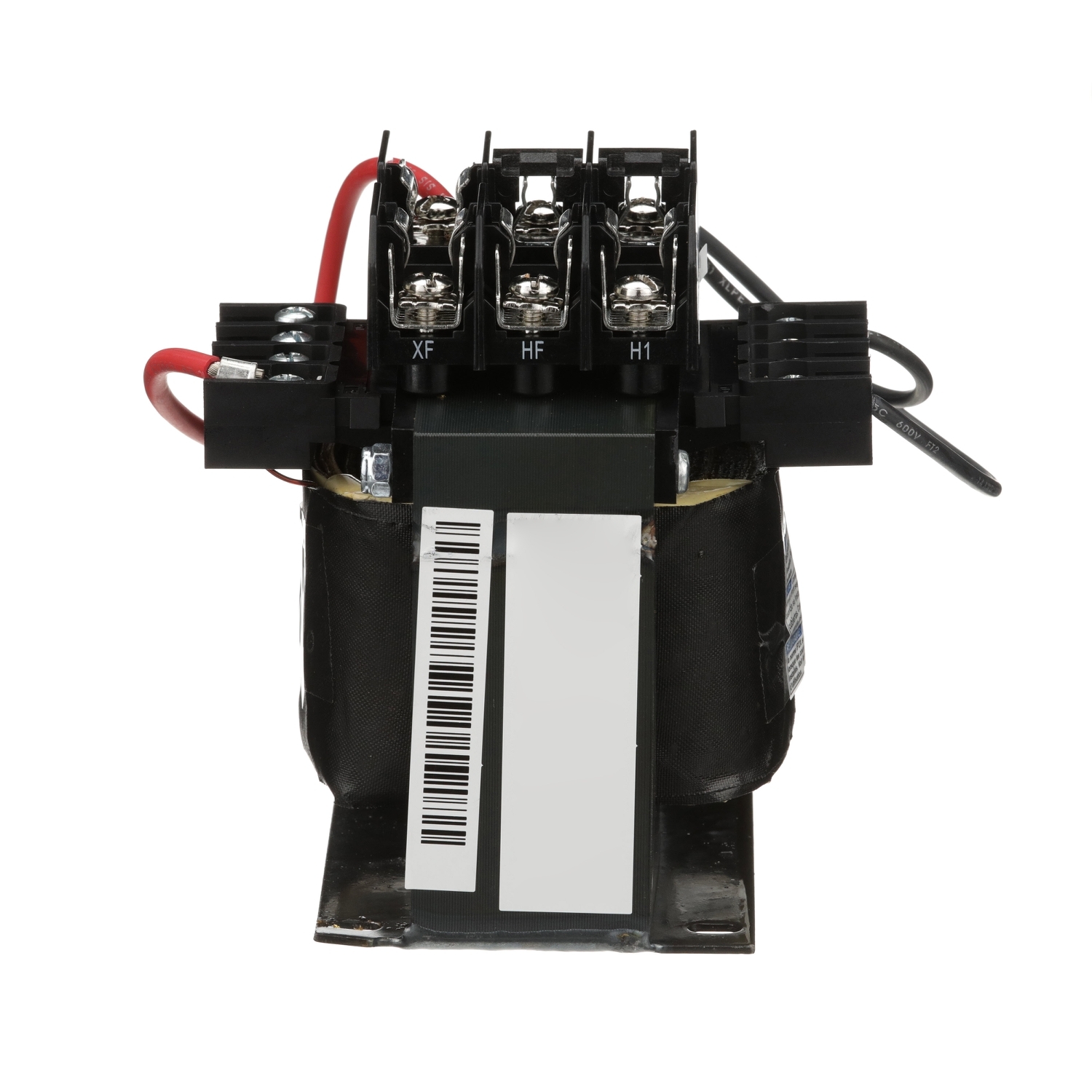

9070TF300D5 Type TF Industrial Open Style Control Transformer, 550/575/600 V AC Primary, 110/115/120 VAC Secondary, 300 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Schneider Electric
- MFR #:
- 9070TF300D5
- UPC:
- 785901314448
- Item #:
- 537577
9070TF300D5 Type TF Industrial Open Style Control Transformer, 550/575/600 V AC Primary, 110/115/120 VAC Secondary, 300 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- 9070TF300D5
- UPC:
- 785901314448
- Item #:
- 537577
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 300 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 80 C. The dimensions for this product are 5.13 in (H), 4.5 in (W), 4.74 in (D). This product is compatable with FSC2. This product complys to UL, CSA & NOM standards.
Manuals and Documentation
| Catalog Number | 9070TF300D5 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=454575&lang=en-us |
| UPC | 785901314448 |
| GTIN | 00785901314448 |
