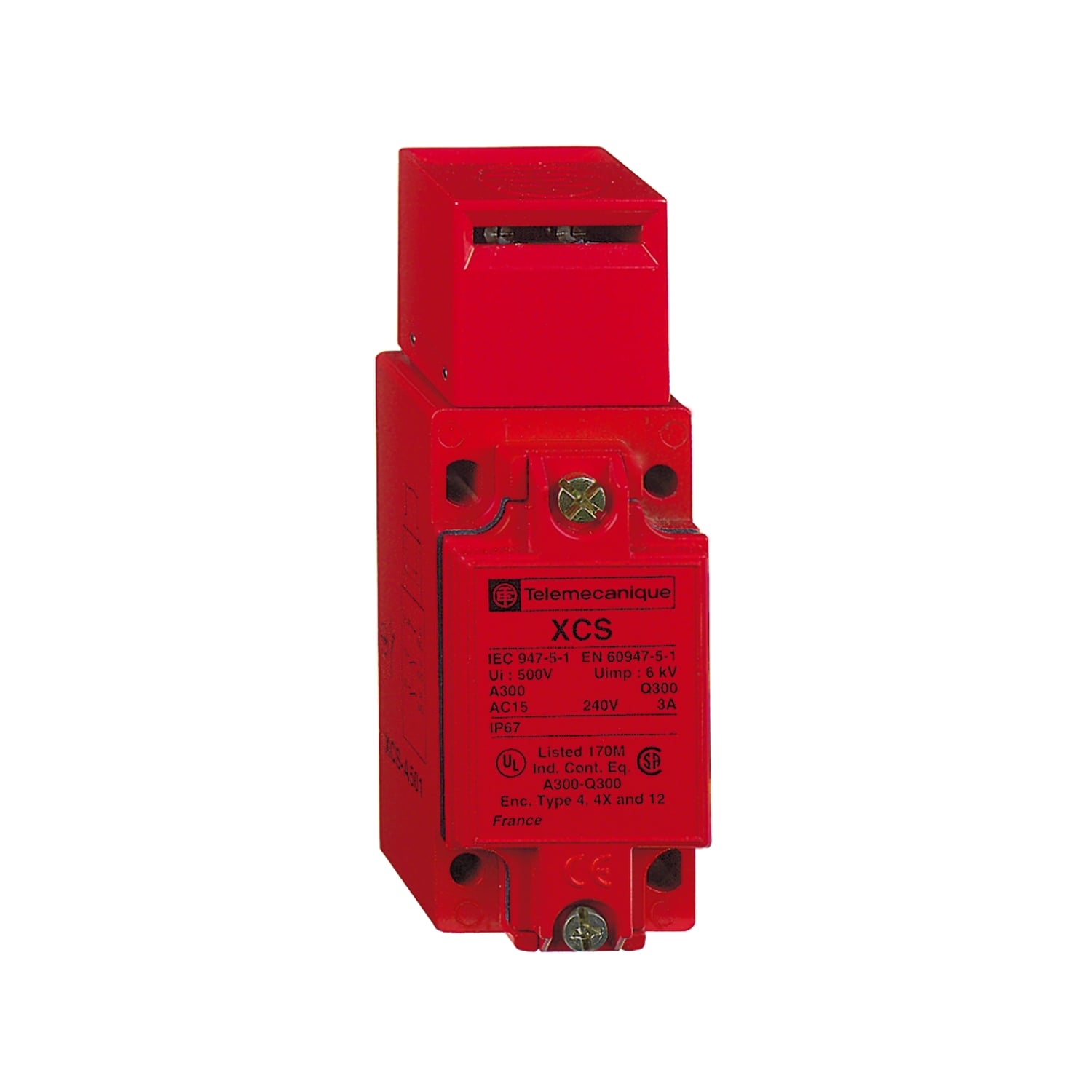

XCSA523 Preventa Corrosion-Resistant Dusttight/Watertight Turret Head Safety Interlock Switch, 300 V AC, 10 A, 3 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSA523
- UPC:
- 785901400042
- Item #:
- 53726
XCSA523 Preventa Corrosion-Resistant Dusttight/Watertight Turret Head Safety Interlock Switch, 300 V AC, 10 A, 3 Poles
- MFR #:
- XCSA523
- UPC:
- 785901400042
- Item #:
- 53726
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$303.31
each
metal safety switch XCSA - 1 NC + 2 NO - slow break - 1 entry tapped 1/2" NPT
Manuals and Documentation
| Catalog Number | XCSA523 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Slow-break, break before make |
| Actuator | KEY |
| Amperage Rating | 10 |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 1 NC + 2 NO |
| Enclosure | NEMA 4/4X/12 - IP67 |
| Number of Poles | 3 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | for on opening of NC contacts 1 LED (orange) |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,EN/IEC 60947-5-1-EN/IEC 60204-1-CSA C22.2 NO 14-UL 508-EN/ISO 12100-EN 1088/ISO 14119,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS I EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858668&lang=en-us |
| UPC | 785901400042 |
| GTIN | 03389110719048 |
| Item Type | Safety switch |
| Size | 1.73 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1-3 A 240 V, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
