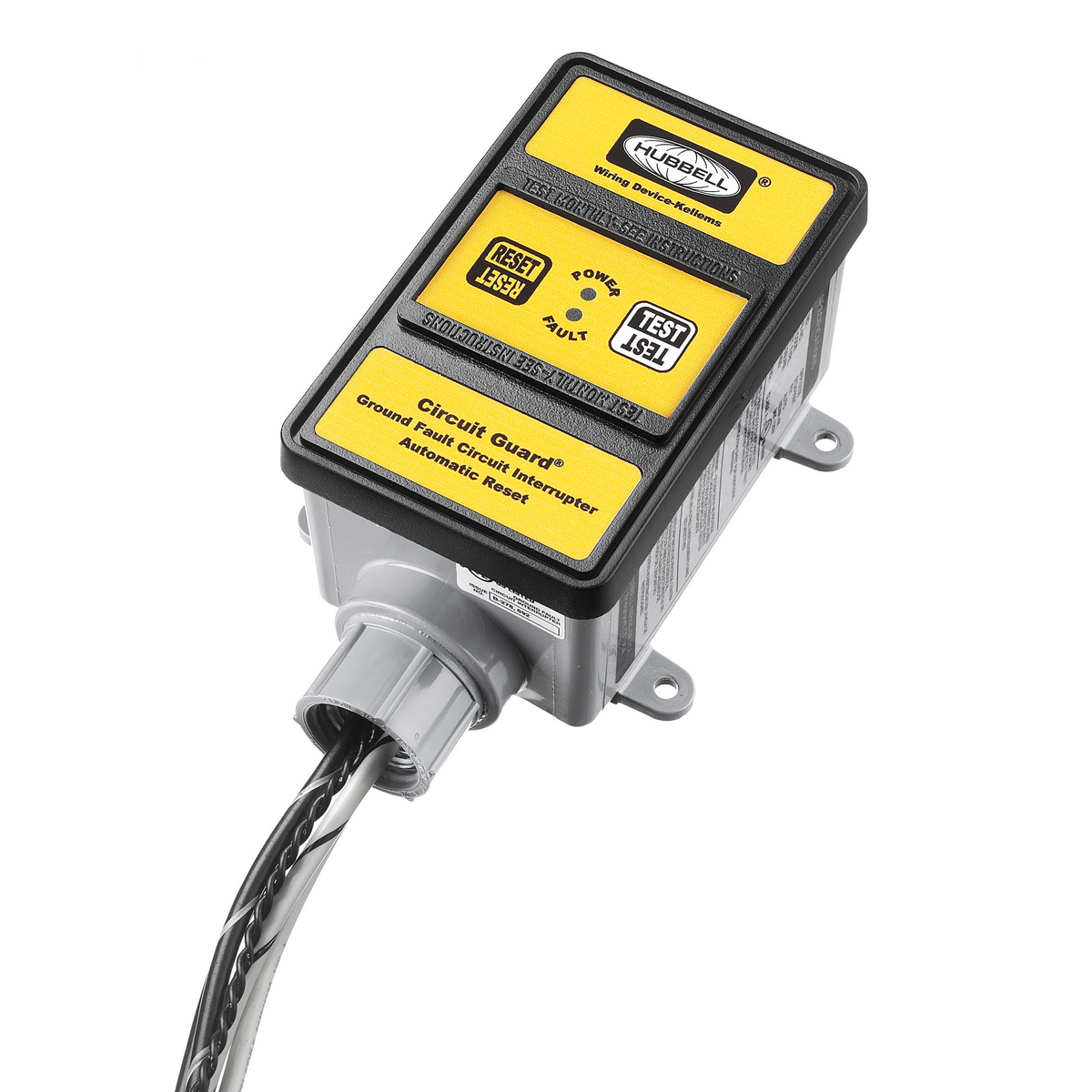

GFHW431 3-Phase 5-Wire Automatic Multi-Strand Fabricated Hard Wired Gfci, 120/208 V AC, 30 A, NEMA 4X Enclosure, Thermoplastic

MFR:
Hubbell Wiring Device-Kellems
MFR #:
GFHW431
UPC:
783585521091
Item #:
535357

Availability

Location Available Qty
Available Available to Order
$824.76 each

Ground Fault Circuit Interrupters (GFCIs) - For non-residential installations all receptacles installed in nondwelling locations specified in NEC Article 210.8(B)(1) to (10) shall have ground fault circuit interrupter protection for personnel. These areas include: (1) Bathrooms (2) Kitchens (3) Roof Tops (4) Outdoors (5) Sinks (within 6 of edge) (6) Indoor Wet Locations (7) Locker Rooms/Shower Facilities (8) Garages/Service Bays (9) Crawl Spaces (10) Unfinished Basements. Required by code, receptacles in any wet area must all be protected with ground fault circuit interrupters (GFCIs) that stop the flow of electric current to protect people in the presence of a ground fault. Hubbell offers AUTOGUARD and standard heavy duty GFCI receptacles. AUTOGUARD is a self-test version that continually tests electronic circuitry automatically. The AUTOGUARD unit features a green LED to indicate power-on and a red LED that is both a trip indicator when solid, and an end of life indicator when flashing. The GFCI sensing modules work in conjunction with hydraulic magnetic circuit breakers to interrupt power in the event of a ground fault condition.

Manuals and Documentation
Catalog Number GFHW431
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 30
Application Wire Into Circuit
Color Yellow
Conductor Material Copper
Conductor Size 10 AWG
Construction Fabricated
Insulation Material Thermoplastic
Number of Conductors 5
Special Features Auto Set- No Alarm
Standard UL Listed
UPC 783585521091
GTIN 00783585521091
Item Type Hard Wired
Length 24 Leads
Length UOM Inch
Weight 2.4 LB
Temperature Rating -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Voltage Rating 3 Phase 120/208
