7100165028 QS-II 5411R 1-Piece In-Line Repair Splice Kit, 15 kV, 2 AWG Conductor, 15.7 in L Splice, EPDM Rubber
- MFR:
- 3M Electrical Products
- MFR #:
- 5411R-CIR-2
- UPC:
- 051128550977
- Item #:
- 534086
7100165028 QS-II 5411R 1-Piece In-Line Repair Splice Kit, 15 kV, 2 AWG Conductor, 15.7 in L Splice, EPDM Rubber
- MFR #:
- 5411R-CIR-2
- UPC:
- 051128550977
- Item #:
- 534086
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$512.41
each

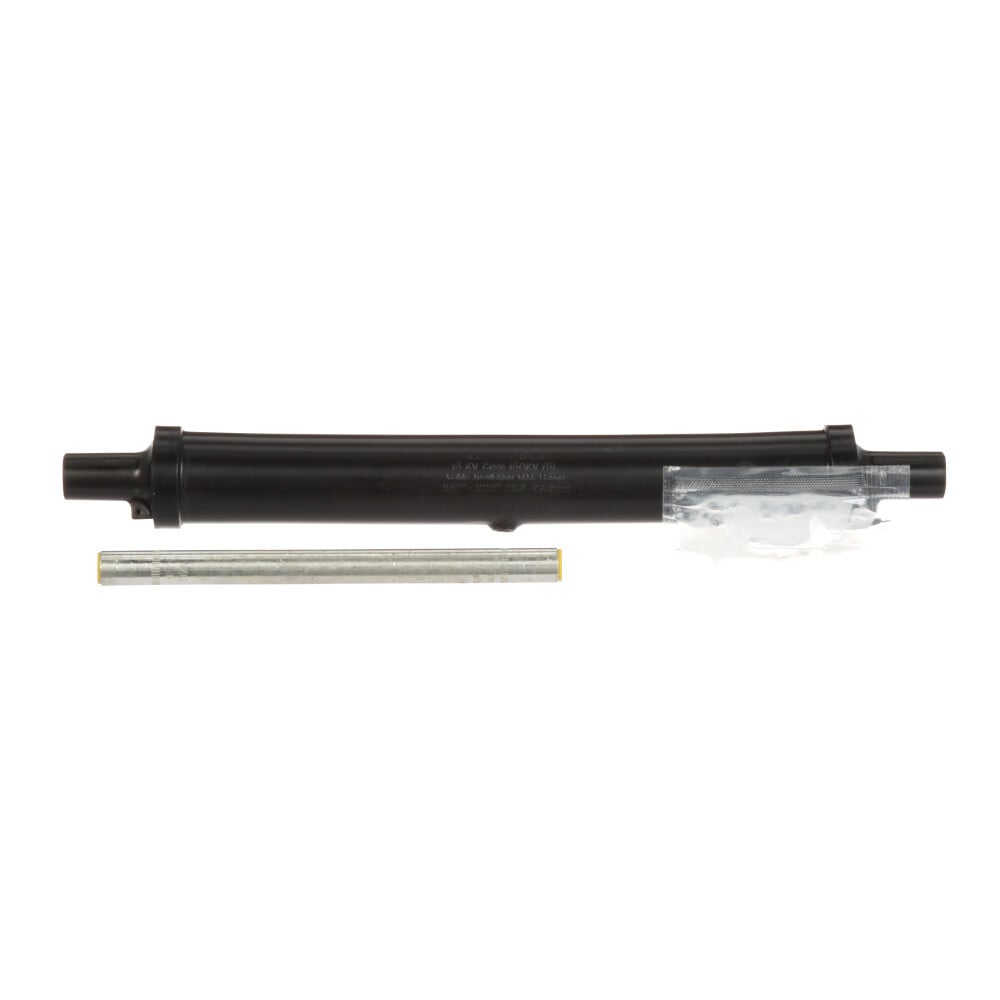

3M 5411R Series QS II Splice Kit includes an EPDM molded rubber splice body, a packet of silicone grease and an instruction sheet. It replaces up to 6 inches of damaged cable, thereby eliminating the need to splice in a new section of cable with 2 separate splices. It is suitable to use on cables that can withstand a maximum temperature of 90 C. The splice is molded from specially formulated, peroxide cured EPDM rubbers to provide physical protection. Connectors bridge the gap where the damaged cable is removed. The kit meets the requirements of IEEE 404 standards.
Manuals and Documentation
| Catalog Number | 5411R-CIR-2 |
| Manufacturer | 3M Electrical Products |
| Brand | 3M |
| Country of Origin | United States |
| Made in USA | Yes |
| Connector | CIR-2 |
| RoHS URL | Contact 3M for information |
| UPC | 051128550977 |
| GTIN | 00051128550977 |
| Item Type | Inline Repair |
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) |
| Voltage Rating | 15 kV |
