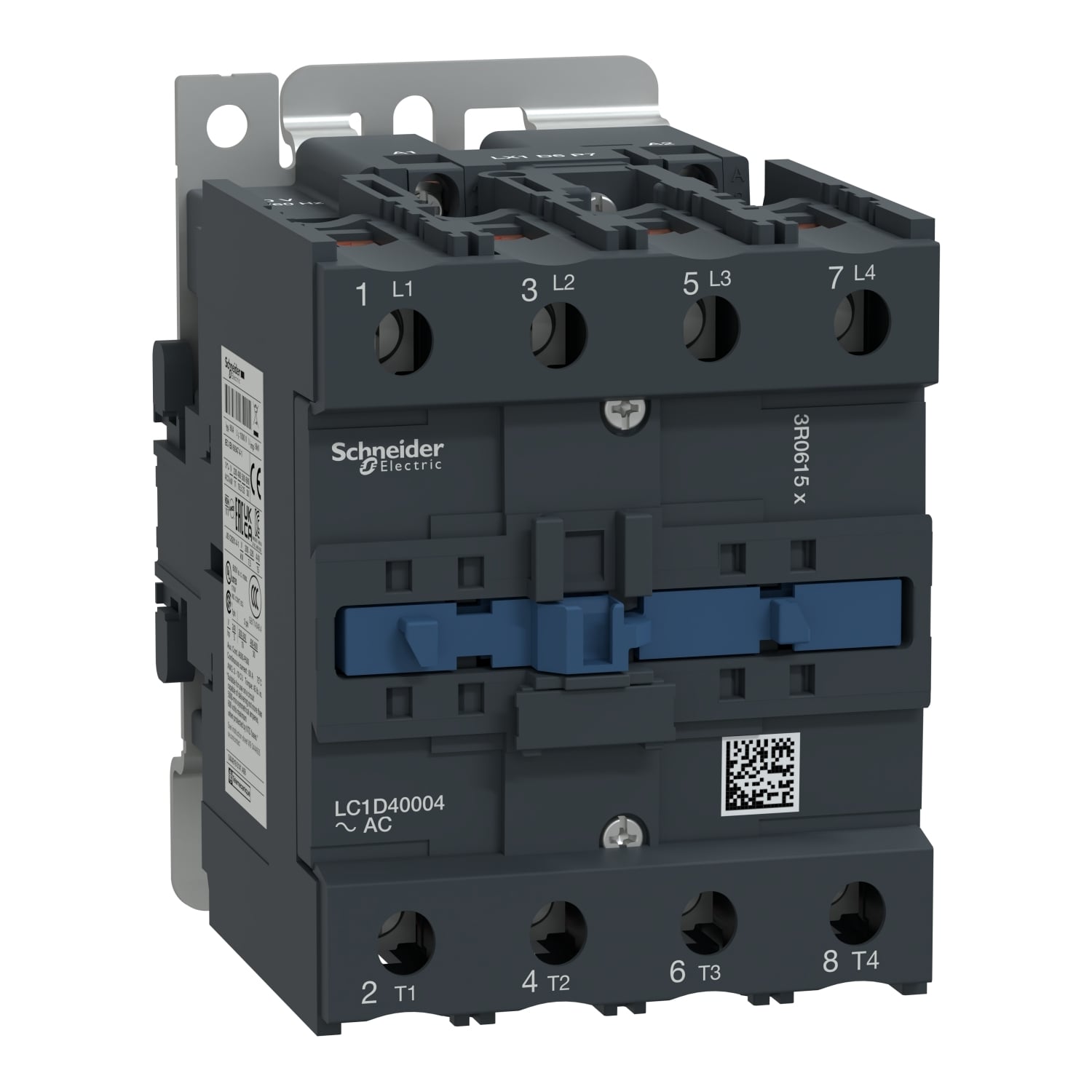

LC1D40004G6 TeSys D LC1D Non-Reversing Contactor, 120 V AC V Coil, 60 A, 4NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D40004G6
- Item #:
- 53278
LC1D40004G6 TeSys D LC1D Non-Reversing Contactor, 120 V AC V Coil, 60 A, 4NO Contact, 4 Poles
- MFR #:
- LC1D40004G6
- Item #:
- 53278
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 120 VAC 60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D40004G6 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 120 V AC 60 Hz |
| Connection | Control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminal 1 2.5-16 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminal 2 2.5-16 mm² - cable stiffness: solid without cable end |
| Contact Configuration | 4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Special Features | Without built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616820&lang=en-us |
| GTIN | 03389110069341 |
| Item Type | Contactor |
