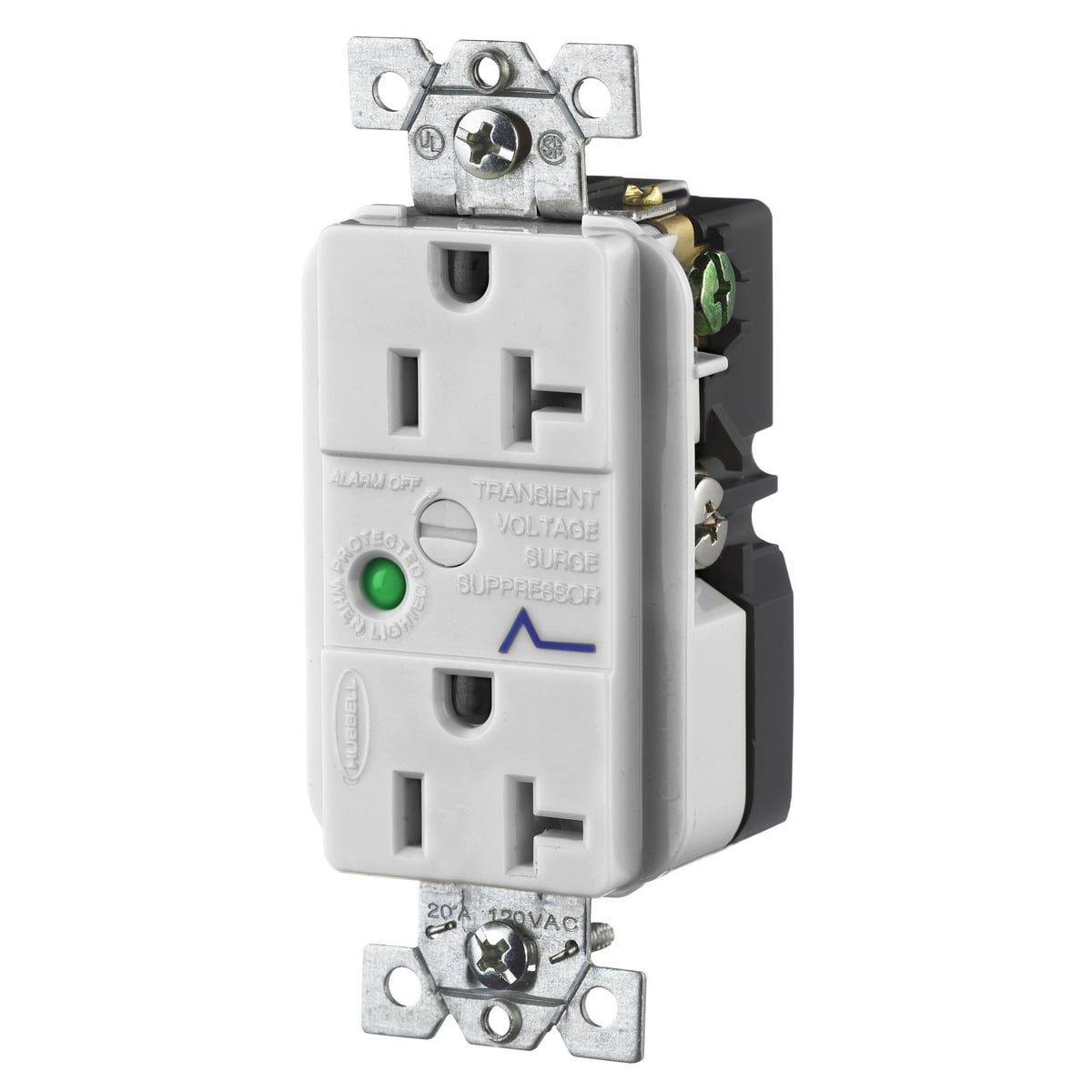

HBL5360OWSA Duplex Specification Grade Standard Tvss Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5360OWSA
- UPC:
- 783585060989
- Item #:
- 53131
HBL5360OWSA Duplex Specification Grade Standard Tvss Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
- MFR #:
- HBL5360OWSA
- UPC:
- 783585060989
- Item #:
- 53131
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
Manuals and Documentation
| Catalog Number | HBL5360OWSA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Decorator Duplex |
| Connection | Terminal Screws |
| Frequency Rating | 60 HZ |
| Material | Composite |
| Mounting | Screw |
| Phase | 1 |
| Response Time | 5 |
| Special Features | Standard Product |
| Standard | CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186 |
| UPC | 783585060989 |
| GTIN | 00783585060989 |
| Item Type | Duplex |
| Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Type of Indicators | LED and Audible Alarm |
| Voltage Rating | 125 |
