SQUARE D

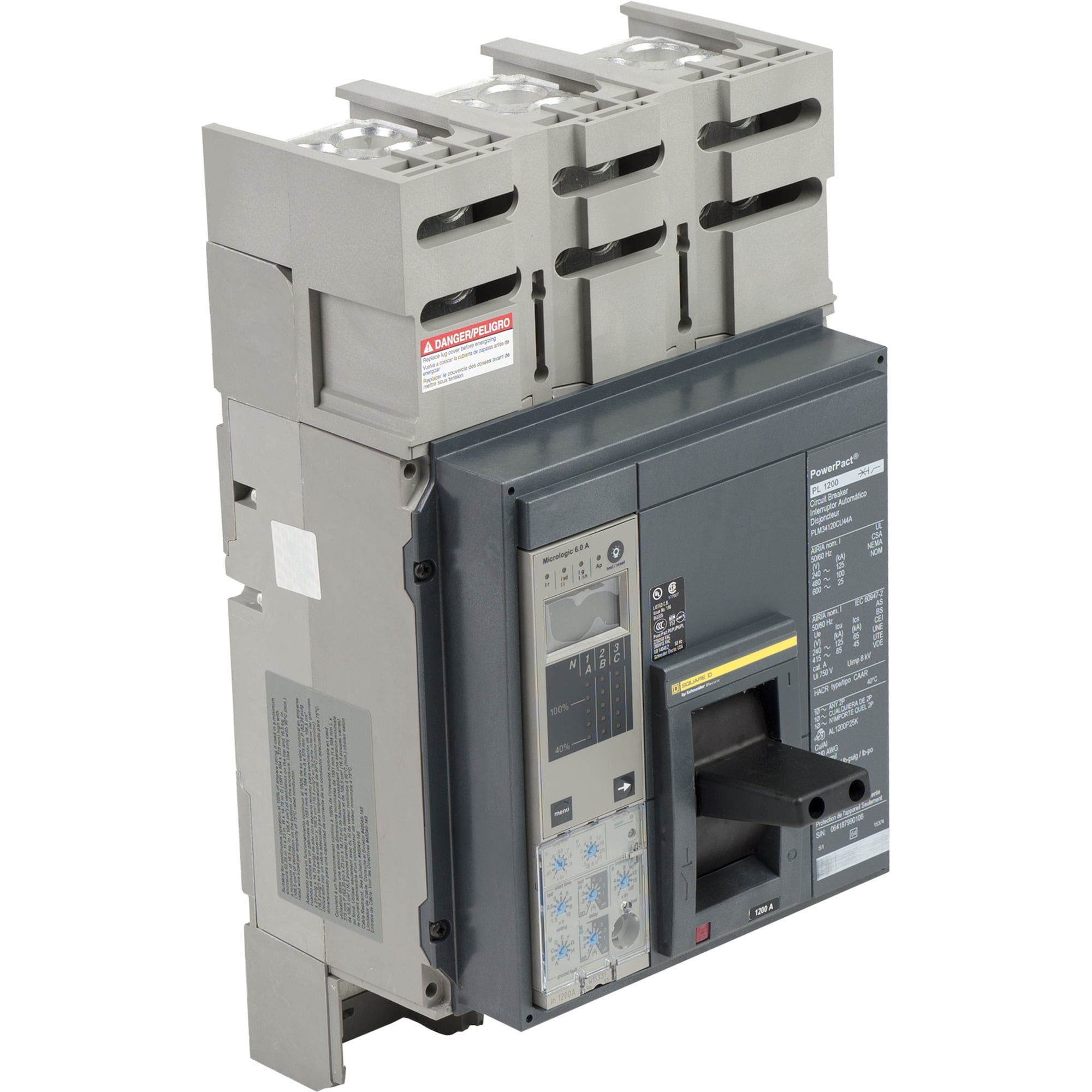

PLM34080CU33A PowerPact MasterPact Molded Case Circuit Breaker, 480 V AC, 800 A, 100 kA Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
PLM34080CU33A
Item #:
531268

Availability

Location Available Qty
Available Available to Order
$22,927.70 each

PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 5.0 trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This break has lugs on the line side and terminal nuts on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 100kA at 480VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number PLM34080CU33A
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin Unknown
Made in USA No
Application Distribution
Connection Lugs, line;terminal nut, load; 3 x AWG 3/0...500 kcmil aluminium/copper
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458436285&lang=en-us
Item Type Circuit breaker
Width 8.27
Width UOM Inch
Height 12.86
Height UOM Inch
Trip Type Electronic, standard, MicroLogic 5.0, LSI
