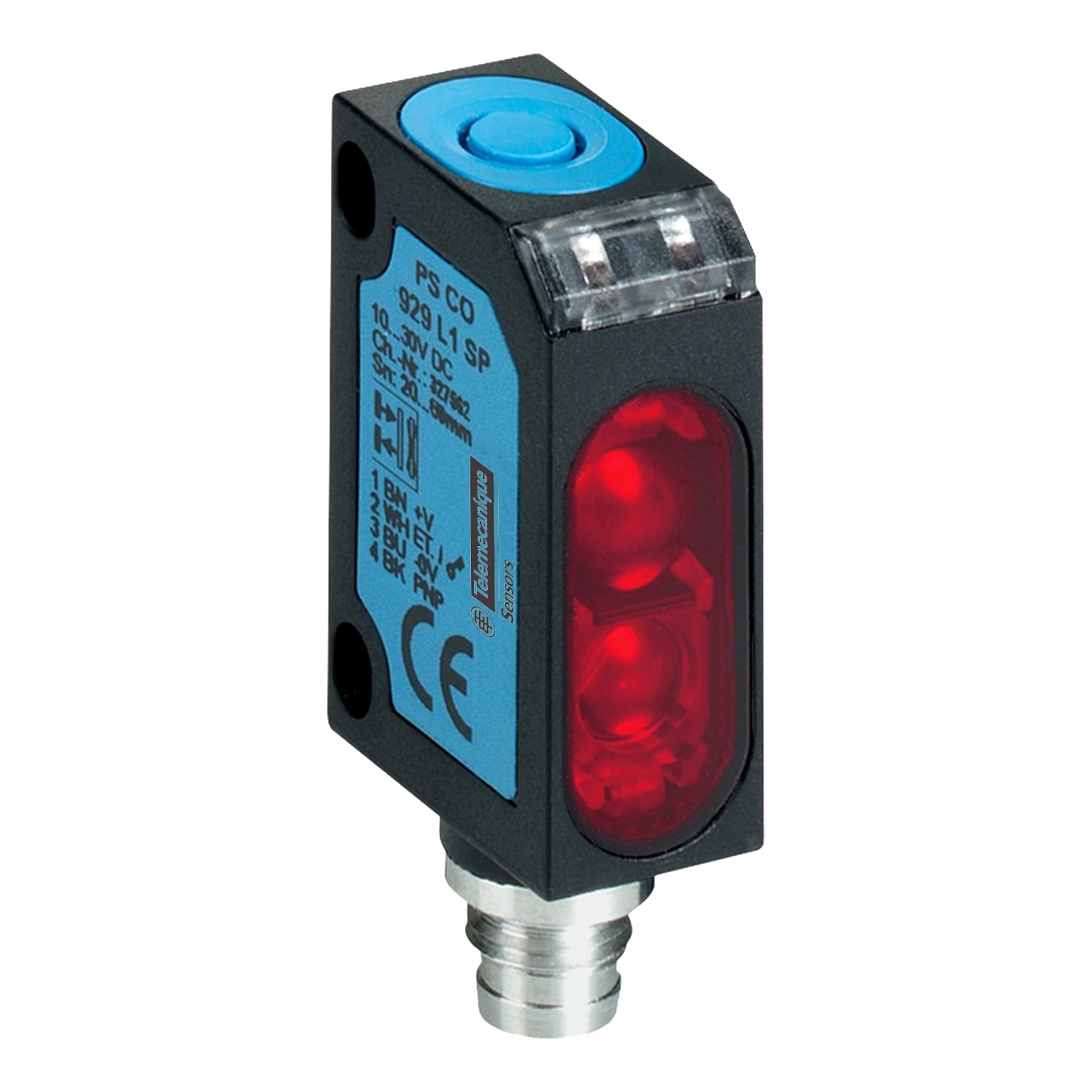

XUYPSCO929L1SP OsiSense XU XUY Series Miniature Proximity Sensor, 0.03 to 0.2 ft, Pulsed Red LED Sensing Beam, 3 us Response, PNP 1NO-1NC/Programmable Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUYPSCO929L1SP
- UPC:
- 785901589990
- Item #:
- 530753
XUYPSCO929L1SP OsiSense XU XUY Series Miniature Proximity Sensor, 0.03 to 0.2 ft, Pulsed Red LED Sensing Beam, 3 us Response, PNP 1NO-1NC/Programmable Output
- MFR #:
- XUYPSCO929L1SP
- UPC:
- 785901589990
- Item #:
- 530753
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a miniature design. It has a diffuse with background suppression detection system. It supports 0.01m to 0.06m nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP solid state discrete output. It is furnished with 4-pin M8 male connector for electrical connection. It is an IP67 rated product. It has a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of <30ma and a switching frequency of 1000hz. this sensor has red led pulsed class 2 conforming to iec 825-1 emission. the enclosure is made of abs. it weighs 0.056kg. it is ideal for material handling packaging labelling assembly lift escalators or food and beverage industries. this product is certified by ce and culus. this sensor has 2 leds for supply on dirty and output state.>
Manuals and Documentation
| Catalog Number | XUYPSCO929L1SP |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Monitoring of small parts on production machine;setting up of sensors |
| Connection | 1 male connector M8, 4 pins |
| Enclosure | ABS,IP67 CONFORMING TO IEC 60529 |
| Output | PNP;1 NO or 1 NC programmable;Discrete;Solid state |
| Sensing Range | 0.01-0.06 M,> 0...0.98 FT (> 0...0.3 M) |
| Special Features | Supply on/dirty 1 LED green);output state 1 LED yellow) |
| Standard | IP67 IEC 60529,CULUS-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=13319788&lang=en-us |
| UPC | 785901589990 |
| GTIN | 03389119009850 |
| Item Type | Application assembly;Diffuse with background suppression;Miniature;Photo-electric sensor |
| Size | MINIATURE |
| Operating Temperature | -20-60 A�C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
