Telemecanique

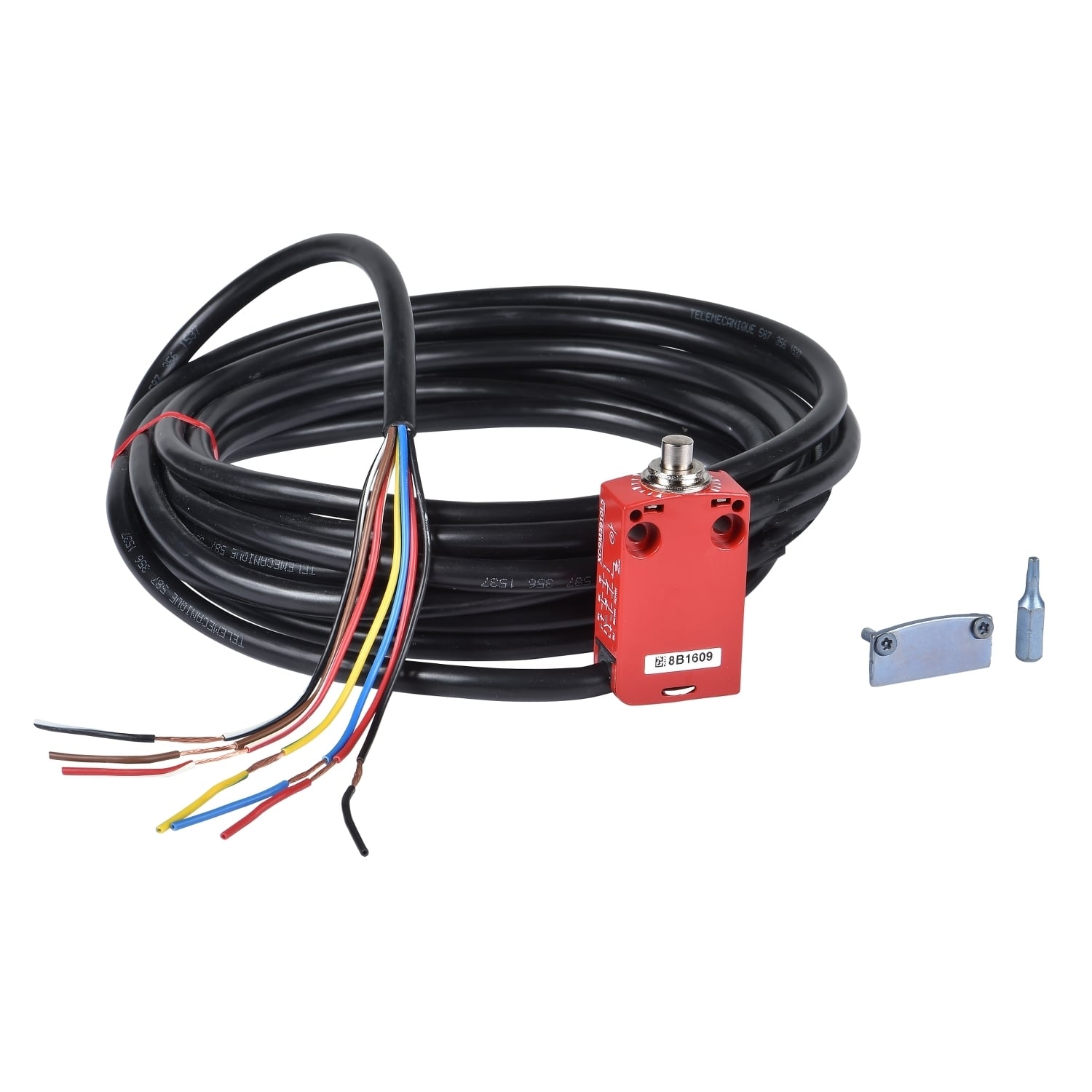

XCSM3702L2 Preventa Miniature Safety Limit Switch, 240 V AC, 5 A, Roller Plunger Actuator, 1NO-2NC Contact, 3 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSM3702L2
Item #:
530647

Availability

Location Available Qty
Available Available to Order
$204.11 each

This XCSM Miniature Safety Limit Switch has a roller plunger, a Zamak body and head and a 2 meter pre-cabled. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 / IP68 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSM3702L2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Morocco
Made in USA No
Action Lateral approach;Slow-break, break before make;By 30 Degrees cam
Actuator Roller plunger
Application PLUNGER HEAD
Connection Pre-cabled
Contact Configuration 1 NC + 1 NC + 1 NO
Mounting By The Body
Number of Poles 3
Special Features Plastic protective cover, secured by 5-lobe socket head safety screw
Standard 25 GN 10-500 HZ)IEC 60068-2-6,25 GN 18 MS IEC 60068-2-27,EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14-EN 1088-EN/IEC 60204-1,IK06 EN 50102,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL-CSA,CLASS I NF C 20-030-CLASS I EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859670&lang=en-us
GTIN 03389110244151
Item Type Safety limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
