Appleton

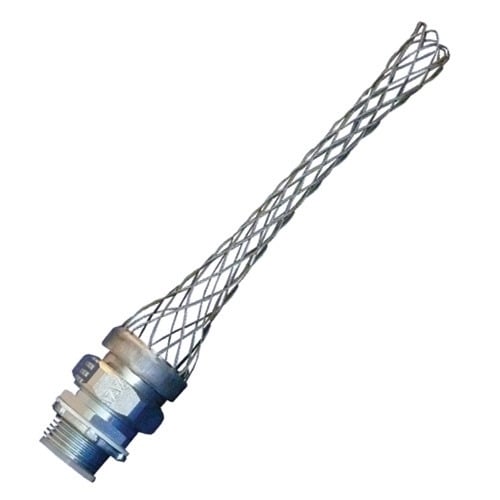

STB-100SR Insulated Throat Oiltight Raintight Liquid Tight Conduit Connector With Stainless Steel Wire Mesh Strain Relief, 1 in Trade, 1.29 to 1.32 in Cable Openings, For Use With Liquid Tight Flexible Metallic Conduit, Steel

MFR:
Appleton Electric
MFR #:
STB-100SR
UPC:
781381513180
Item #:
529655

Availability

Location Available Qty
Available Available to Order
$263.22 each

Appleton STB Series Straight Liquidtight Connector With Wire Mesh Strain Relief, Size: 1 IN, Material: Steel, Finish: Zinc Electroplate, Insulation: Insulated Throat, Dimensions: 1.63 IN Length X 1.81 IN Height, Thread Length: 3/4 IN, Outside Diameter: 1.29 - 1.32 IN, Standard: Class I, Division 2, UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1, For Liquidtight Flexible Metal Conduit To Threaded Hubs

Manuals and Documentation
Catalog Number STB-100SR
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit To Threaded Hubs
Finish Zinc Electroplate
Insulation Insulated Throat
Material Steel
Special Features Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Stainless steel wire mesh prevents pull-out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection; Insulated throat protects against wire damage; Suitable for wet locations; STB Series has full, machined tapered threads (NPT); For use with liquidtight flexible metal conduit subjected to flexure, vibration, motion or strain
Standard Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
UPC 781381513180
GTIN 00781381513180
Item Type STB Series Straight Liquidtight Connector With Wire Mesh Strain Relief
Size 1
