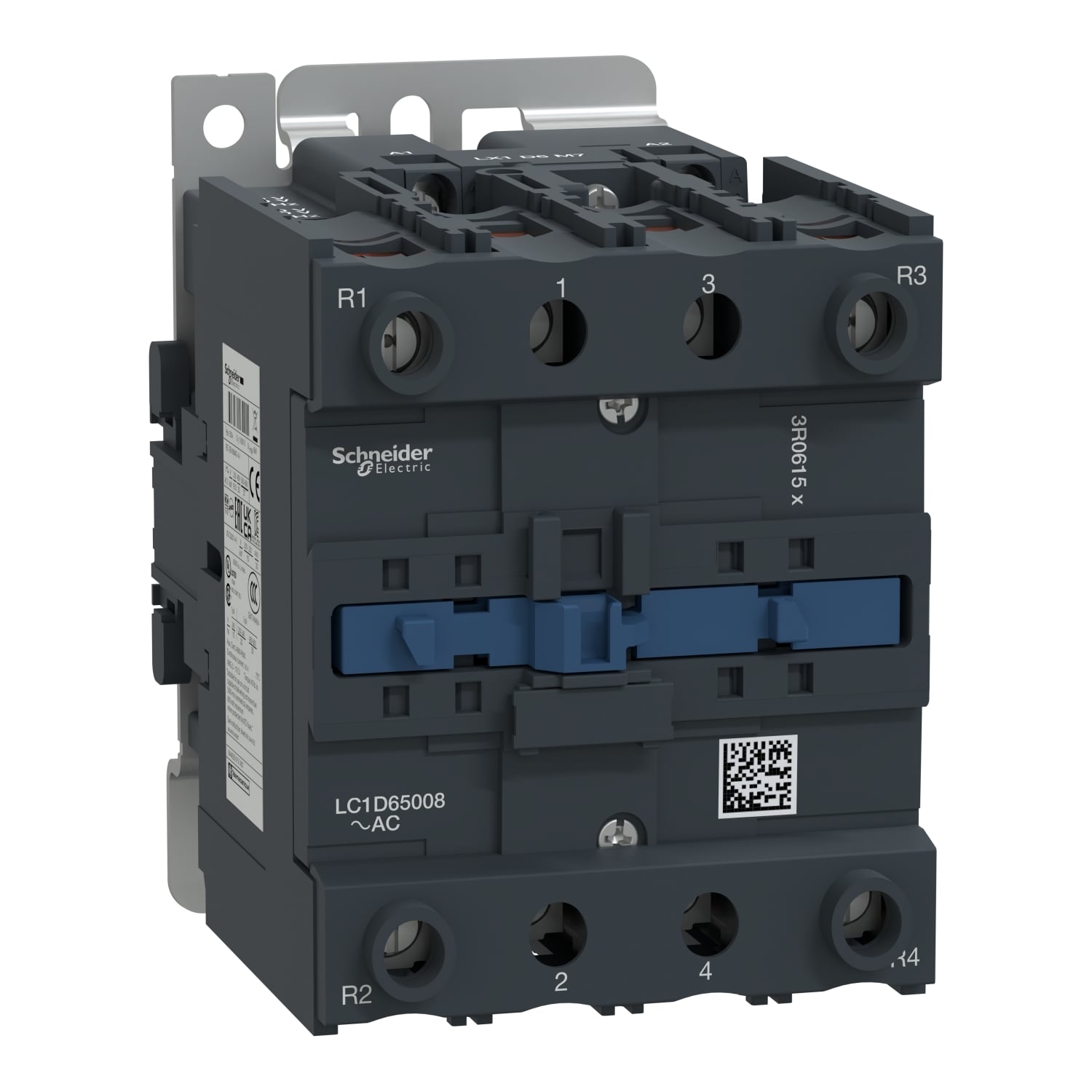

LC1D65008E7 LC1D Series Contactor, 48 V AC v coil, 80 A, 2 NO + 2 NC contact, 4 poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D65008E7
- Item #:
- 524714
LC1D65008E7 LC1D Series Contactor, 48 V AC v coil, 80 A, 2 NO + 2 NC contact, 4 poles
- MFR #:
- LC1D65008E7
- Item #:
- 524714
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 80A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 48V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.20 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D65008E7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load |
| Coil Voltage | 48 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid without cable end;pow |
| Contact Configuration | 2 NO + 2 NC |
| Mounting | Rail Plate |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4049565&lang=en-us |
| GTIN | 03389110072891 |
| Item Type | Contactor |
