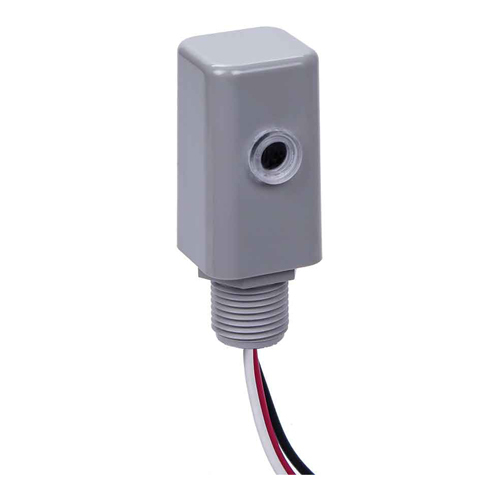

EK4136S Electronic Stem Mounting Photocontrol, 105 to 305 V AC, 1000 W Tungsten, 1800 VA Ballast, Box/Fixture Mount, Plastic
- MFR:
- Intermatic
- MFR #:
- EK4136S
- UPC:
- 078275146297
- Item #:
- 523536
EK4136S Electronic Stem Mounting Photocontrol, 105 to 305 V AC, 1000 W Tungsten, 1800 VA Ballast, Box/Fixture Mount, Plastic
- MFR #:
- EK4136S
- UPC:
- 078275146297
- Item #:
- 523536
Availability
| Location | Available Qty |
|---|---|
| Available | 62 |
$32.42
each
NightFox electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. -14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8 diameter. Come with 9" wire leads.
Manuals and Documentation
| Catalog Number | EK4136S |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Enclosure | NEMA 410 |
| Frequency Rating | 50/60 HZ |
| Mounting | Stem Fixed Mount |
| Operating Cycles | 10000 |
| Sensitivity | 1.5 FC ON, 2.25 FC OFF |
| Sensor | Solid State Photo Sensor (Silicon IR Filtered) |
| Special Features | Features: Long Life, Electronic Photocell, Zero-cross technology, LED Fixtures Totaling 1650 W @ 277 VAC, Fail mode: ON, Side Lens, UV Stabilized |
| Standard | ANSI C136.24 Compliant, UL Certified to US, CSA Certified to Canadian, Title CA 20 Listed |
| Supply Voltage | 105 - 305 VAC |
| UPC | 078275146297 |
| GTIN | 00078275146297 |
| Item Type | Stem Style Photocell |
| Size | 1.3 WIDTH X 1.24 DEPTH X 2.25 HEIGHT IN, 33.02 WIDTH X 31.49 DEPTH X 57.15 HEIGHT MM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
| Timing Range | 2 - 5 S |
