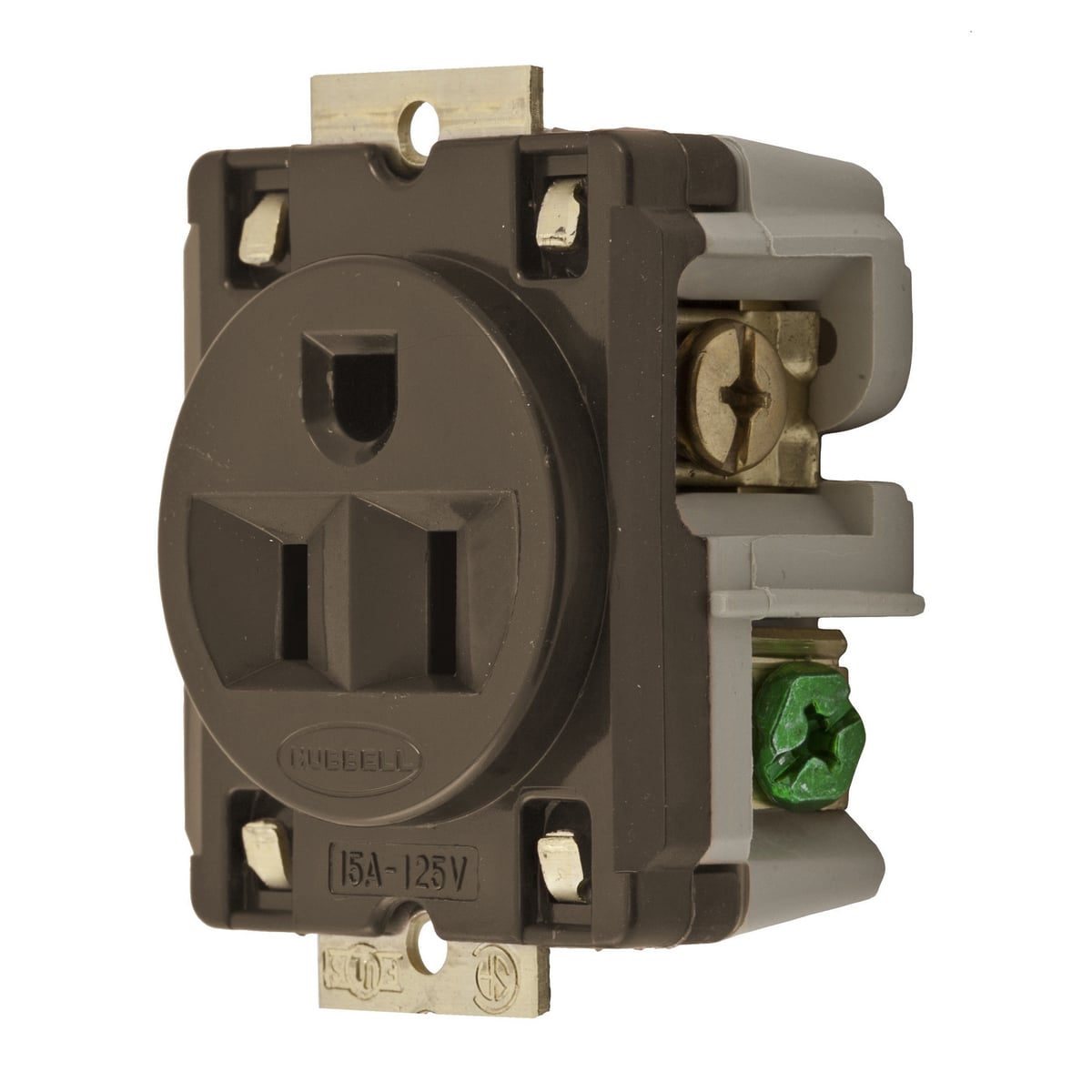

HBL5284 1-Phase Extra Heavy Duty Grounding Standard Sized Panel Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5284
- UPC:
- 783585014227
- Item #:
- 522652
HBL5284 1-Phase Extra Heavy Duty Grounding Standard Sized Panel Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown
- MFR #:
- HBL5284
- UPC:
- 783585014227
- Item #:
- 522652
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$27.74
each
Manuals and Documentation
| Catalog Number | HBL5284 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Extra Heavy Duty Specification Grade |
| Color | Brown |
| Connection | Back and Side Wired |
| Material | Thermoplastic/Composite |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Panel Mount |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585014227 |
| GTIN | 00783585014227 |
| Item Type | Single Receptacle |
| Size | 1.94 in x 1.63 in x 1.19 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #14 AWG to #10 AWG |
