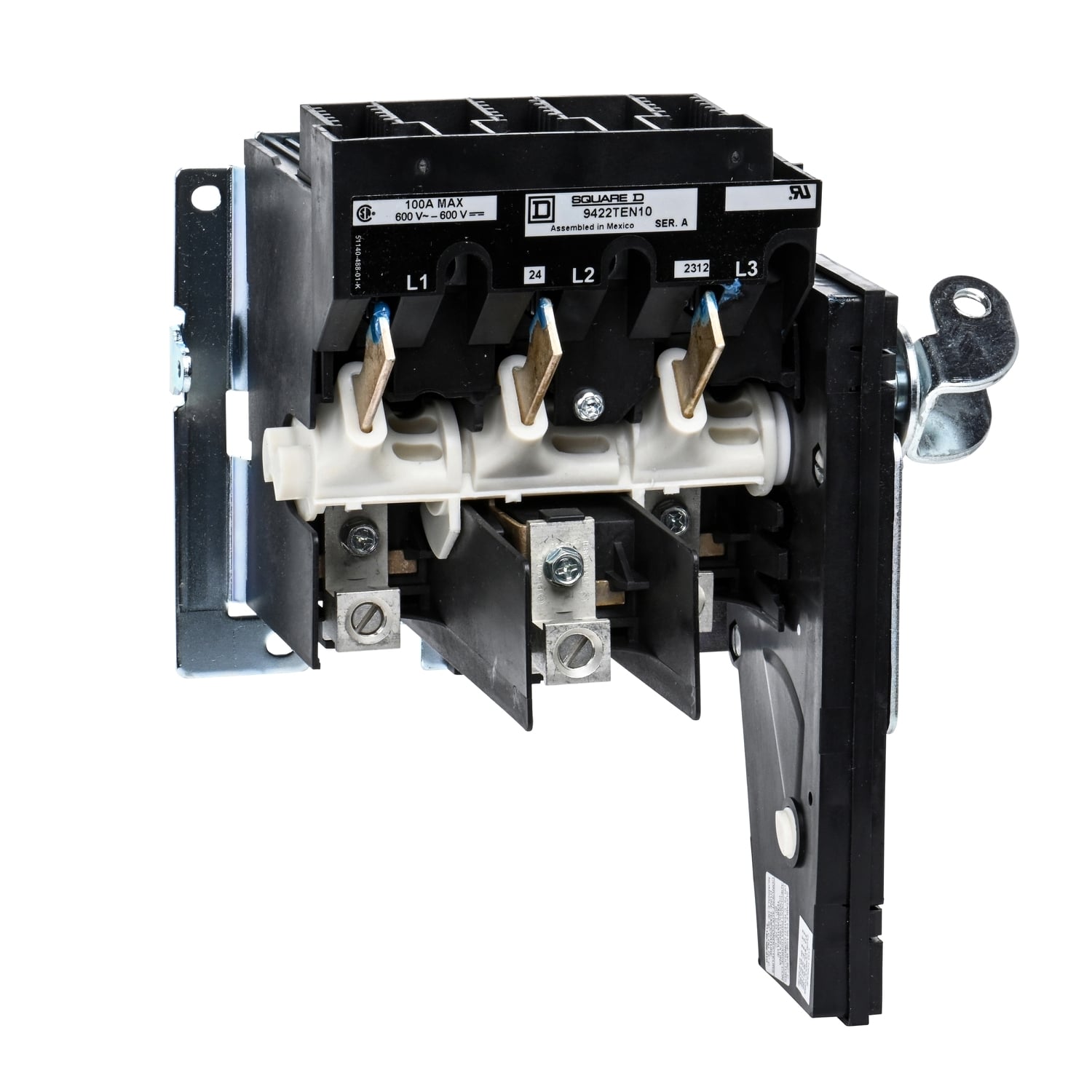

9422ATEN101 Fixed/Variable Depth Non-Fusible Disconnect Switch, 600 V AC, 100 A, 75 hp
- MFR:
- Schneider Electric
- MFR #:
- 9422ATEN101
- UPC:
- 785901872283
- Item #:
- 521
9422ATEN101 Fixed/Variable Depth Non-Fusible Disconnect Switch, 600 V AC, 100 A, 75 hp
- MFR #:
- 9422ATEN101
- UPC:
- 785901872283
- Item #:
- 521
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Manuals and Documentation
| Catalog Number | 9422ATEN101 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565611&lang=en-us |
| UPC | 785901872283 |
| GTIN | 00785901872283 |
