Appleton

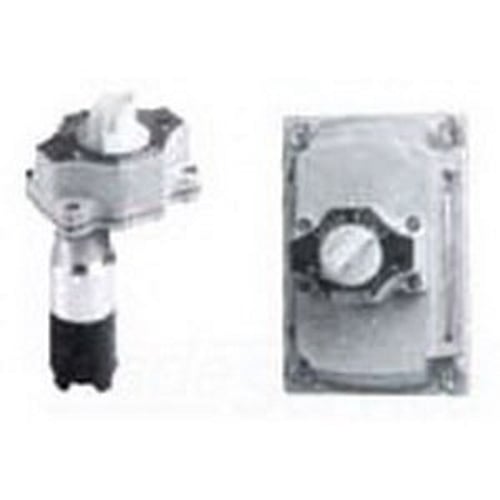

Selector Switch Assembly, 2-Circuit, Series: EDKB, 600 VAC, 10 A, 1NC-1NO Contact Configuration, Maintained Contact Mode, Legend: Hand/Auto, NEMA 3/7/9 Enclosure, Surface Mounting, Aluminum, Natural

MFR:
Appleton Electric
MFR #:
EDKB12
UPC:
781381673884
Item #:
52002

Availability

Location Available Qty
Available Available to Order
$515.67 each

Contender EDKB Series 2 Circuit Selector Switch With Cover, Number Of Steps: 2, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Momenta

Manuals and Documentation
Catalog Number EDKB12
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Contact Configuration 1 NO/1 NC
Contact Rating 10 AMP At 600 VAC
Enclosure NEMA 3, 7CD, 9EFG
Mounting Surface
Number of Steps 2
Special Features Ground screw installed in bodies for ground continuity; Corrosion resistant stainless steel hex head captive screws hold covers to body; Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance; Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long, trouble free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations
Standard UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
UPC 781381673884
GTIN 00781381673884
Item Type EDKB Series 2 Circuit Selector Switch With Cover
