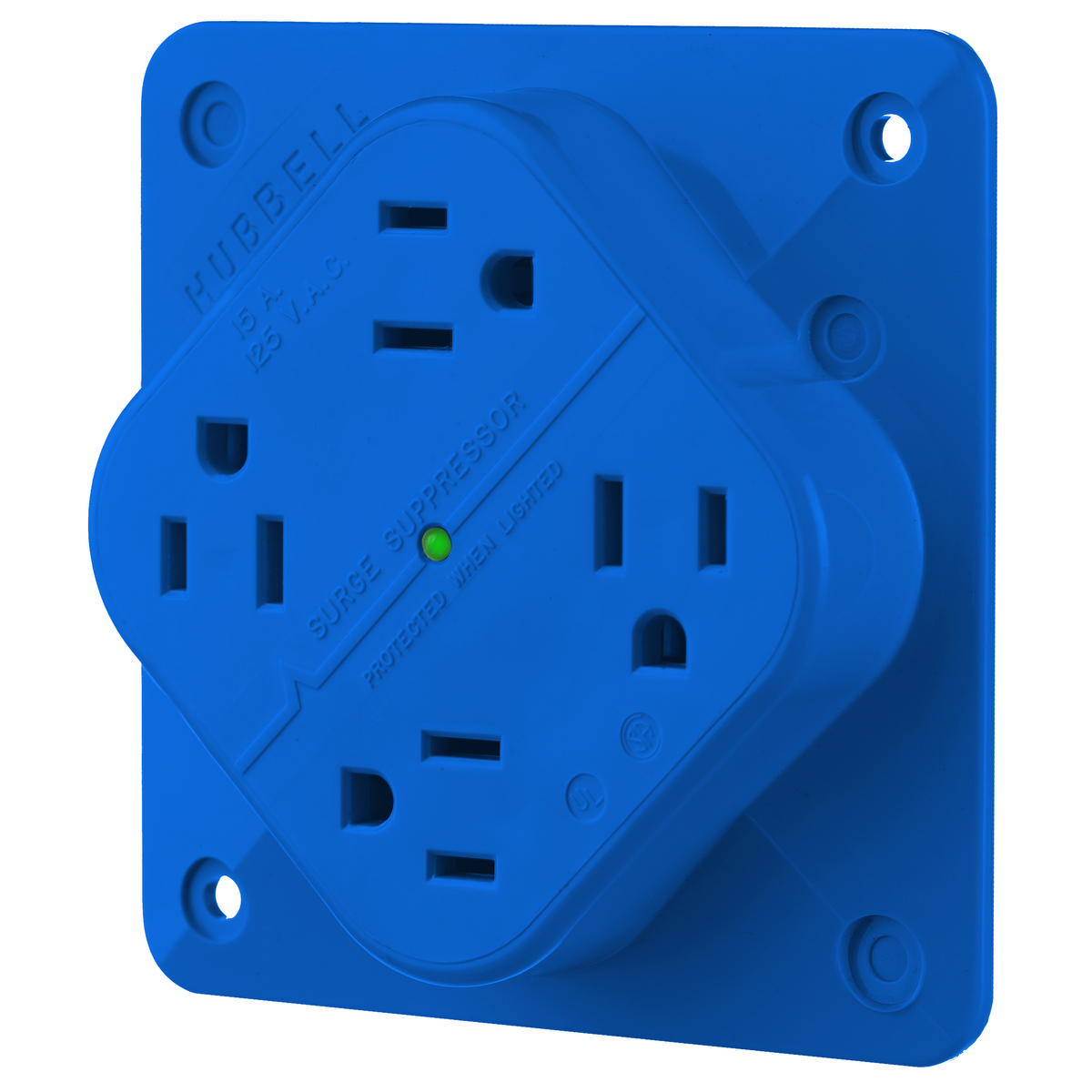

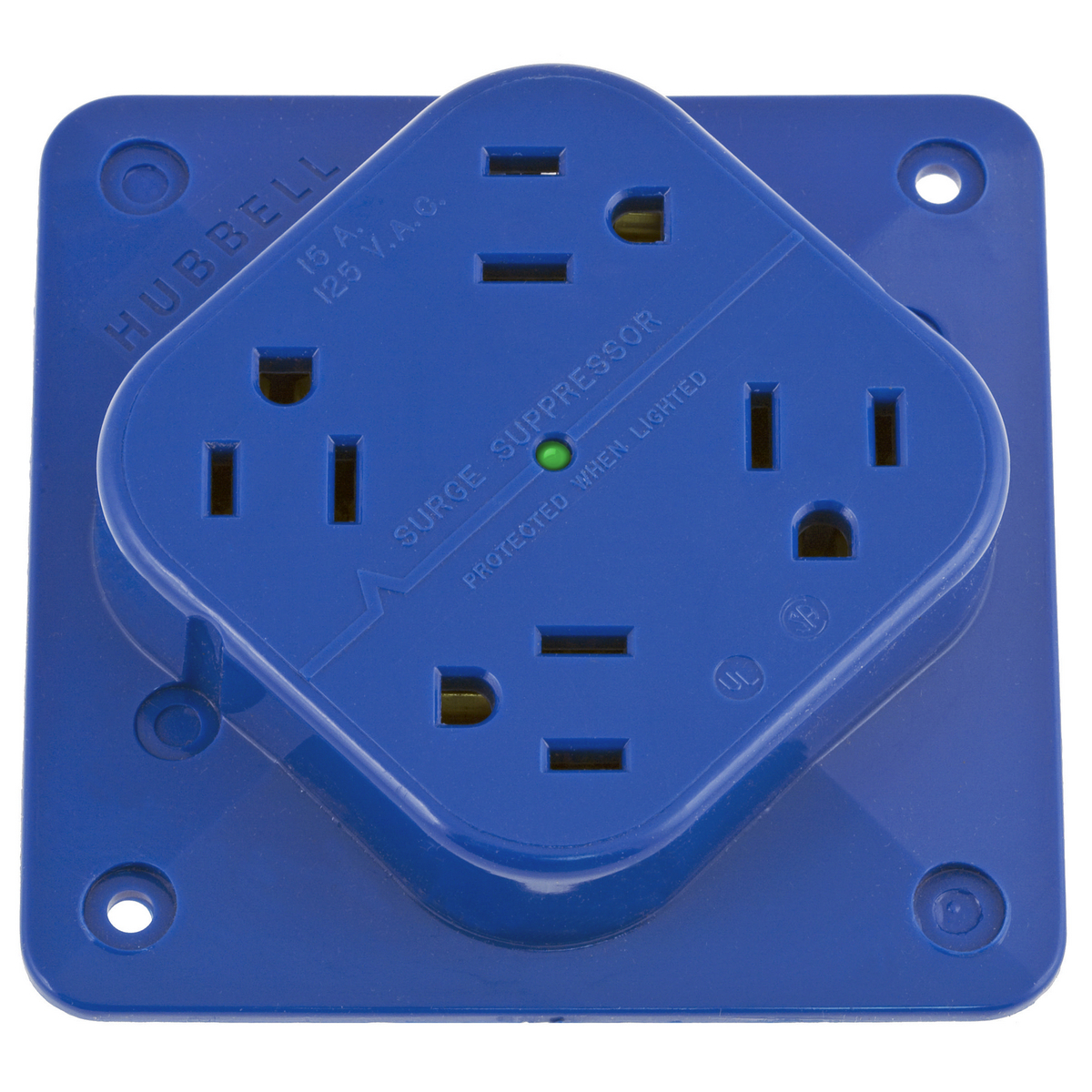

4-PLEX HBL415S Duplex Specification Grade Standard Surge Suppression Receptacle With LED, 125 V AC, 15 A, 60 Hz, 1 Phase
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL415S
- UPC:
- 783585017853
- Item #:
- 51806
4-PLEX HBL415S Duplex Specification Grade Standard Surge Suppression Receptacle With LED, 125 V AC, 15 A, 60 Hz, 1 Phase
- MFR #:
- HBL415S
- UPC:
- 783585017853
- Item #:
- 51806
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$139.07
each
Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.
Manuals and Documentation
| Catalog Number | HBL415S |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | 4-Plex with LED |
| Connection | Terminal Screws |
| Frequency Rating | 60 HZ |
| Material | Polycarbonate |
| Mounting | Screw |
| Phase | 1 |
| Response Time | 5 |
| Special Features | Standard Product |
| Standard | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA® WD-6 Compliant |
| UPC | 783585017853 |
| GTIN | 00783585017853 |
| Item Type | Surge Protection Receptacles |
| Size | 4.30 in x 0.92 in x 4.30 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Type of Indicators | LED Only |
| Voltage Rating | 125 |
