Hubbell Wiring Device - Kellems

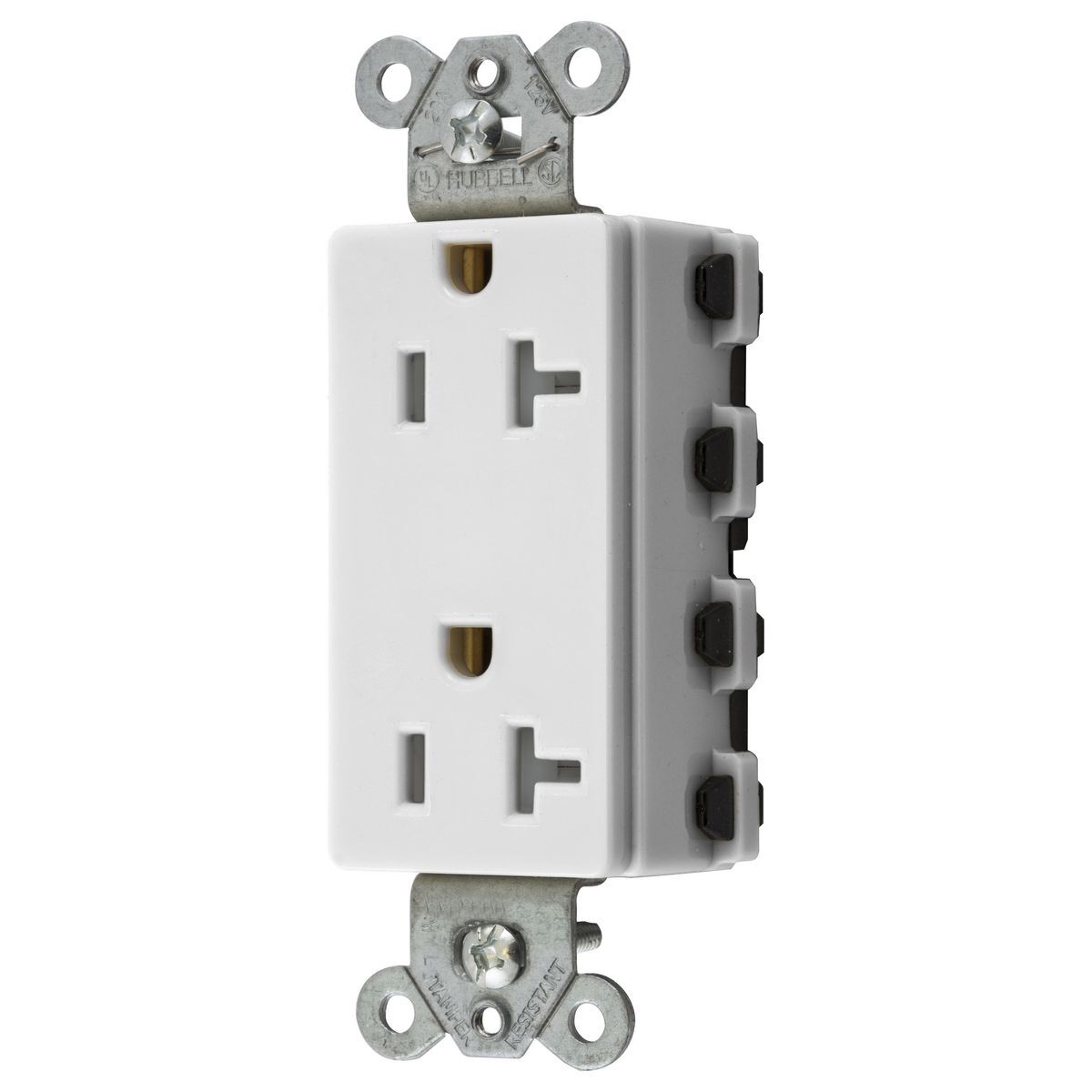

SNAP2162WTRA 1-Phase Decorator Duplex Extra Heavy Duty Standard Tamper Resistant Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP2162WTRA
UPC:
783585551975
Item #:
516817

Availability

Location Available Qty
Available Available to Order
$22.62 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP2162WTRA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Extra Heavy Duty Specification Grade
Color White
Connection Terminal Screws
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Quick Connect- SNAPConnect, Tamper-Resistant, USA Product
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585551975
GTIN 00783585551975
Item Type Standard Duplex
Size 3.28 in x 1.64 in x 1.1 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG
