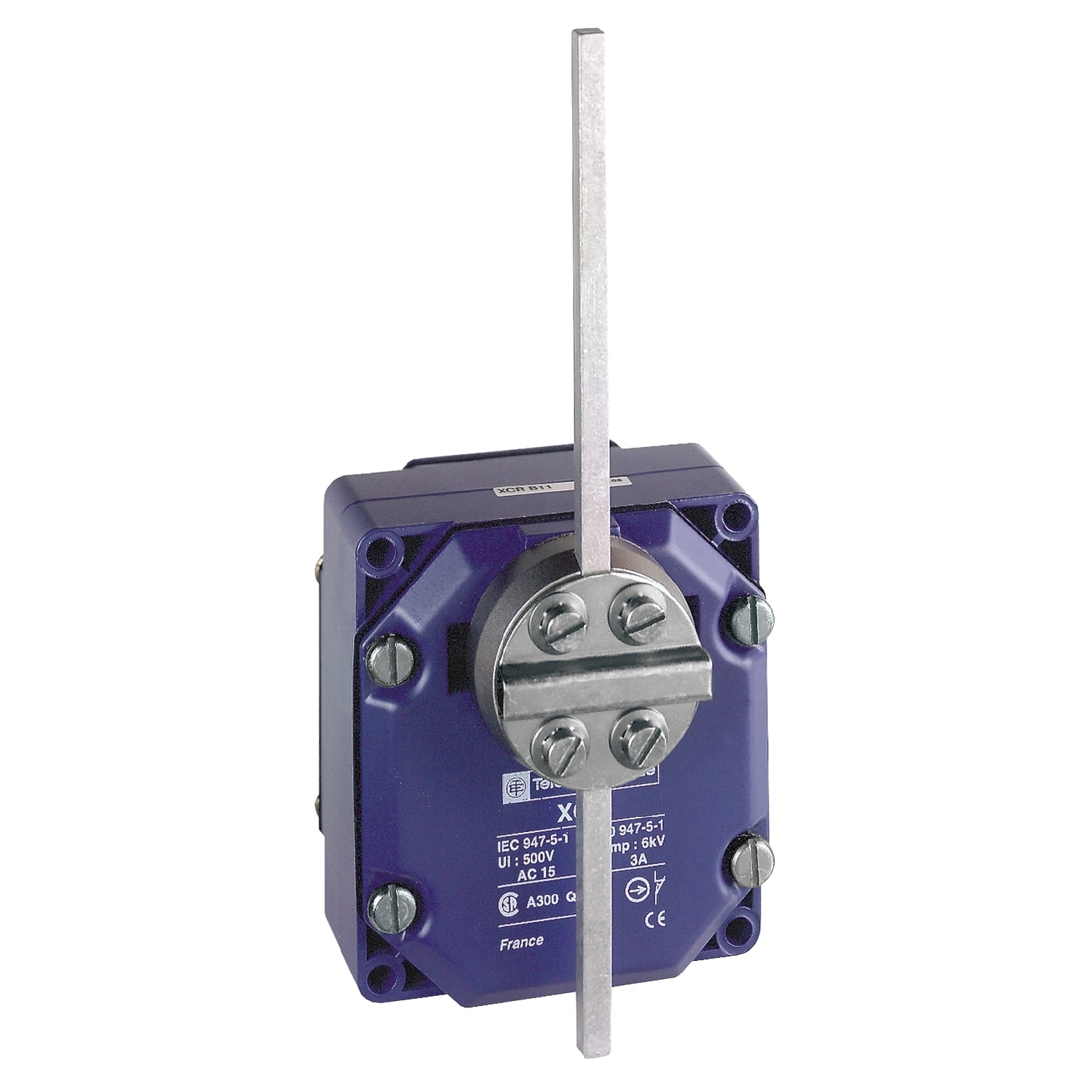

XCRA11 Fixed Limit Switch, 240 V AC, 10 A, Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCRA11
- Item #:
- 515827
XCRA11 Fixed Limit Switch, 240 V AC, 10 A, Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR #:
- XCRA11
- Item #:
- 515827
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$665.07
each
The XCR offer is a range of limit switches designed for hoisting and material handling applications. This product is a complete switch with a metal spring return to off position. The operator is a metal rod of 200mm long. The maximum displacement is 55 in each position.
Manuals and Documentation
| Catalog Number | XCRA11 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Snap action |
| Actuator | Spring return rod lever metal square rod 6 mm;Lateral approach, 2 directions |
| Application | For hoisting and mechanical handling applications |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 2 x (1 NC + 1 NO) |
| Mounting | By The Body |
| Number of Poles | 4 |
| Standard | 68 GN IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,CSA-CCC,EN 60947-5-1-IEC 60947-5-1-EN 60204-1-IEC 60204-1-CSA C22.2 NO 14-NF C 79-130,IP54 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858222&lang=en-us |
| GTIN | 03389110652000 |
| Item Type | Limit switch |
| Size | 2.95 |
| Operating Temperature | -25-70 A Degrees C |
