Discontinued
Square D

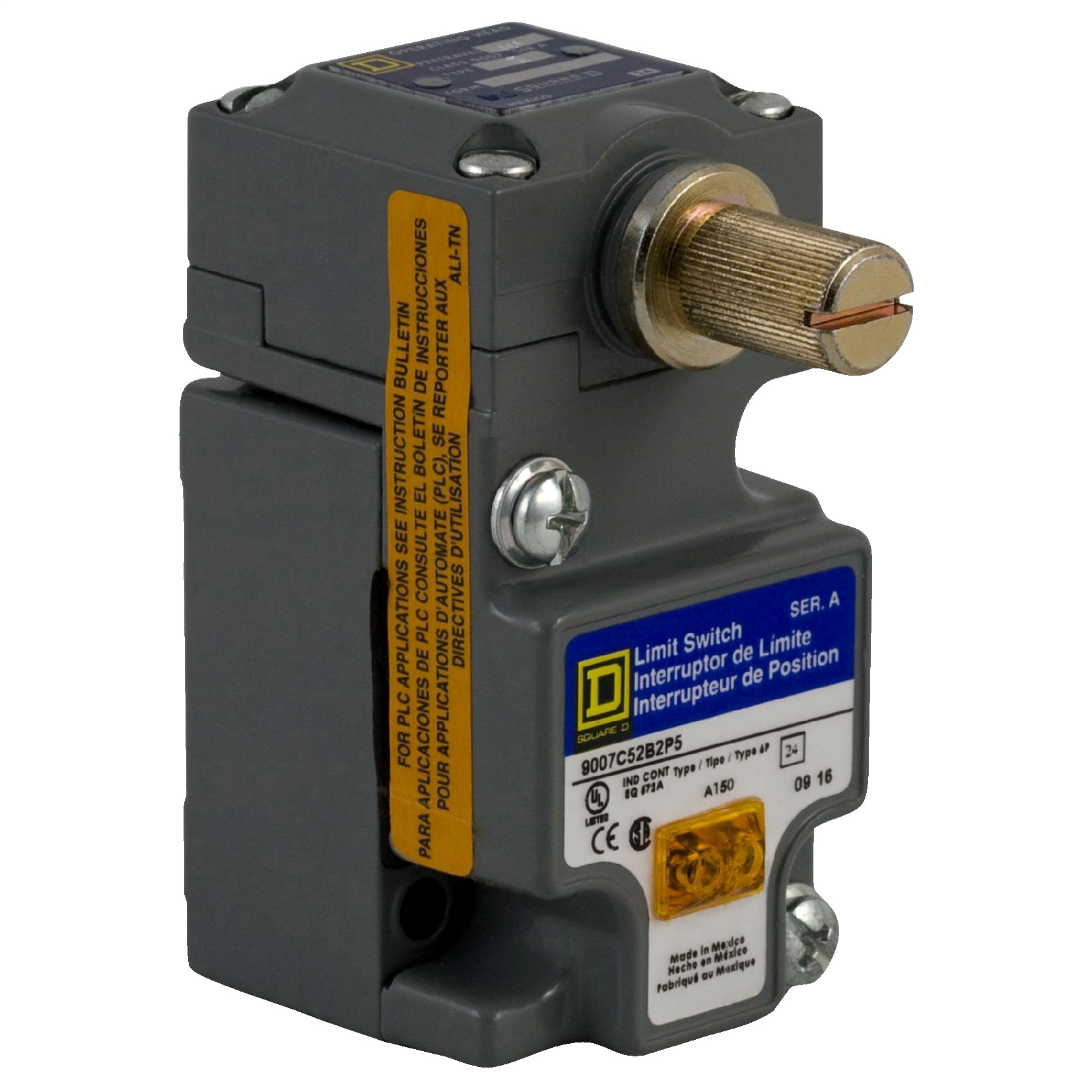

9007C52B2P5 Heavy Duty Standard Format Plug-In Limit Switch, 600 VAC, 10 A, 1NO-1NC Contact, 1 Poles

MFR:
Schneider Electric
MFR #:
9007C52B2P5
UPC:
785901183341
Item #:
514797

Availability

Location Available Qty
Available Available to Order

9007C compact limit switch - 1 NO/NC - rotary head - CW+CCW - standard

Manuals and Documentation
Catalog Number 9007C52B2P5
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action FROM LEFT AND RIGHT-CW AND CCW,LATERAL APPROACH, 1 OR 2 PROGRAMMABLE DIRECTION,SNAP ACTION
Actuator ZINC SPRING RETURN WITHOUT OPERATING LEVER -)9007C LEVER
Amperage Rating 10
Application COMPACT BOX
Connection SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Mounting By The Body
Operating Cycles 1000000 CYCLES
Special Features 1 LED INDICATOR LIGHT LIGHT ON WHEN SWITCH IS ACTUATED)24...120 V AC/DC 100000 H
Standard 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140
UPC 785901183341
GTIN 00785901183341
Item Type LIMIT SWITCH,ROTARY HEAD
Size 1.55 IN,2.5 IN,3.14-3.14 IN
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -20-185 A Degrees F STANDARD ENVIRONMENT
Voltage Rating 6 A 120 V AC, A150 NEMA-0.55 A 120 V DC
