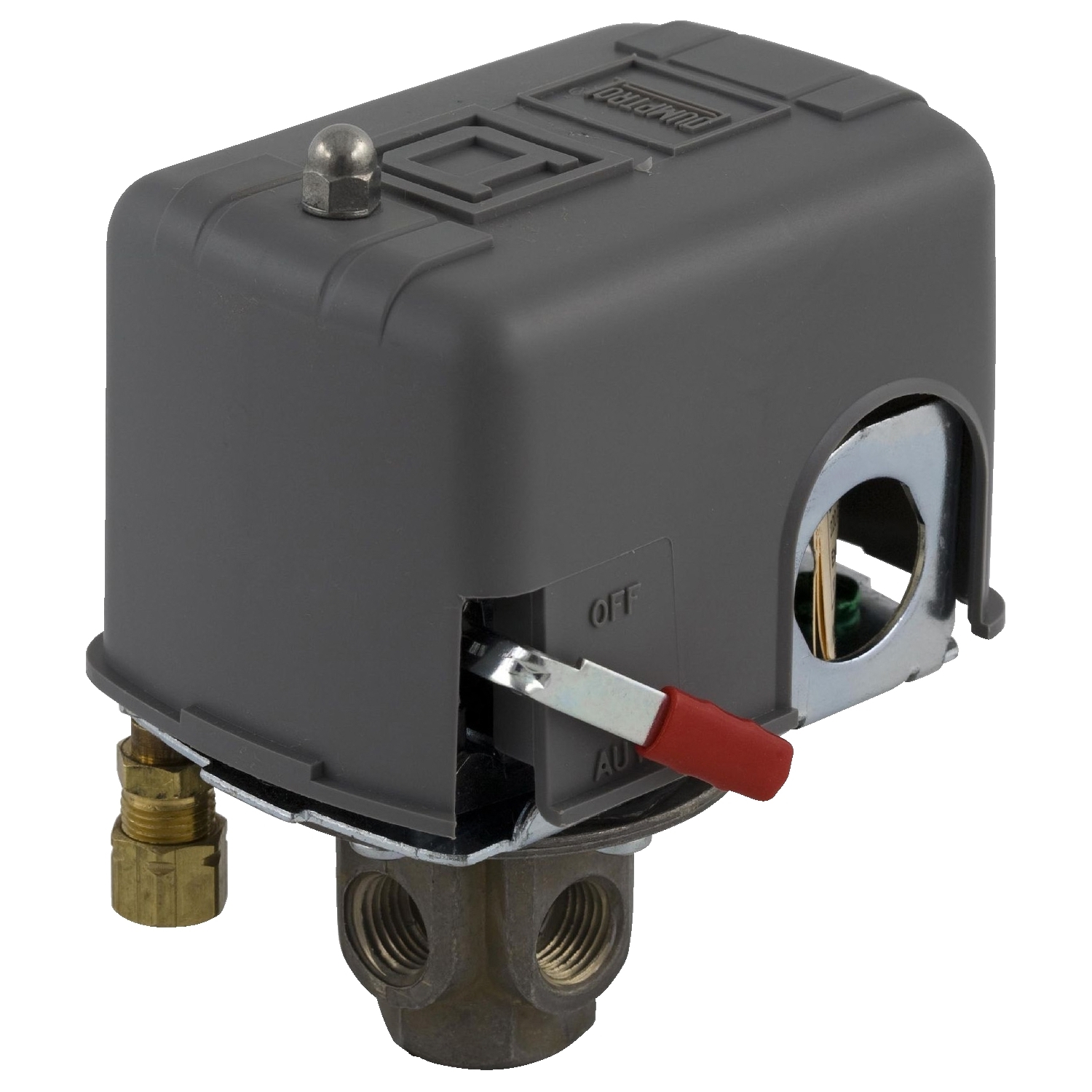

9013FHG14J39M1X Pumptrol Fixed Differential Air Compressor Switch, 135 psi Pressure, 30 psi Differential, 2NC DPST-DB Contact, Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013FHG14J39M1X
- UPC:
- 785901168058
- Item #:
- 514749
9013FHG14J39M1X Pumptrol Fixed Differential Air Compressor Switch, 135 psi Pressure, 30 psi Differential, 2NC DPST-DB Contact, Screw Clamp Connection
- MFR #:
- 9013FHG14J39M1X
- UPC:
- 785901168058
- Item #:
- 514749
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$69.29
each
air compressor switch 9013FH - fixed differential - Off at 135 psi - low hp
Manuals and Documentation
| Catalog Number | 9013FHG14J39M1X |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control small electrically driven air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH 4-WAY FLANGE UL 508 |
| Special Features | Maintained manual cut-out lever (AUTO-OFF);2-way pressure release valve |
| Standard | CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529,UL 508-CE |
| UPC | 785901168058 |
| GTIN | 00785901168058 |
| Item Type | Electromechanical pressure switch;Fixed differential |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 150 PSI |
