SolaHD

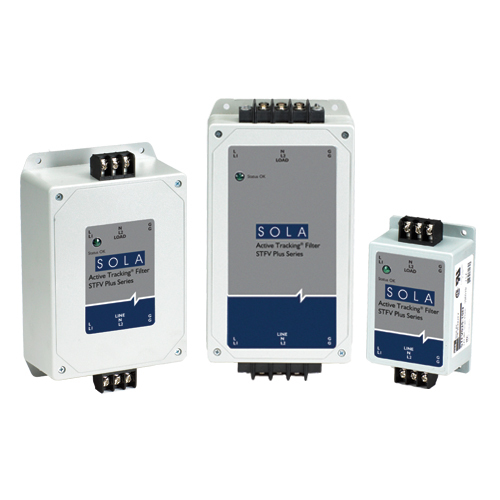

STFV025-24L STFV Plus Active Tracking Filter With Surge Protection, 240 V AC, 2.5 A, 50/60 Hz, 2 W + Ground Wires

MFR:
SolaHD
MFR #:
STFV025-24L
UPC:
783472700370
Item #:
51438

Availability

Location Available Qty
Available Available to Order
$619.60 each
Manuals and Documentation
Catalog Number STFV025-24L
Manufacturer SolaHD
Brand SolaHD
Country of Origin Mexico
Made in USA No
Application Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment
Connection #6 Screw, Minimum Wire Size 26 AWG
Frequency Rating 50/60 HZ
Material High impact plastic case, vacuum impregnated magnetics, epoxy encapsulated
Mounting Panel
Response Time Less than 5 ns
Short Circuit Rating Circuit Breaker Ampacity, Suggest 2.5, Maximum 3.125 AMPS
Special Features Non degrading, series filter/TVSS technology for total durability. UL surge current capacity 25,000 amps. High impact plastic case, epoxy encapsulated enclosure. Transient protection in all modes (L-N, L-G, and N-G). Single phase applications up to 30 amp. Operating temperature from minus 40 deg C to plus 60 deg C. Hardwired connection. LED power indication. Ten year limited warranty.
Standard Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment
UPC 783472700370
GTIN 00783472700370
Item Type STFV Plus Series - Active Tracking Filtering with Surge Protection
Size 4.0 x 2.88 x 1.81
Environmental Conditions Operating Humidity 0 to 95 percent Non-condensing
Operating Temperature minus 40 deg C to plus 60 deg C at full load. Derate Linearly to 60 percent at plus 70 deg C
Type of Indicators Less than 5 ns
Voltage Rating 240
