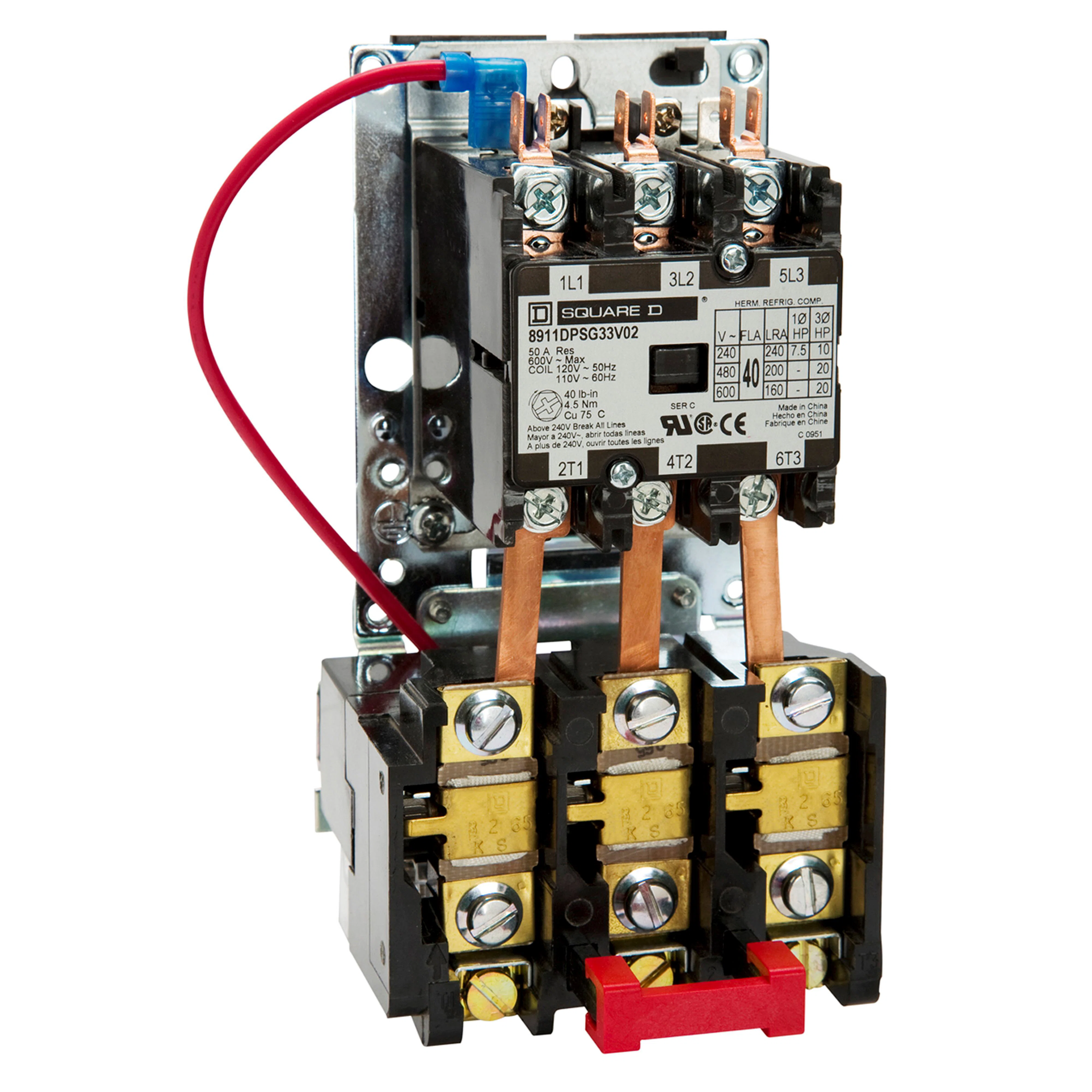

8911DPSO32V02 Type DPS Definite Purpose Starter, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, 2 Poles, Open Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8911DPSO32V02
- UPC:
- 785901342809
- Item #:
- 511020
8911DPSO32V02 Type DPS Definite Purpose Starter, 110 V AC at 50 Hz/120 V AC at 60 Hz V Coil, 2 Poles, Open Enclosure
- MFR #:
- 8911DPSO32V02
- UPC:
- 785901342809
- Item #:
- 511020
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$406.60
each
Definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps and HVAC equipment.
Manuals and Documentation
Features
- Low cost, small size
- Trip-free reset mechanism
- 500000 mechanical operations
| Manufacturer Part Number | 8911DPSO32V02 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901342809 |
| EAN | 0785901342809 |
| Amperage Rating | 30 A |
| Dimensions | 3-1/2 in W x 4 in D x 7 in H |
| Enclosure Type | Open |
| Series | 8911 |
| Type | Type DPS |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 8151853 |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | CSA LR25490 Class 3211 04 | ECCN EAR99 | UL Listed E3190 CCN NLDX2 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Application | Air Compressors, Agricultural Equipment, Pumps and HVAC Equipment |
| Coil Voltage | 110 V AC at 50 Hz/120 V AC at 60 Hz |
| Frequency Rating | 50/60 Hz |
| Motor Power | 2 hp at 115 VAC/5 hp at 230 VAC |
| Number Of Poles | 2 |
| Phase | 1 |
| Reset Type | Thermal Melting Alloy |
