Hubbell Wiring Device - Kellems

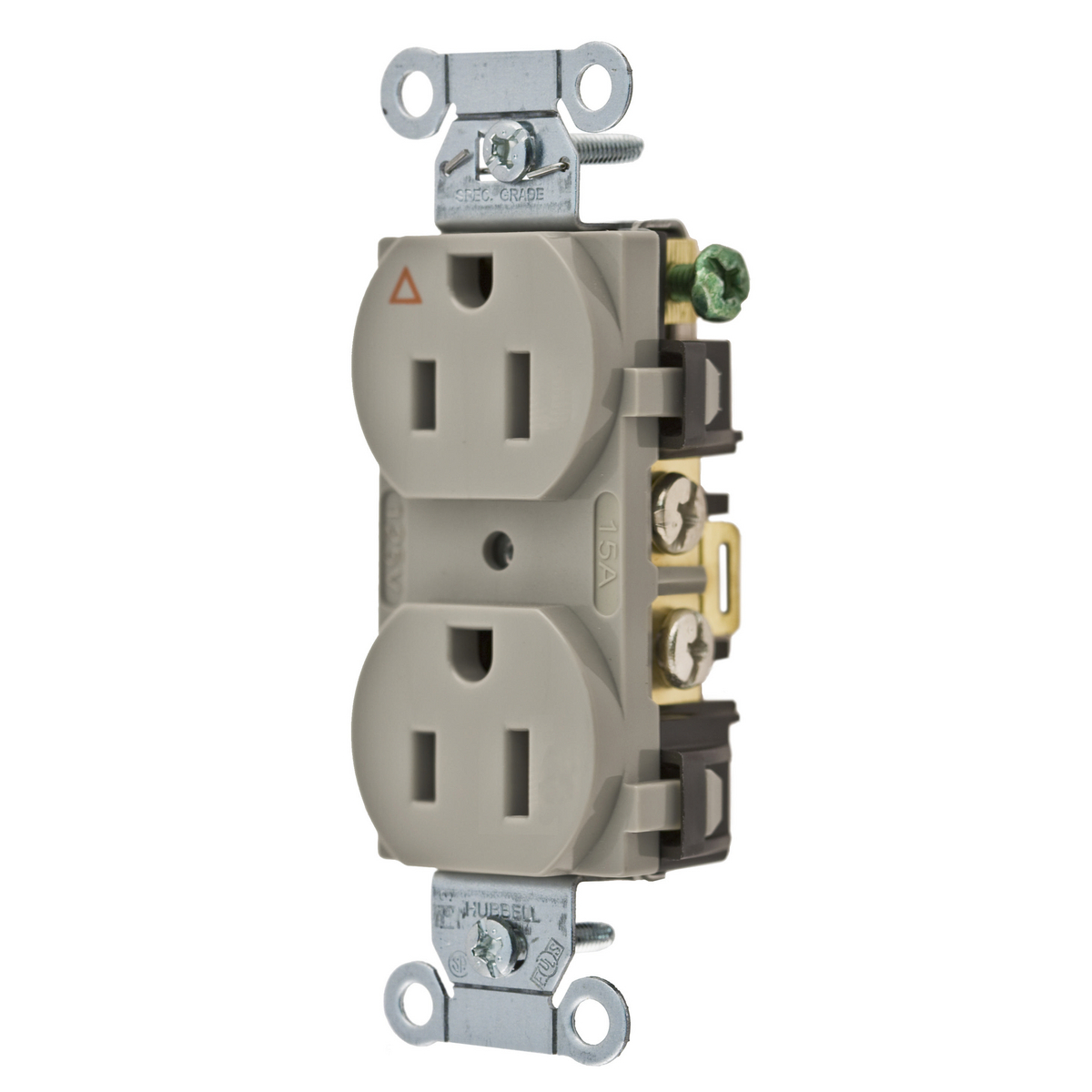

IG15CRGRY 1-Phase Corrosion-Resistant Duplex Isolated Ground Standard Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
IG15CRGRY
UPC:
783585147598
Item #:
508640

Availability

Location Available Qty
Available Available to Order

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

Manuals and Documentation
Catalog Number IG15CRGRY
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Commercial Specification Grade
Color Gray
Connection Back and Side Wired Screw Terminals
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Isolated Ground
Standard Certified to CSA C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585147598
GTIN 00783585147598
Item Type Standard Duplex
Size 1.32 in x 0.83 in x 3.28 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #14 AWG to #10 AWG
