7547000 1-Piece Vertical Zero Potential Ground Rail, For Use With DK, TS Series 2000 mm H Enclosure, 200 A, Electro Copper
- MFR:
- Rittal
- MFR #:
- 7547000
- UPC:
- 639889133556
- Item #:
- 507759
7547000 1-Piece Vertical Zero Potential Ground Rail, For Use With DK, TS Series 2000 mm H Enclosure, 200 A, Electro Copper
- MFR #:
- 7547000
- UPC:
- 639889133556
- Item #:
- 507759
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$507.79
each

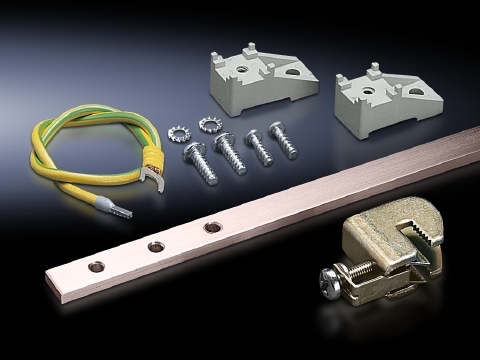

Earth rail, vertical, for TS, supply includes: Earth rail made from E-Cu 57 to DIN EN 12 163, DIN EN 13 601, 15 x 5 mm, 16 conductor connection clamps 2.5 to 16 mm, 15 earthing leads 6 mm, L = 500 mm, Assembly parts, description: The supplied earth conductors facilitate star earthing of the cable clamp straps in thepatch panels, the earth terminals are fully adjustable, current carrying capacity of rails approx. 200 A.
| Catalog Number | 7547000 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Material | Electro Copper |
| Standard | DIN EN 12 163, DIN EN 13 601 |
| UPC | 639889133556 |
| GTIN | 00639889133556 |
| Item Type | Earth Rail |
| Length | 1800 |
| Length UOM | Millimeter |
