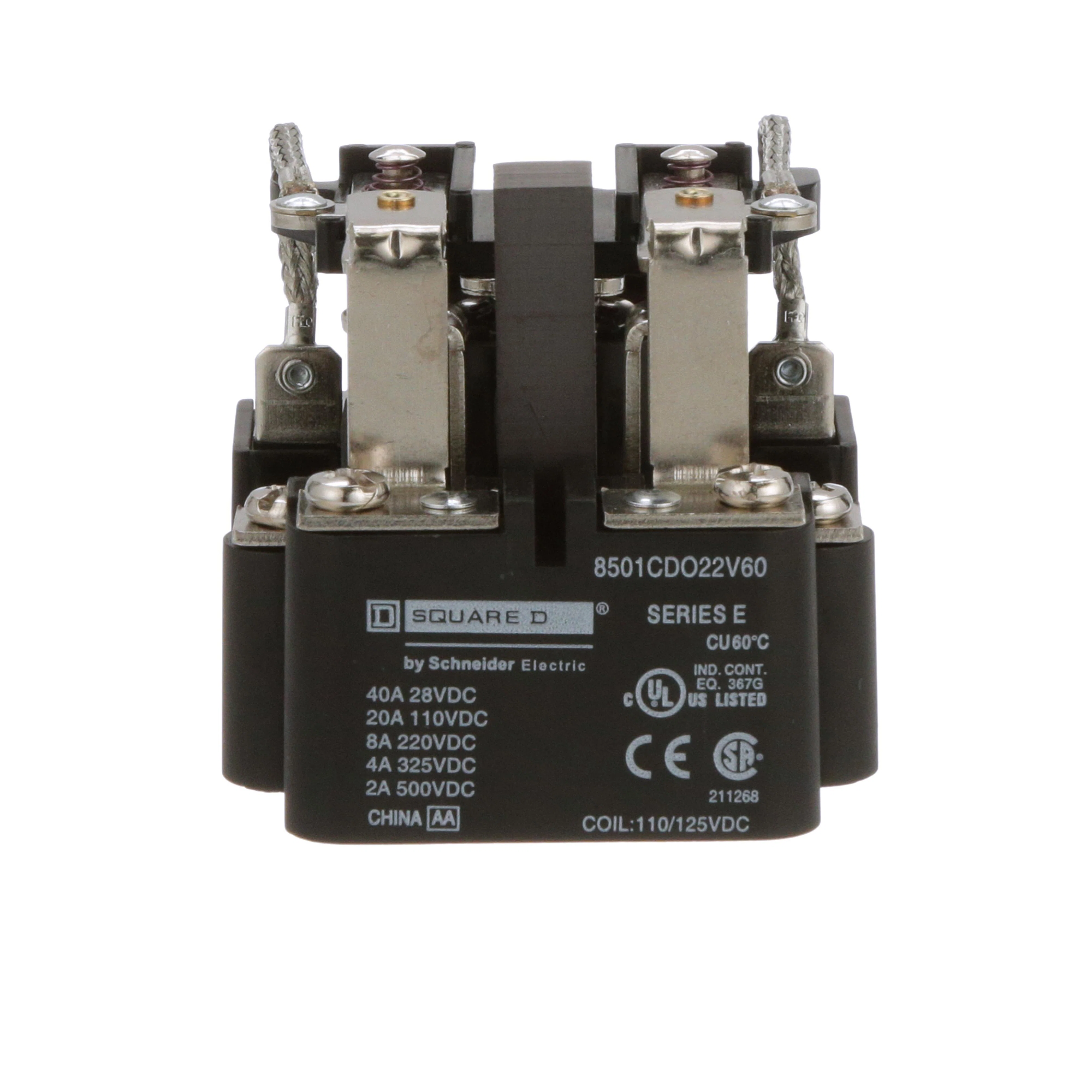

8501CDO22V60 8501C 1-Phase Power Relay, 4 A, 2NO-2NC 2 Form C Contact, 110 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501CDO22V60
- UPC:
- 785901052234
- Item #:
- 50535
8501CDO22V60 8501C 1-Phase Power Relay, 4 A, 2NO-2NC 2 Form C Contact, 110 V DC V Coil
- MFR #:
- 8501CDO22V60
- UPC:
- 785901052234
- Item #:
- 50535
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$288.48
each
8501C power relays are used to control VDC loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration for VDC loads with two normally open and two normally closed contacts. A variety of coil voltages are available. This relay has a 110 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for 10 A resistive rating at 110 VDC or 4 A resistive rating at 220 VDC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Manuals and Documentation
Features
- Durable open frame construction
- 325 VAC maximum switching voltage
- 30 A line rated current
| Manufacturer Part Number | 8501CDO22V60 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| UPC | 785901052234 |
| EAN | 0785901052234 |
| Country Of Origin | CN |
| Amperage Rating | 4 A |
| Mounting Type | Panel |
| Series | 8501C |
| Temperature Rating | -22 to 140 deg F |
| Type | 1-Phase |
| Alternative Part Number | 7994315 | 7315924 |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | UL File No. E78351 | CSA File No. 218139 | IEC 60947-4-1 | RoHS Compliant |
| Application | Controlling Single-Phase Motors, Electric Heaters, Pumps, Conveyors and Material Handling Equipment |
| Coil Voltage | 110 V DC |
| Contact Form | 2NO-2NC 2 Form C |
| Terminal Type | Screw Clamp |
