Discontinued
Square D

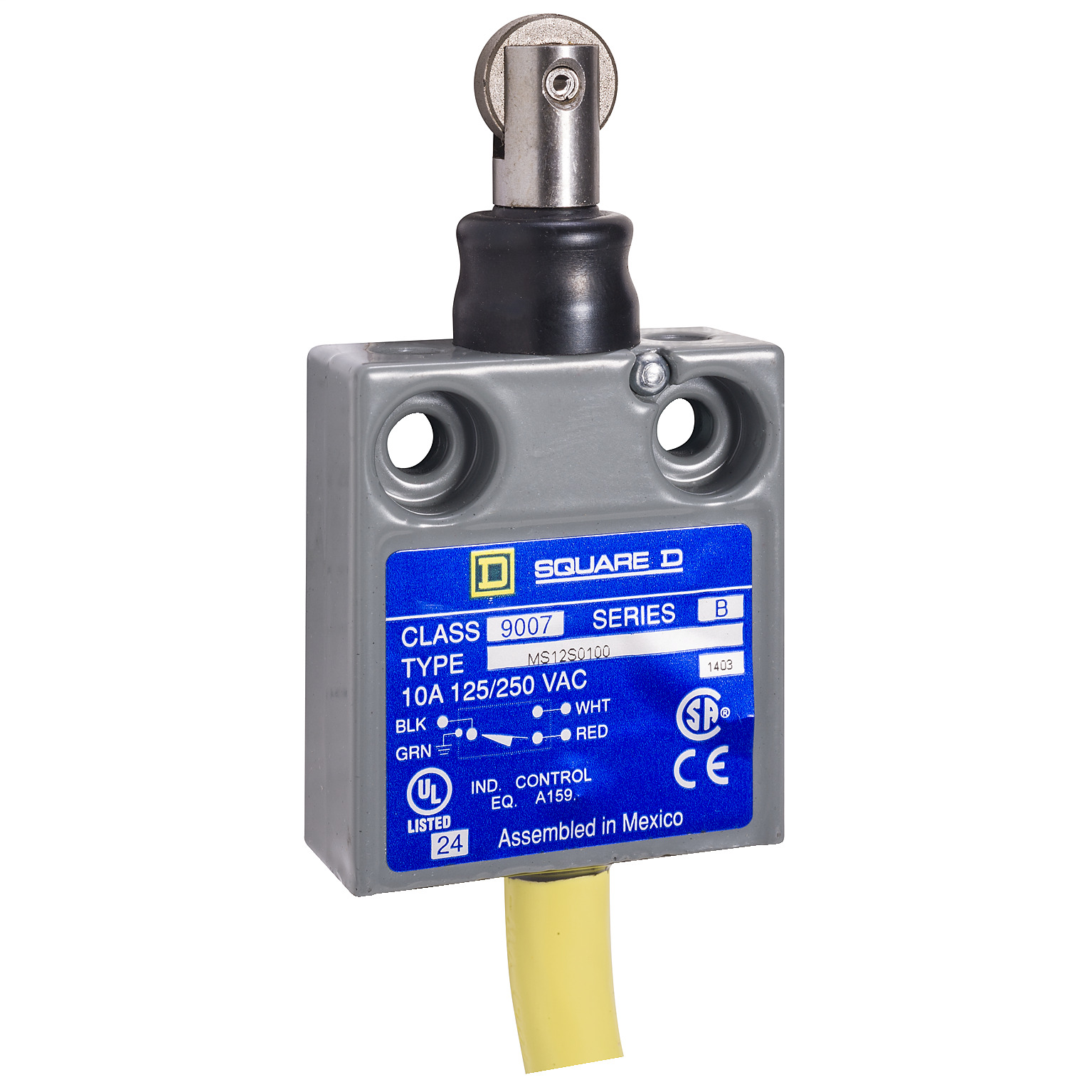

9007MS12S0200 Miniature Potted Limit Switch, 240 VAC/28 VDC, 10 A, Roller Plunger Actuator, 1CO 1 Form C SPDT Contact, 1 Pole

MFR:
Schneider Electric
MFR #:
9007MS12S0200
UPC:
785901761686
Item #:
503905

Availability

Location Available Qty
Available Available to Order

9007MS limit switch - parallel roller plunger - booted - 6' bottom cable

Manuals and Documentation
Catalog Number 9007MS12S0200
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Action BY 30A Degrees CAM,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION
Actuator SPRING RETURN PARALLEL ROLLER PLUNGER STEEL BOOTED
Amperage Rating 10
Application 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD
Connection PRE-WIRED CABLE BOTTOM
Contact Configuration NC-NO
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250
Mounting By The Body
Operating Cycles 100000 CYCLES
Special Features FIXED,METAL
Standard 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CSA-UL-CE,IP67 IEC 60529,LR 25490 CLASS 32 11 03-E78403
UPC 785901761686
GTIN 00785901761686
Item Type LIMIT SWITCH,PLUNGER HEAD
Size 0.62 IN,1.56 IN,1.75-1.75 IN
Operating Temperature -40-220 A Degrees F
Voltage Rating 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC
