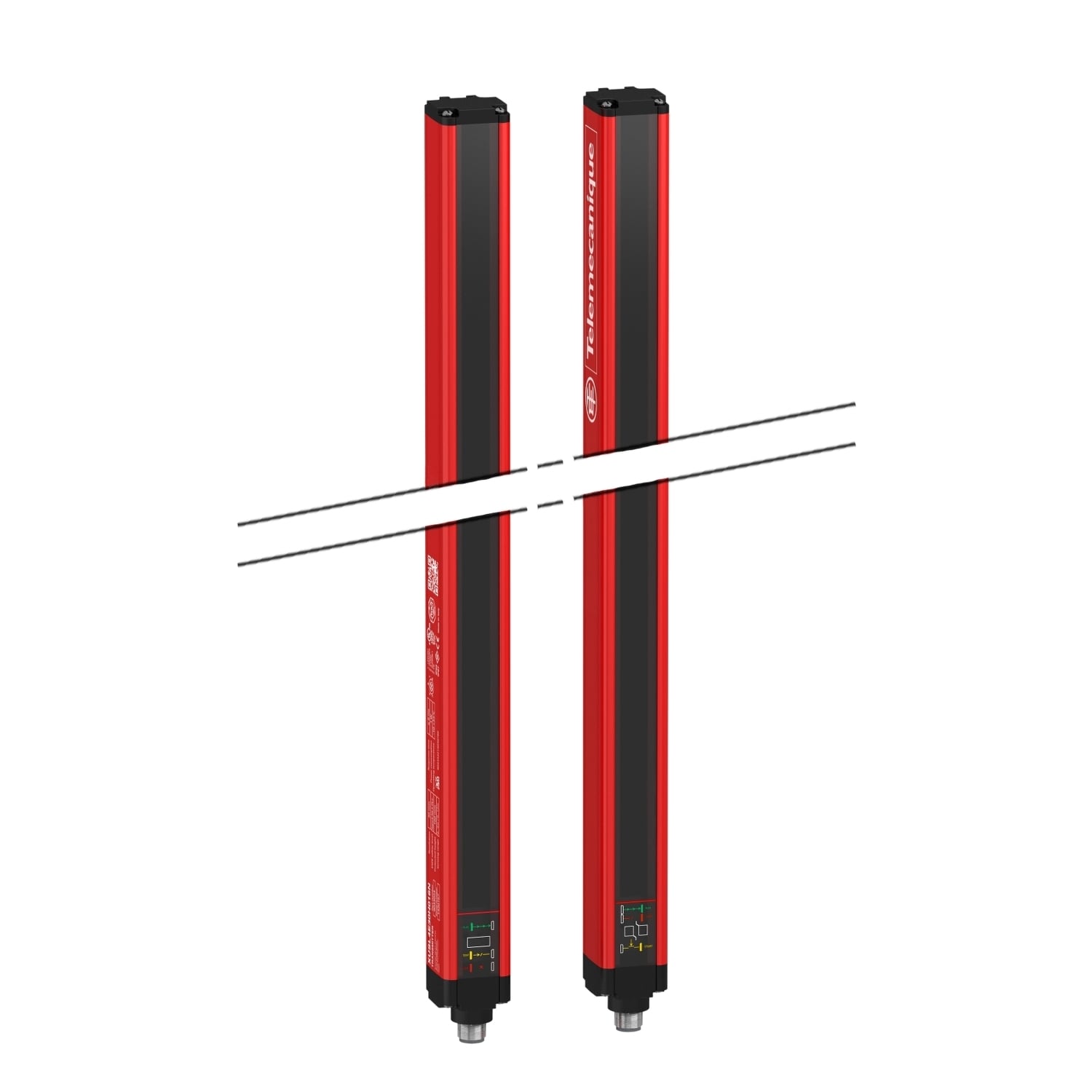

XUSL2E30H091N XUSL Safety Light Curtain Type 2, 35.83 in h protected, 0 to 12/0 to 4 m by Cabling operating, 46 beams
- MFR:
- Telemecanique Sensors
- MFR #:
- XUSL2E30H091N
- Item #:
- 502689
XUSL2E30H091N XUSL Safety Light Curtain Type 2, 35.83 in h protected, 0 to 12/0 to 4 m by Cabling operating, 46 beams
- MFR #:
- XUSL2E30H091N
- Item #:
- 502689
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This XUSL2E Type 2 Safety Light Curtain is designed for hand detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 46 light beams with a protected height of 910mm. Its PFHD reliability data is 5.19 x 108. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 2, performance level PL c, SIL 1 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 2 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -30C to +55C and the sensing distance is 0m to 4m or 0m to 12m selectable by wiring.
Manuals and Documentation
| Catalog Number | XUSL2E30H091N |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | For hand protection |
| Connection | 1 male connector M12 5 pins transmitter;1 male connector M12 8 pins receiver |
| Light Source | IR LED 950 nm |
| Mounting | By Fixing Brackets |
| Power Supply | Power supply IEC 61496-1;power supply IEC 60204-1 |
| Response Time | 13 |
| Special Features | Test;muting through external safety module XPSLCMUT1160;LED display of operating modes and faults |
| Standard | CE |
| Supply Voltage | 24 V DC +/- 20 % |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=388526771&lang=en-us |
| GTIN | 03389119618557 |
| Item Type | Safety light curtain type 2 |
