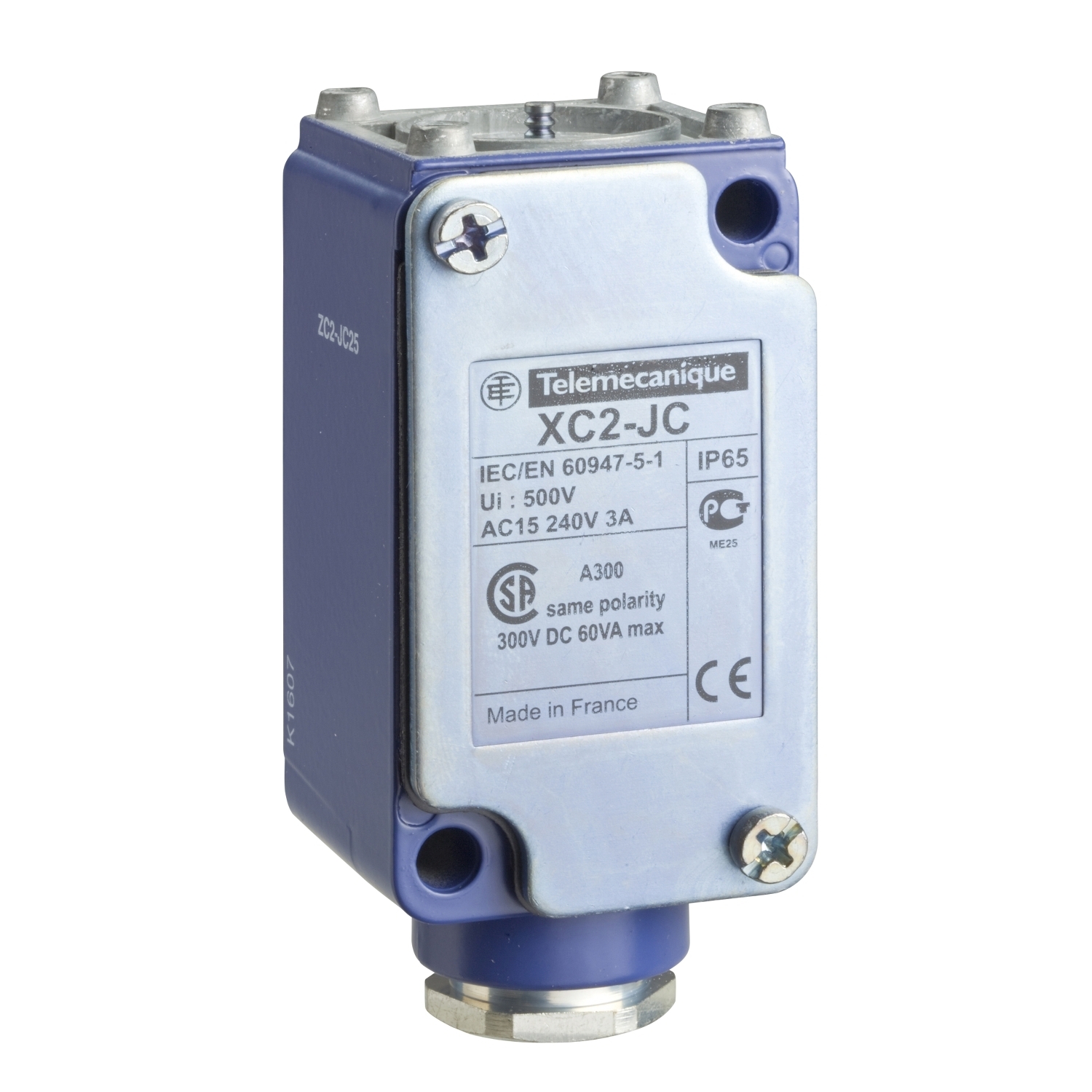

ZC2JC1 OsiSense 1-Pole Fixed Limit Switch Body, 1CO Contact, For Use With XC2J Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP65/IK08 Enclosure
- MFR:
- Telemecanique Sensors
- MFR #:
- ZC2JC1
- UPC:
- 785901266365
- Item #:
- 50234
ZC2JC1 OsiSense 1-Pole Fixed Limit Switch Body, 1CO Contact, For Use With XC2J Standard Format Limit Switch, 3 A at 240 V AC, 0.27 A at 250 V DC Contact, IP65/IK08 Enclosure
- MFR #:
- ZC2JC1
- UPC:
- 785901266365
- Item #:
- 50234
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the XC Special range, an offer of limit switches. This limit switch fixed body is a device that converts a mechanical motion into an electrical control signal. It has 1 change over, snap action contacts without positive opening operation. It has 1 pole with silver plated contacts. It is furnished with screw clamp terminals for electrical connection and 1 tapped entry for PG13.5 cable gland (included). It is an IP65 and IK08 rated product. This switch has a rated operational current of 3A at 240V AC, 0.27A at 250V AC and a conventional enclosed thermal current of 10A. It offers long electrical life with electrical durability of about 5 million operating cycles. The limit switch body is made of metal. Its dimensions are 40mm (Width) x 41mm (Depth) x 81mm (Height) and weighs 0.355kg. It is compatible with XC2J series limit switches. Its associated heads are ZC2JE64, ZC2JE70, ZC2JE03, ZC2JE63, ZC2JE65, ZC2JE05, ZC2JE66, ZC2JE09, ZC2JE61, ZC2JE62, ZC2JE02 and ZC2JE01. Special format limit switches for severe environments.
Manuals and Documentation
| Catalog Number | ZC2JC1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 10 |
| Application | XC2J |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Contact Configuration | 1 C/O |
| Enclosure | IP65 |
| Number of Poles | 1 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IK08,IP65 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=878342&lang=en-us |
| UPC | 785901266365 |
| GTIN | 03389110325331 |
| Item Type | Limit switch body |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -25-70 A Degrees C STANDARD ENVIRONMENT |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
