RAYCHEM

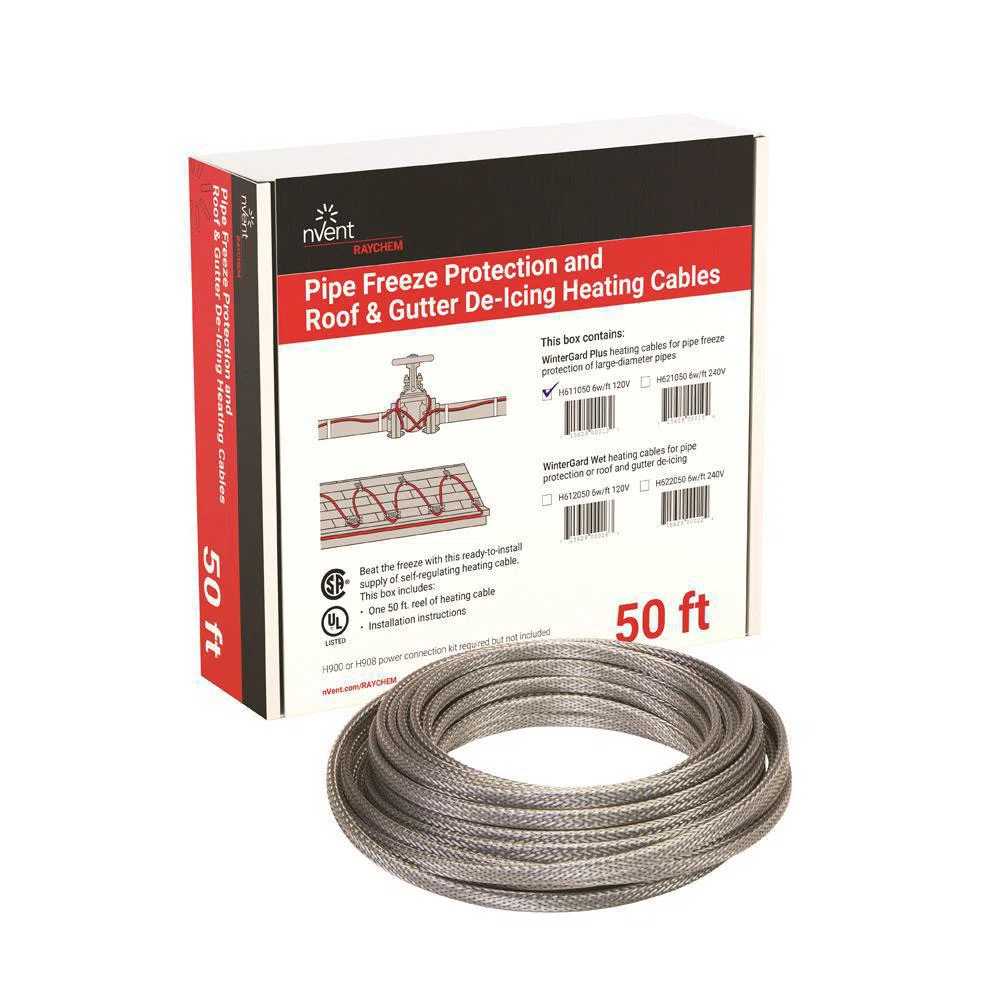

H611050 Wintergard Self-Regulating Heating Cable, (2 None) Conductors, 120 V AC, 2.5 A

MFR:
Chemelex
MFR #:
H611050
UPC:
715629000132
Item #:
5002

Availability

Location Available Qty
Available Available to Order
$359.41 each

Raychem WinterGard Plus heat trace cable is a professional-grade, 6-watt/foot, self-regulating electric heating cable that is designed for pipe freeze protection in light commercial and residential locations. The heat trace cable is constructed of nickel-copper bus wires, a self-regulating conductive core, an insulating jacket and a tinned-copper braid.

Manuals and Documentation

Features

  • Tinned copper braid material
  • Simple to design
  • Cut to length easy to install, meter marks
  • Self regulating cable energy efficient and safe, advanced energy saving controls, no overheating possible
  • Reliable during long life
  • Maintenance free
  • 14 AWG braid wire gauge equivalent
  • 0.18 in nominal cable thickness
  • Cable can be overlapped without burning itself out
  • Provides pipe freeze protection for pipes up to 6 in diameter
Manufacturer Part Number H611050
Brand RAYCHEM
Manufacturer Chemelex
UPC 715629000132
Country Of Origin US
Amperage Rating 2.5 A
Color Gray
Conductor Size 16 AWG
Jacket Material Polyolefin
Number Of Conductors 2
Series Wintergard
Temperature Rating 150 deg F
Voltage Rating 120 V AC
Wattage 6 W
Alternative Part Number H611-050 | 487817-000
Manufacturer Item Status Active
Country USA/Canada
Warranty 2 Years
Standards Approvals CSA Certified LR21133 | UL System Listed 718K Pipe Heating Cable
Application For Water Pipes in Dry Areas, Building and Construction, Use in Non-Hazardous Areas
Conductor Material Nickel-Plated Copper
Core Self-Regulating Conductive
Nema Color Black
