Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection, M12
MFR: Telemecanique Sensors
MFR #: ZCMD21C12
UPC: 785901630388
Item #: 49970
Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action, connection, M12
MFR #: ZCMD21C12
UPC: 785901630388
Item #: 49970
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$99.83
each

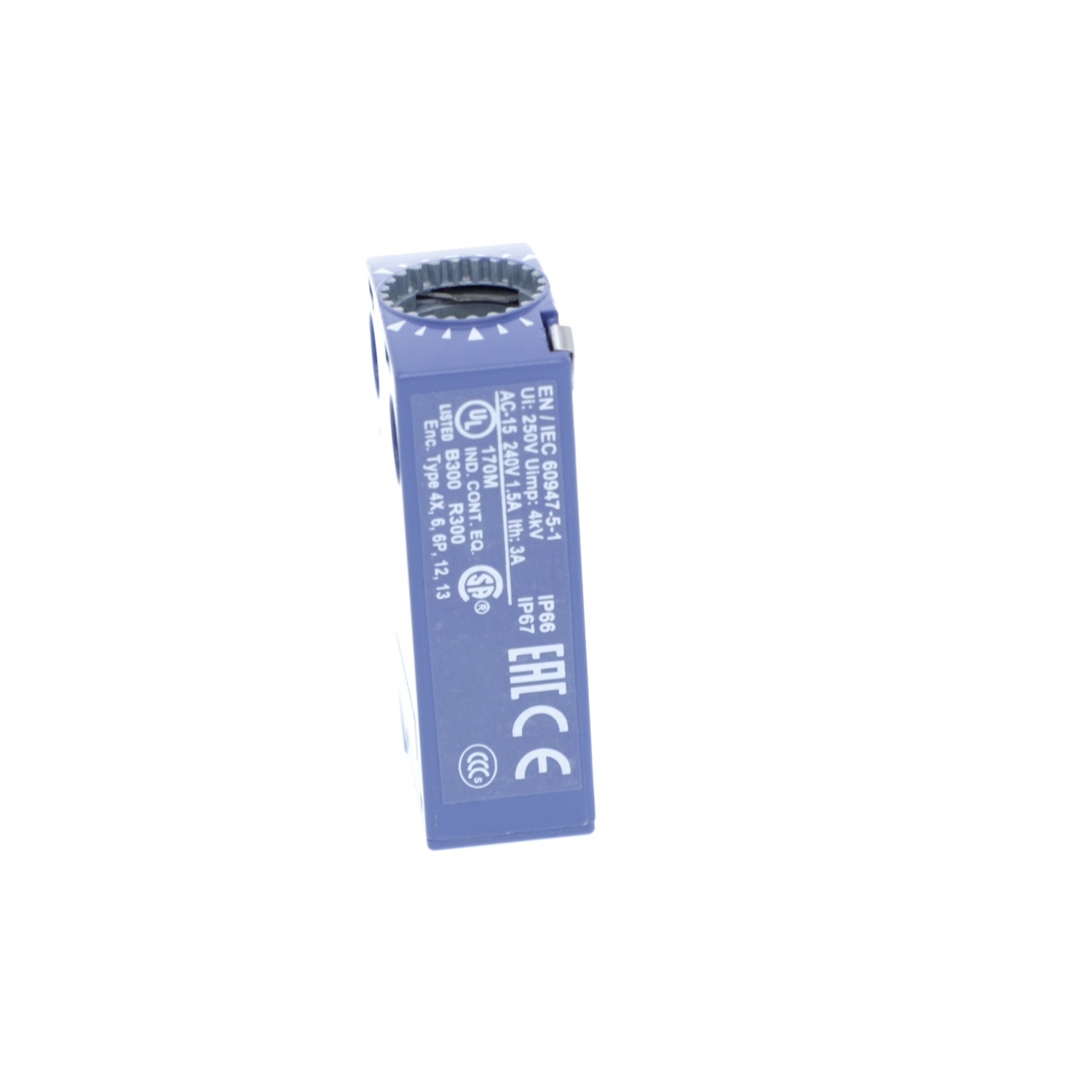

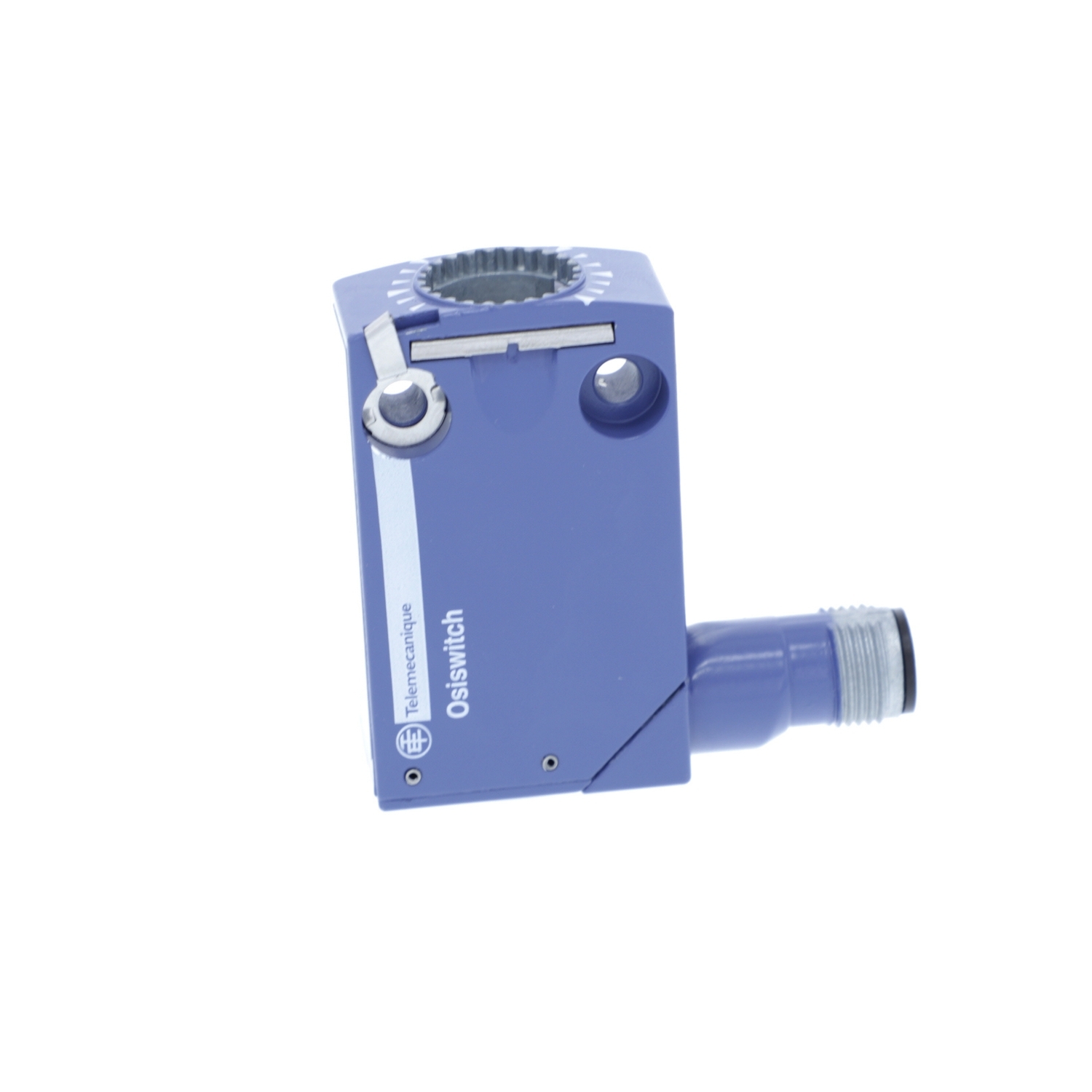

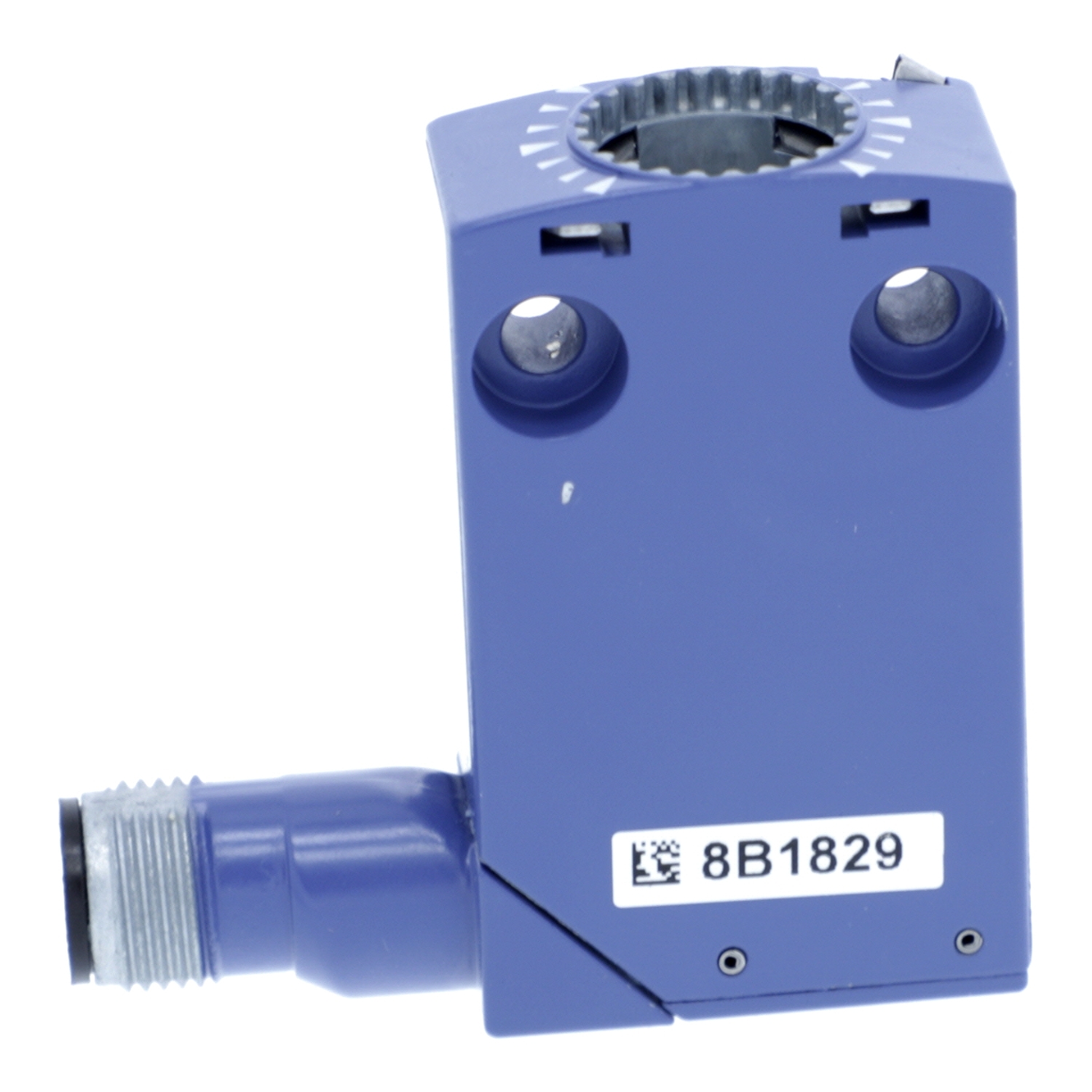

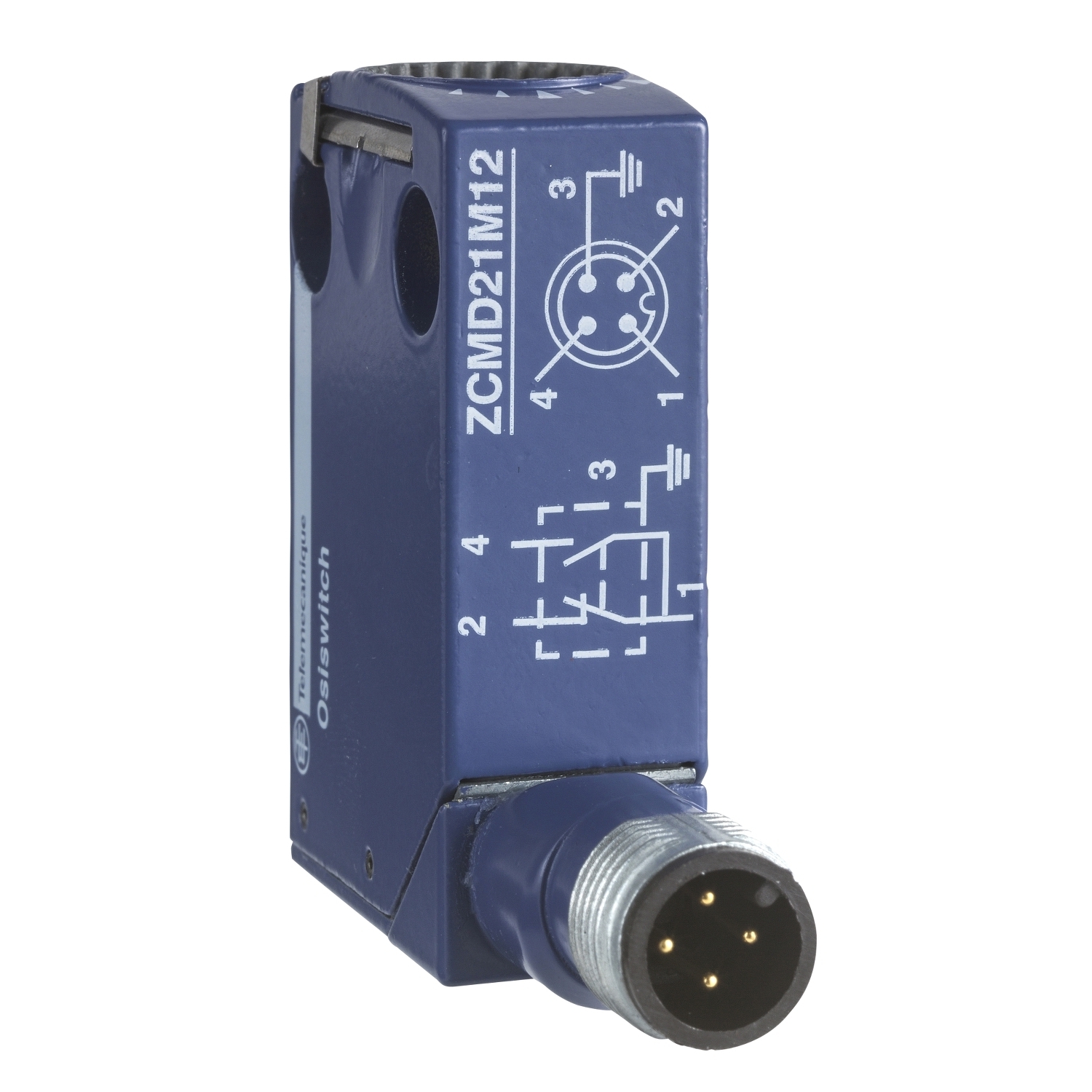

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M12 5-pin connector. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals and Documentation
- Catalog Number
- ZCMD21C12
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Sub Brand
- ZCMD
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- Action
- Snap action
- Amperage Rating
- 4
- Application
- XCMD
- Connection
- Male connector M12, 5 pins
- Contact Configuration
- 1 NC + 1 NO
- Number of Poles
- 2
- Operating Cycles
- 5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
- Special Features
- FIXED
- Standard
- IEC, UL LISTED, CSA
- UPC
- 785901630388
- GTIN
- 03389110299120
- Item Type
- Limit switch body
- Size
- 16 MM,30 MM,50-50 MM
- Voltage Rating
- 0.22 A 50 V, DC-13 EN/IEC 60947-5-1 APPENDIX A-3 A 50 V, AC-15 EN/IEC 60947-5-1 APPENDIX A
