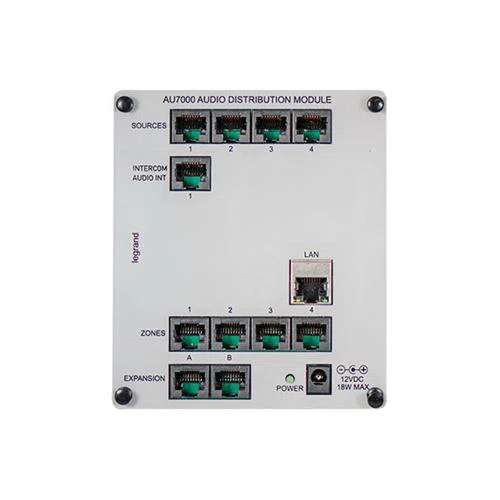

The Audio Distribution Module is used to connect up to four sources to the On-Q® Digital audio System and distribute those sources to four zone outputs. It can be expanded to accommodate up to sixteen sources and sixteen zones. Inputs such as the Digital audio Input Module, Digital audio Global Source Input Module and Digital audio Local Source Input Module can be used with the AU7000. The AU7000 is setup and controlled by the Legrand® Digital audio app, available for iOS and android devices or through the Digital audio Amplified Keypads.
Manuals and Documentation
Features
- Distributes audio to 4-zones
- Accommodates up to 4 analog or digital audio sources
- Configured by the Legrand® digital audio application
- Digital audio app includes "Top 10" feature for easy access to preset listening choices
- Built-in access to streaming services including, Spotify, iHeartRadio, Pandora, Napster, SiriusXM and TuneIn
- Six, one for Ethernet, one for QLink, four for source inputs input plug type
- Double bay footprint
| Manufacturer Part Number | AU7000 |
| Brand | On-Q® |
| Manufacturer | Legrand |
| UPC | 804428120469 |
| Country Of Origin | CN |
| Color | Gray |
| Dimensions | 6-5/8 in L x 6 in W x 6-5/8 in H |
| Material | Metal/Plastic |
| Voltage Rating | 12 V DC |
| Alternative Part Number | 13610919 |
| Manufacturer Item Status | Active |
| Country | USA |
| Plug Type | RJ45 Connector |
