Telemecanique

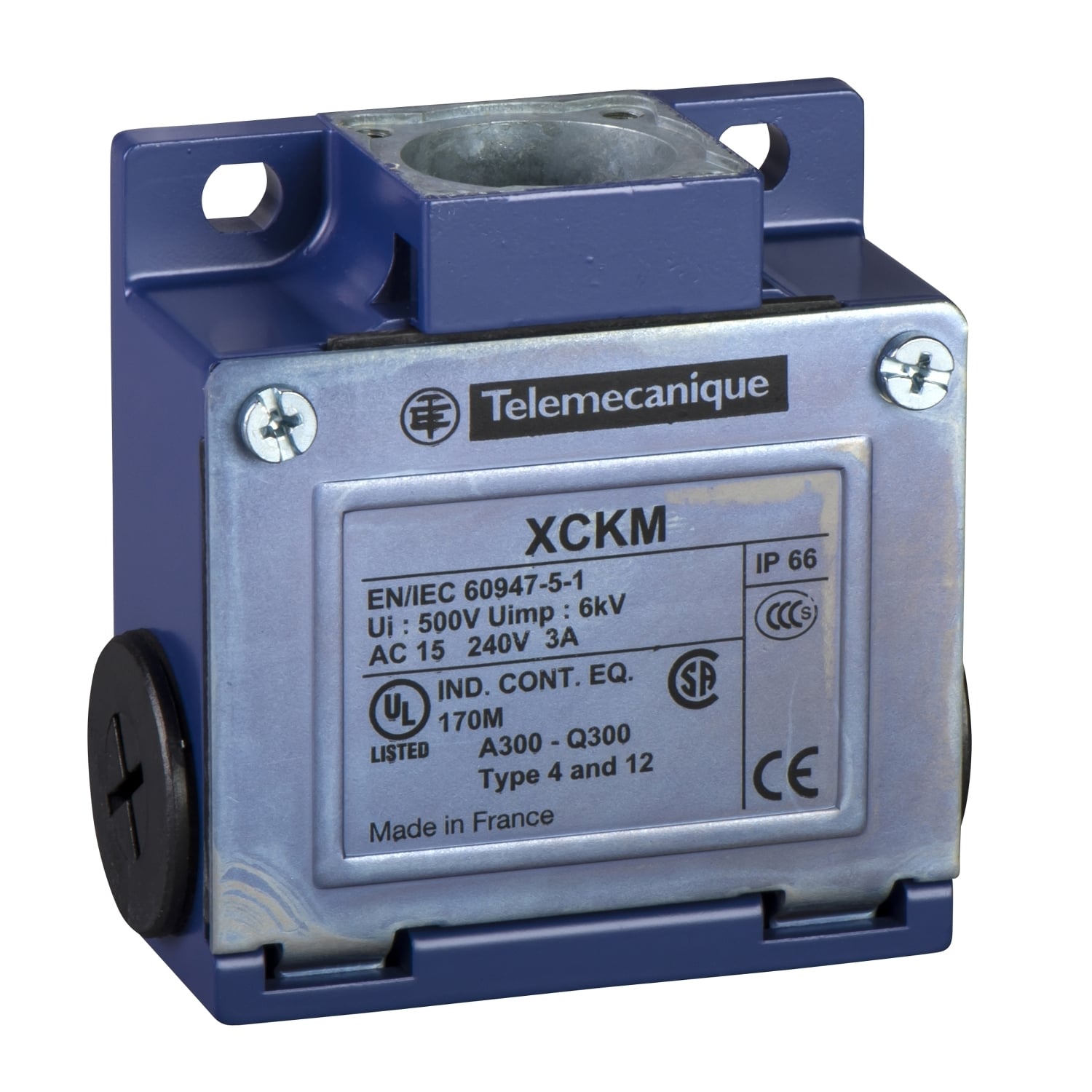

ZCKM5 OsiSense XC Fixed Limit Switch Body, 1NO-1NC Contact, For Use With XCKM, ZCKM and ZCKM Series Standard Format Compact Limit Switch, 3 A at 240 V AC/0.27 A at 250 V AC Contact, IP66 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKM5
UPC:
785901734444
Item #:
497605

Availability

Location Available Qty
Available Available to Order
$139.39 each

This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and multiple Pg 11 cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKM5
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break, break before make
Amperage Rating 10
Application XCKM
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK05,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=7054435&lang=en-us
UPC 785901734444
GTIN 03389110646634
Item Type Limit switch body
Size 1.18
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
