Intermatic®

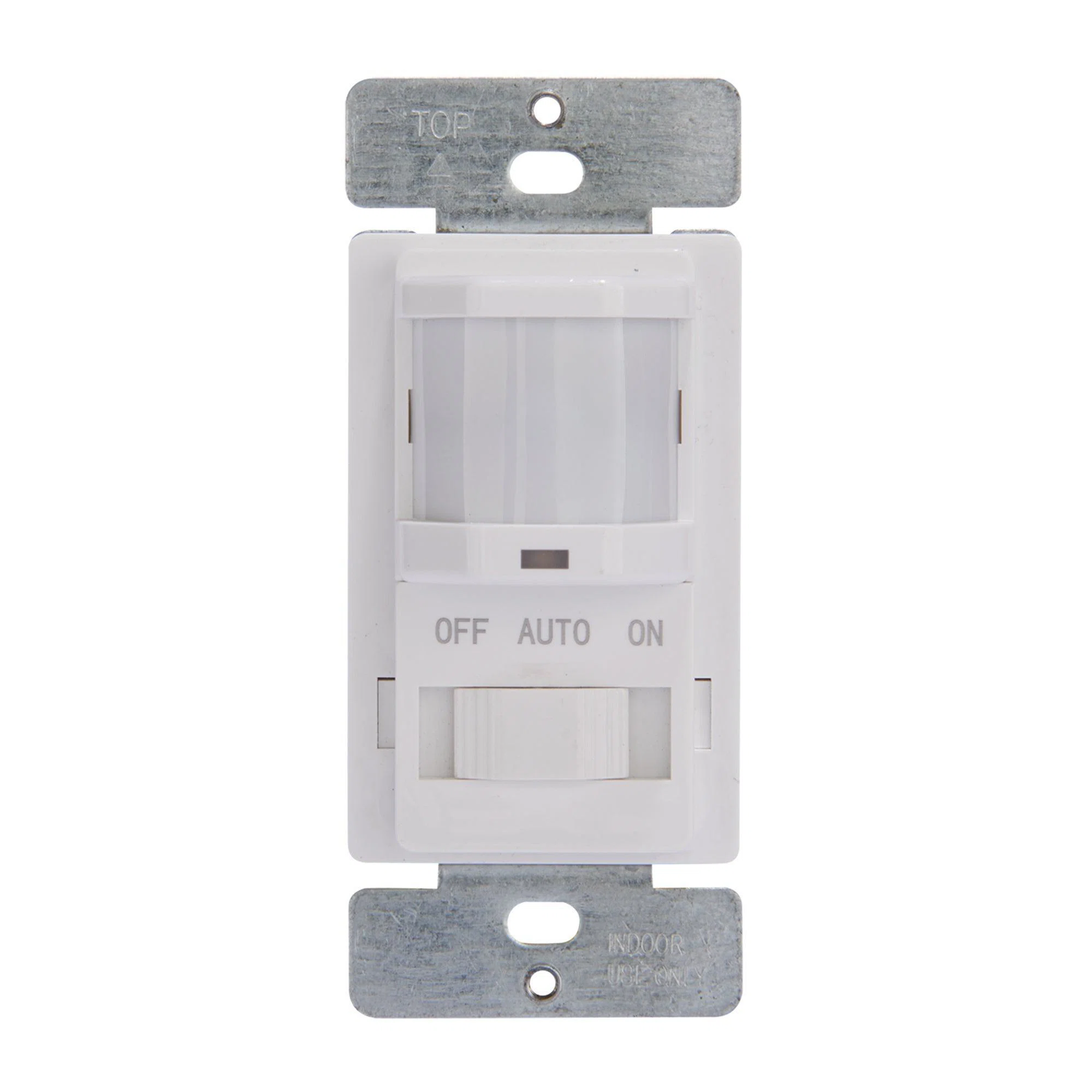

IOS-DSIF-WH Electronic Line Voltage Magnetic Occupancy Sensor Switch With Manual Override, 120 V AC, Passive Infrared Sensor, 980 sq-ft Coverage, 150 deg Viewing, Wall Mount

MFR:
Intermatic
MFR #:
IOS-DSIF-WH
UPC:
078275125230
Item #:
49649

Availability

Location Available Qty
Available Available to Order
$28.07 each

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.

Manuals and Documentation

Features

  • Passive Infrared (PIR) sensing for presence detection
  • Adjustable PIR sensitivity
  • Adjustable ambient light sensor override
  • Coverage - 150, 980 ft2 with non-obstructed views
  • IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
Manufacturer Part Number IOS-DSIF-WH
Brand Intermatic®
Manufacturer Intermatic
UPC 078275125230
Country Of Origin CN
Color White
Dimensions 2.56 in H x 1.31 in W x 2.19 in D
Lamp Type CFL/Fluorescent/Incandescent/LED
Mounting Type Wall
Temperature Rating 32 to 131 deg F
Type Electronic Line Voltage Magnetic
Voltage Rating 120 V AC
Alternative Part Number 11113613
Manufacturer Item Status Active
Country USA/Canada
Warranty 2 Years Limited
Standards Approvals UL/cUL Listed, cULus Listed, California Title 24 Compliant
Application Laundry Room, Closets, Kitchen, Home Office and Bathrooms Applications
Includes Standard Decorator Wallplate
Control Output ON/OFF
Coverage 980 sq-ft
Power Rating 1/8
Response Frequency 60 Hz
Sensor Type Passive Infrared
Time Delay 15 s to 30 min
Viewing Angle 150 deg
