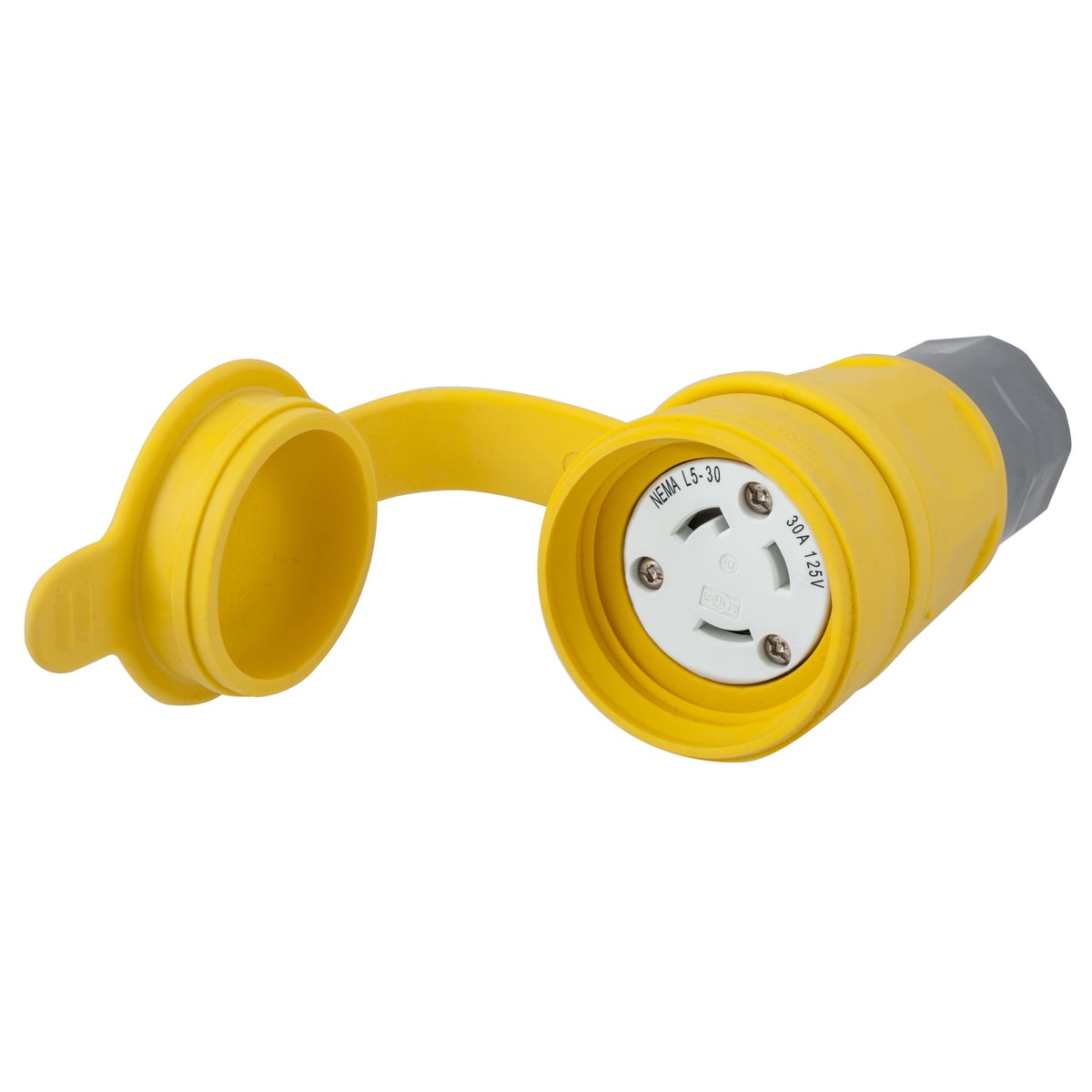

HBL29W47 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 125 V AC, 30 A, 2 Poles, 3 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL29W47
- UPC:
- 783585131504
- Item #:
- 495720
HBL29W47 Female Grounding Insulated Standard Cord Mount Watertight Locking Connector, 125 V AC, 30 A, 2 Poles, 3 Wires, Yellow
- MFR #:
- HBL29W47
- UPC:
- 783585131504
- Item #:
- 495720
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$181.40
each
Manuals and Documentation
| Catalog Number | HBL29W47 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Industrial/Commercial |
| Color | Yellow |
| Conductor Range | #14AWG to #10AWG |
| Connection | Terminal Screws |
| Insulation | Insulated Body |
| Material | Elastomer/Composite |
| Mounting | Cord |
| NEMA Rating | 5 |
| Number of Conductors | 3-Wire Grounding |
| Number of Poles | 2 |
| Special Features | Watertight |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| UPC | 783585131504 |
| GTIN | 00783585131504 |
| Item Type | Connector Body |
| Size | 2.77 in x 2.77 in x 5.67 in |
| Environmental Conditions | Water Tight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
