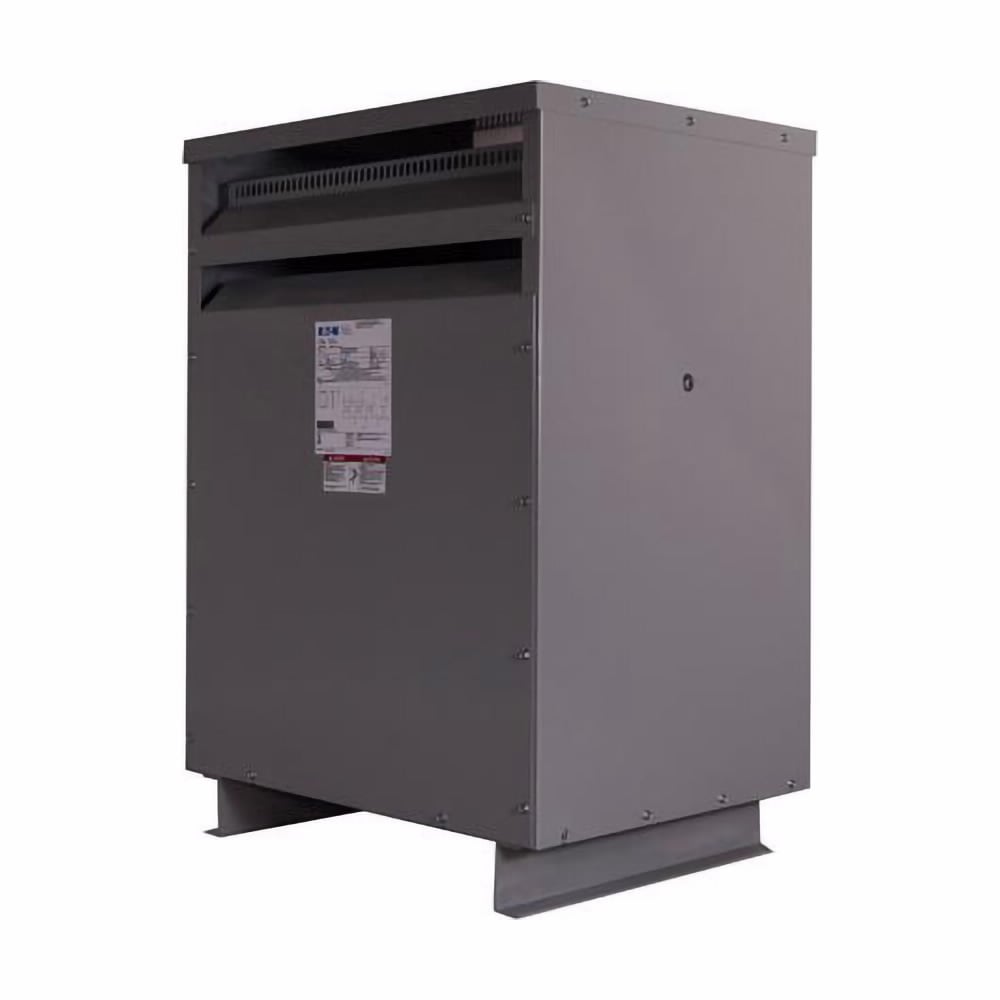

T20P11S2516 Type DS-3 Dry Energy Efficient Ventilated Distribution Transformer, 240/480 VAC Primary, 120Y/240 V AC Secondary, 25 kVA Power Rating, 60 Hz, 1 Phase
- MFR:
- Eaton
- MFR #:
- T20P11S2516
- UPC:
- 786680147623
- Item #:
- 494891
T20P11S2516 Type DS-3 Dry Energy Efficient Ventilated Distribution Transformer, 240/480 VAC Primary, 120Y/240 V AC Secondary, 25 kVA Power Rating, 60 Hz, 1 Phase
- MFR #:
- T20P11S2516
- UPC:
- 786680147623
- Item #:
- 494891
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$7,264.98
each
Eaton types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.
Manuals and Documentation
| Catalog Number | T20P11S2516 |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Frequency Rating | 60 Hz |
| Insulation Class | 220 Degrees C |
| Mounting | Wall |
| Phase | 1 |
| Primary Voltage | 240 V, 480 V |
| Secondary Voltage | 120Y/240 V |
| Special Features | Fungus-resistent varnished core and coil |
| Standard | UL Listed,DOE2016 Efficient |
| UPC | 786680147623 |
| GTIN | 00786680147623 |
| Item Type | Ventilated transformer |
| Temperature Rating | 150 Degrees C rise |
