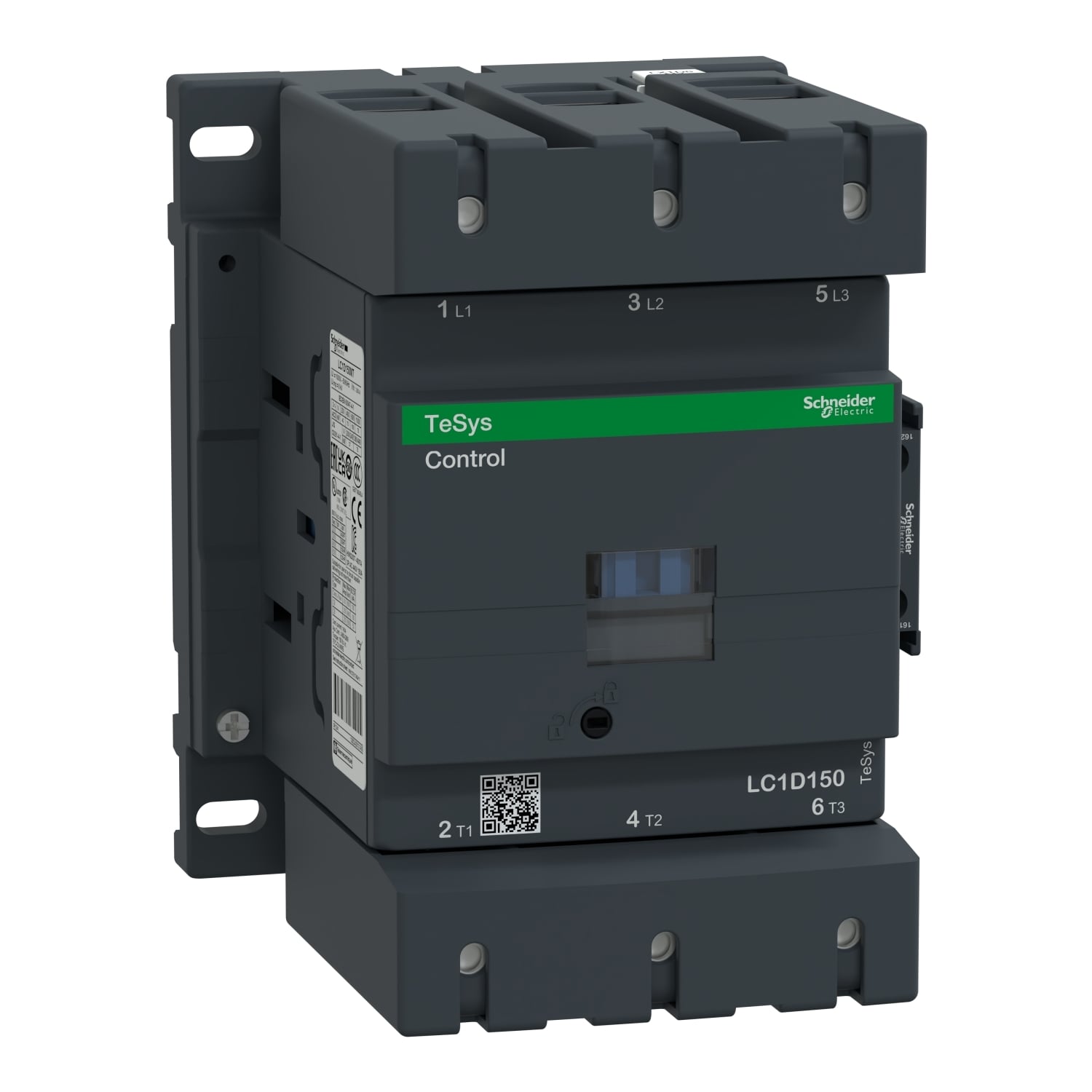

LC1D150Q7 TeSys D Contactor With Front Cover, 380 V AC V Coil, 150/200 A, 1NO-1NC/3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D150Q7
- Item #:
- 49376
LC1D150Q7 TeSys D Contactor With Front Cover, 380 V AC V Coil, 150/200 A, 1NO-1NC/3NO Contact, 3 Poles
- MFR #:
- LC1D150Q7
- Item #:
- 49376
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). They can be used to create motor starters for almost any type of application. It provides a 380V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), 2 inputs screw connectors for power connection and screw clamp terminals for control. For operating rates until 1200 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with up to a 600VAC 300A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 380 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D150Q7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 380 V AC 50/60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end;power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end;power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end;power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end;power circuit: connector 2 10-50 mm² - cable |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=614048&lang=en-us |
| GTIN | 03389110477658 |
| Item Type | Contactor |
